Tensometric beam NA27 1kg (10N)

Index: SES-03097 EAN: 5904422359300

Strain-gauge beam operating in the range of up to 1 kg (approx. 10 N). The smallest version is used, for example, in kitchen scales, portable scales. The connecting cable has tips with the removed insulation, and its length is 25 cm.

Tensometric beam NA27 1kg (10N)
€9.00
€7.32 tax excl.
Waiting time: 4-6 weeks
Temporarily unavailable
PayPal payment
Manufacturer: OEM

Specification

  • Operating voltage: from 5 V to 12 V
  • Measuring range: 1 kg (approx. 10 N)
  • Output: analog signal
  • Case: NA27 - aluminum
  • Cable: 4-vain, φ0,8, the length of 25 cm
  • Dimensions: 80 x 13 x 13 mm
  • Weight: 28 g



More details in thedocumentation.



Description

Strain-gauge beam operating in the range of up to 1 kg (approx. 10 N). The smallest version is used, for example, in kitchen scales, portable scales. The connecting cable has tips with the removed insulation, and its length is 25 cm.

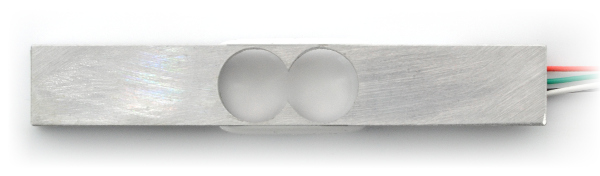

Belka tensometryczna NA27 1kg

Connection:

  • Red cable: input voltage, positive pole (+)
  • Black wire: input voltage negative pole (-)
  • Green wire: output signal +
  • White wire: output signal -



Check how to connect the beam with the Arduino!



Package width 6 cm
Package height 12 cm
Package depth 1.4 cm
Package weight 0.029 kg
