HX711 - amplifier for tensometers

Index: DNG-12479 EAN: 5904422319366
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com

Operational amplifier is designed to handle strain beams. The system is supplied with the voltage from 2.6 V to 5.5 V, communicates via a two-wire bus: the data line and a clock line.

€1.55
€1.26 tax excl.

In stock, shipping 24 hours!
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: OEM

Description

Operational amplifier is designed to handle strain beams. The system is supplied with the voltage from 2.6 V to 5.5 V, communicates via a two-wire bus: the data line and a clock line.



Connection

The strain beams are supported through the so-called Wheatstone bridge, i.e. wires connected in the following way:

  • E+ (Excitation+)- positive excitation or VCC (power supply)
  • E- (Excitation-) - negative excitation or GND (ground)
  • A- / A+ -- positive strengthening, a positive signal or a positive output
  • B- / B+- the negative strengthening, the negative signal or a negative output





For communication with the microcontroller, e.g. Arduino, the system uses two lines: CLK and DAT.



Pin Description
VCC The supply voltage is from 2.6 V to 5.5 V.
DAT Data line of the communication bus.
CLK Clock line of the communication bus.
GND The ground of the system.

E+
E-

A-

A+

B-

B+

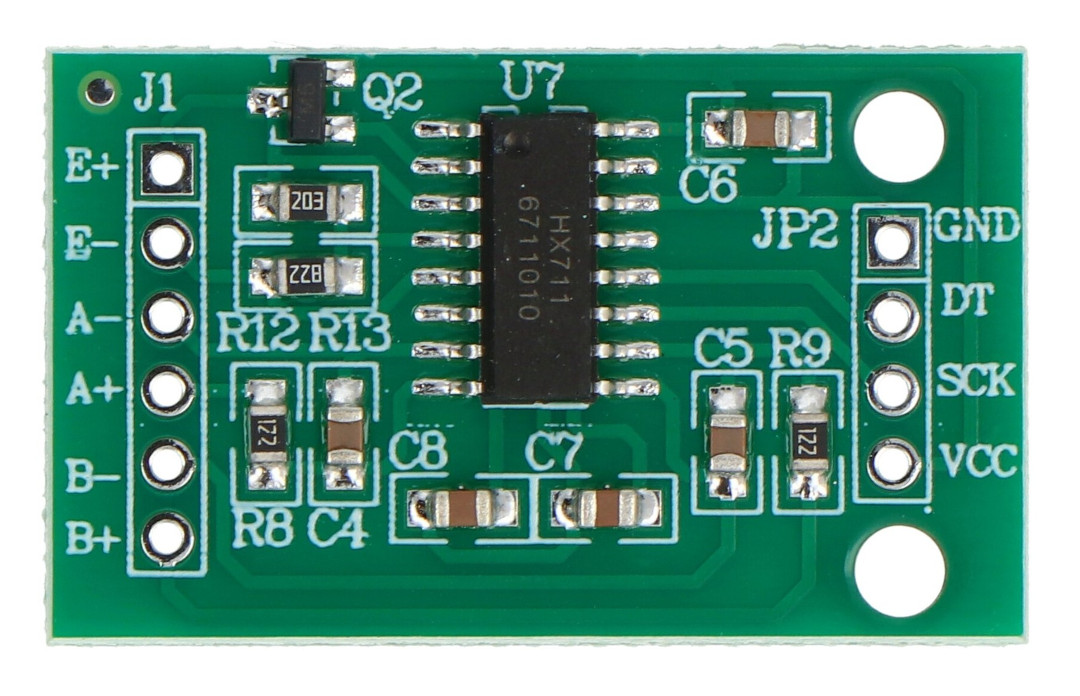

Line to connect the strain-gauge beam. The description is above the picture.



The product is compatible with Arduino



Specification

  • Supply voltage: 2.6 V to 5.5 V
  • Number of channels: 2
  • ADC converter: 24-bit
  • Preamplifier: low noise 32 / 64 / 128
  • Updated frequency: 10 Hz / 80 Hz

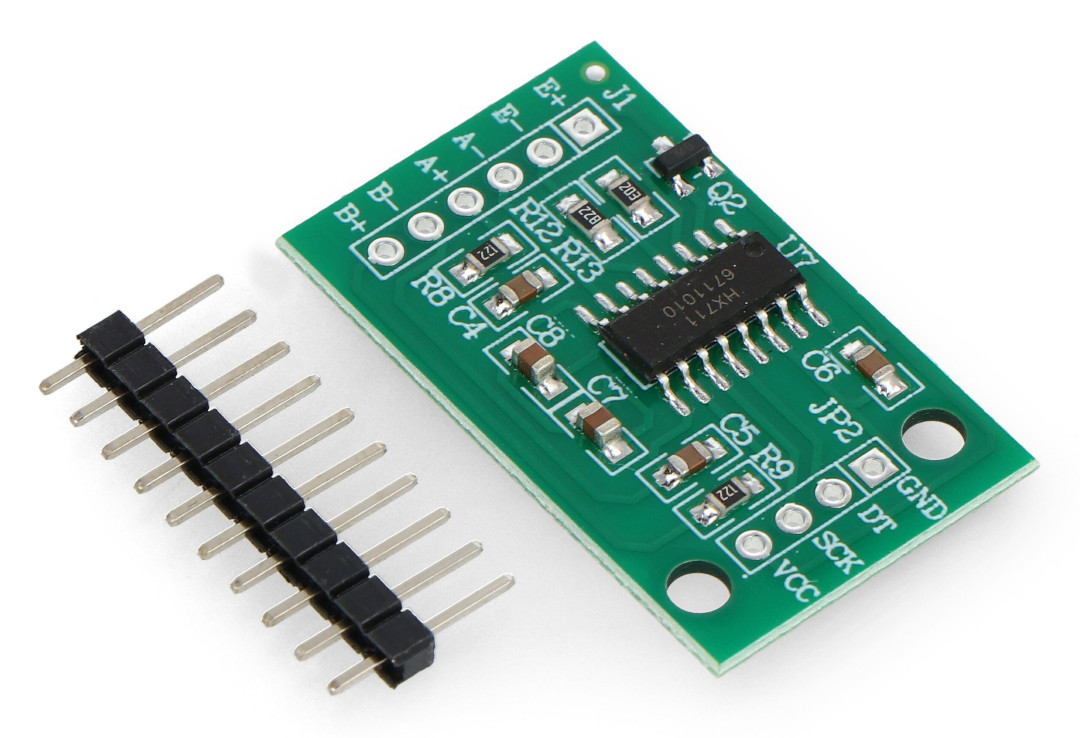

  • Pins:openingsfor goldpin connectors - 2.54 mm(strap included)
  • Operating temperature: -20 °C to 85 °C
  • Module dimensions: 33 x 20 mm
