Product description: Pressure sensor - 10 kg round 7.5 mm - Joy-IT SEN-Pressure10
The SEN-Pressure10 is a thin-film force sensor operating on the variable resistance principle . When pressure is applied, the resistance of the sensing material changes, which causes a voltage change at the analog output. This solution allows for easy monitoring of pressure levels from 0 kg to 10 kg using a microcontroller. The sensor features a flexible design , less than 0.25 mm thick , and compact dimensions of 75 x 20 x 9 mm. The 7.5 mm diameter sensing field enables precise pressure detection even in small electronics projects. Thanks to its thinness, the sensor can be integrated into curved surfaces, control panels, robotic components, and wearable devices. The module is characterized by high sensitivity, immunity to electromagnetic interference, and a long service life of approximately 1 million measurement cycles. A waterproof protective layer increases the sensor's durability when operating in harsh environmental conditions.

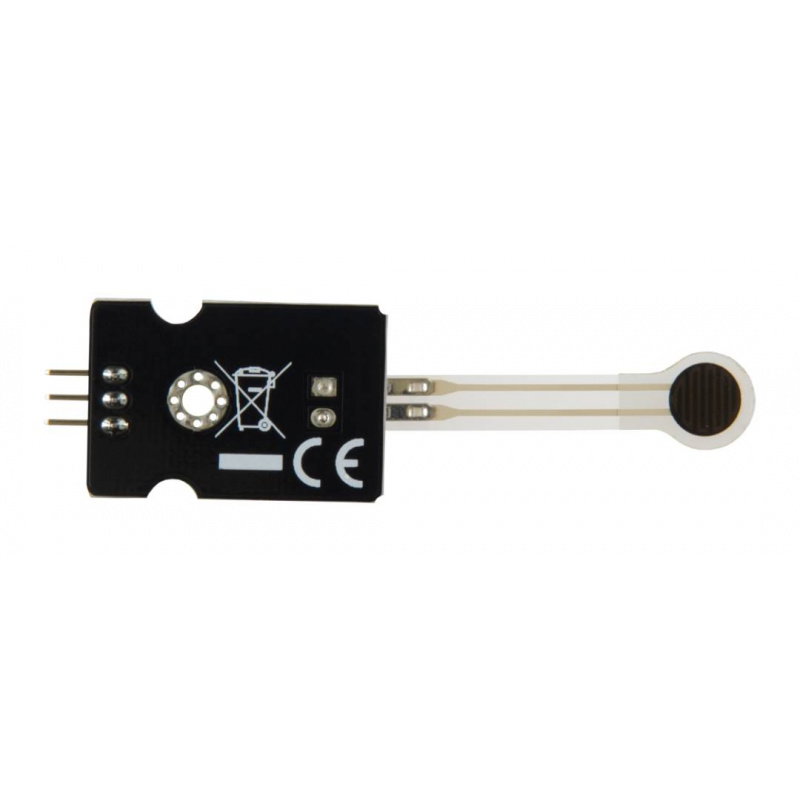

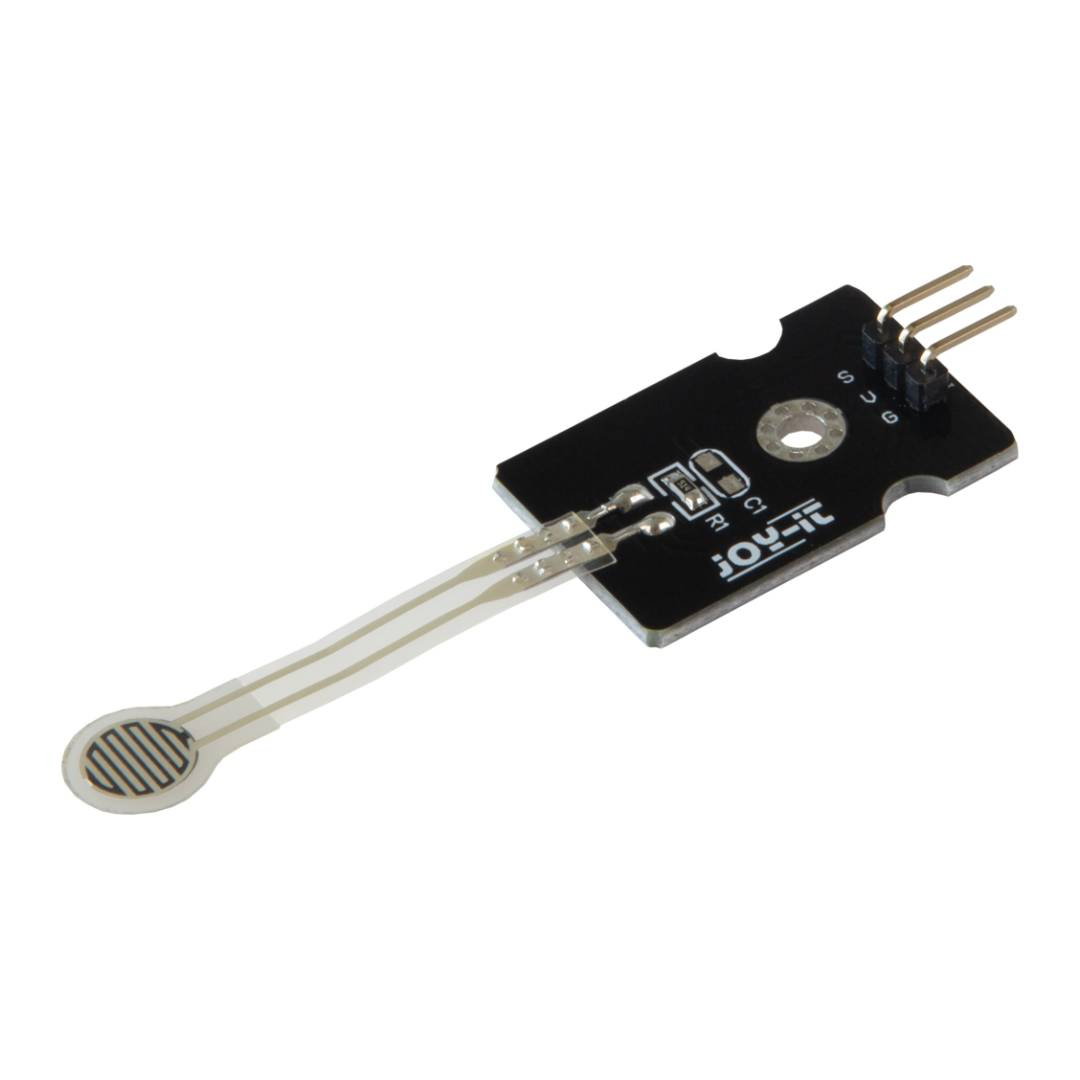

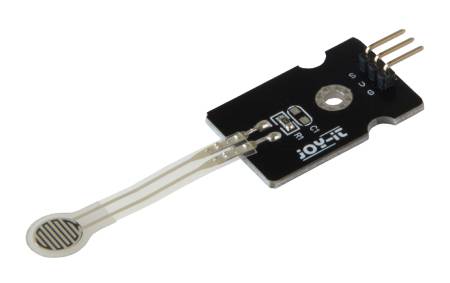

Pressure sensor - 10 kg round 7.5 mm - Joy-IT SEN-Pressure10.

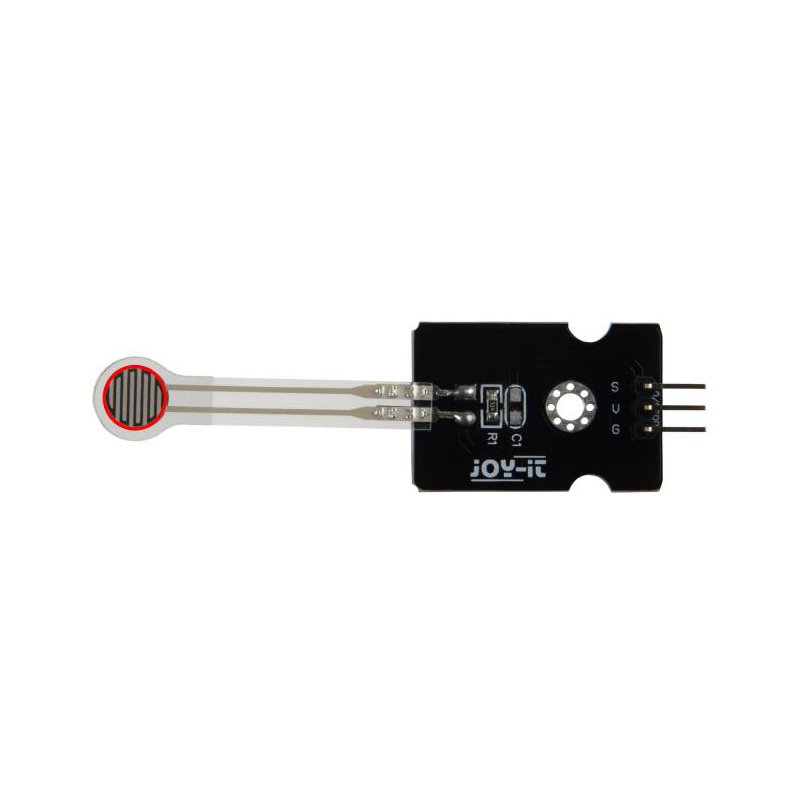

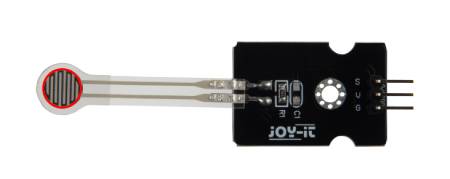

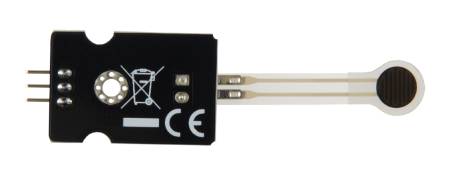

The measuring part (marked in red) is 7.5 mm in diameter.
Main features of the sensor
- Measuring range from 0 kg to 10 kg : possibility of measuring pressure and load in a wide range
- Analog voltage output : easy data reading by microcontrollers and ADC modules
- High measurement sensitivity : quick response to pressure changes
- Flexible design : can be installed in non-standard designs and mobile devices
- Waterproof sensor surface : greater resistance to environmental conditions
- No electrostatic or magnetic interference : stable operation in various applications
- Fast response time of less than 1 ms : quick detection of pressure changes
- High durability : lifespan up to approximately 1,000,000 measurements
Pinouts and connection method of the pressure sensor
The SEN-Pressure10 sensor features three pins for quick connection to microprocessor systems. The "+" pin powers the module with a voltage between 3.3V and 5V, the "I" pin provides ground, and the "S" pin provides an analog measurement signal based on pressure level. The sensor can be connected directly to the analog inputs of an Arduino or other compatible microcontrollers. An ADC is required for the Raspberry Pi, as the platform lacks native analog inputs.

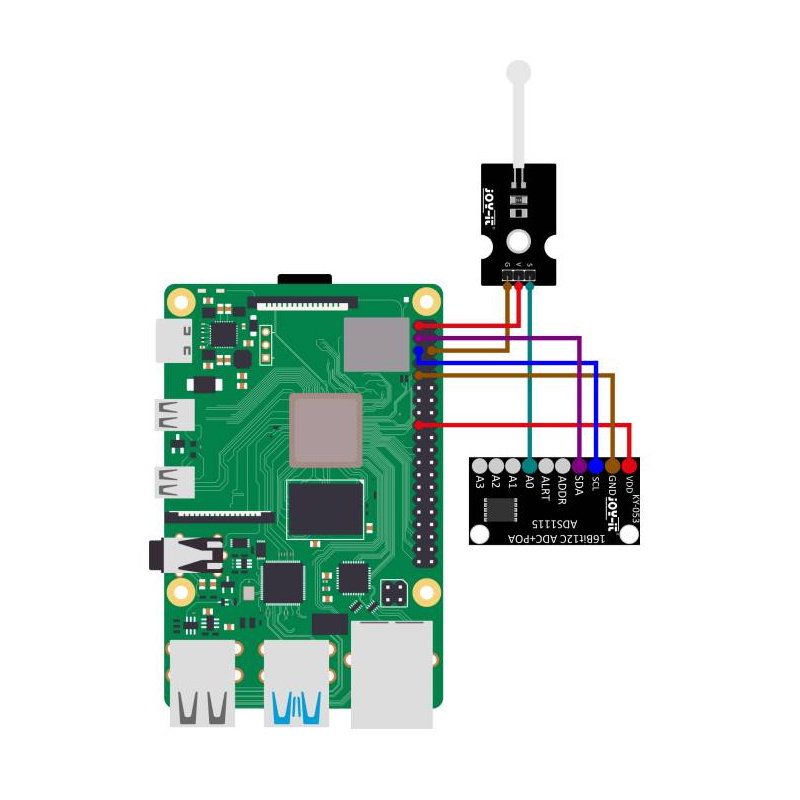

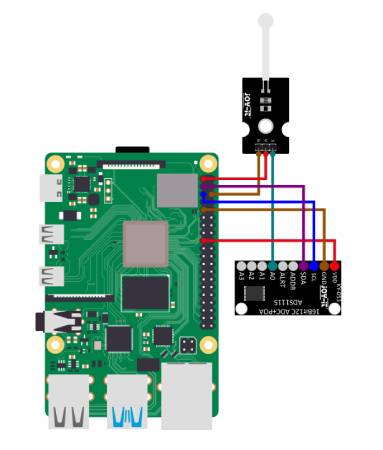

Raspberry Pi does not have analog inputs, so it is necessary to use an analog-to-digital converter.

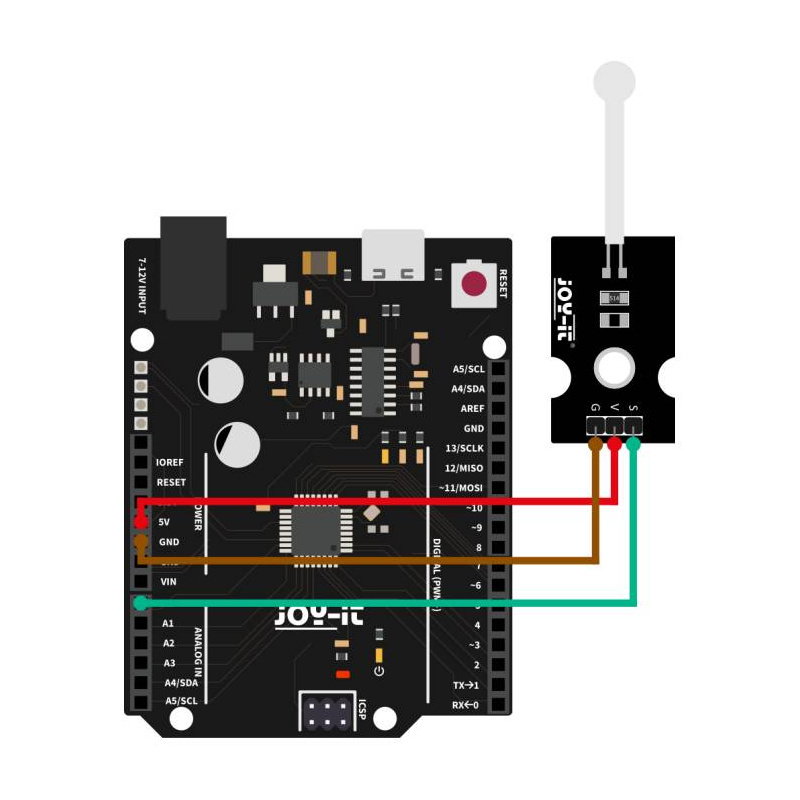

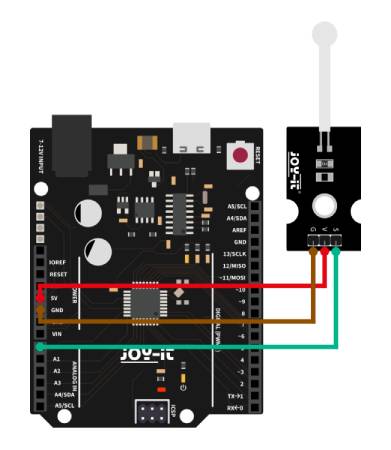

In the case of Arduino, the sensor can be connected directly to the analog input.
Sensor Compatibility and Programming
The SEN-Pressure10 is compatible with popular programming environments used in embedded and IoT projects. The module can be operated using the Arduino IDE, Python libraries for Raspberry Pi, CircuitPython, and MicroPython . The manufacturer provides sample programs for measuring voltage and calculating changes in sensor resistance based on analog data. Thanks to the simple analog interface , you can create your own pressure detection systems, intelligent buttons, touchscreen interfaces, or load monitoring systems . The sensor is suitable for both educational projects and advanced robotic and industrial automation solutions.
Sensor technical specifications
- Measuring range: 0 kg to 10 kg
- Output type: analog voltage
- Operating voltage: 3.3 V to 5 V
- Pressure actuation point: 200g to 250g
- Measurement accuracy: ±2.5%
- Response time: less than 1 ms
- Recovery time: less than 15 ms
- Thickness of the measuring layer: less than 0.25 mm
- Measuring surface diameter: 7.5 mm
- Operating temperature: -20°C to 60°C
- Durability: approximately 1,000,000 measurements
- Compatibility: Arduino, Raspberry Pi, ESP32 and other platforms
- Waterproof: yes
- Dimensions: 75 x 20 x 9 mm
Contents of the set
- 1x SEN-Pressure10 Pressure Sensor
The sensor will be useful in robotic projects, touch interfaces, security systems, intelligent pressure mats and IoT solutions requiring fast and precise pressure detection.
