Stretch sensor - conductive rubber sheet - 200x200x0,5mm - Adafruit 5464

Index: ADA-21826
Tensile sensor in the form of a rubber sheet with dimensions of 200 x 200 x 0.5 mm. The principle of operation is very simple - the product increases its electrical resistance due to stretching. The sheet material is also used in commonly used conductors.
Stretch sensor - conductive rubber sheet - 200x200x0,5mm - Adafruit 5464
€7.90
€6.42 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Adafruit

Product Description: Tensile Sensor - Conductive Rubber Sheet - 200 x 200 x 0.5mm - Adafruit 5463

The tensile sensor is a sheet of rubber made of the same material used in conductors - traditionally used for electromagnetic shielding or as a conductive gasket. The sheet's electrical resistance at rest is approximately 50 Ω. The sheet can stretch from 50% to 70% of its original condition. In combination with a resistor, the sensor can work as a simple voltage divider.

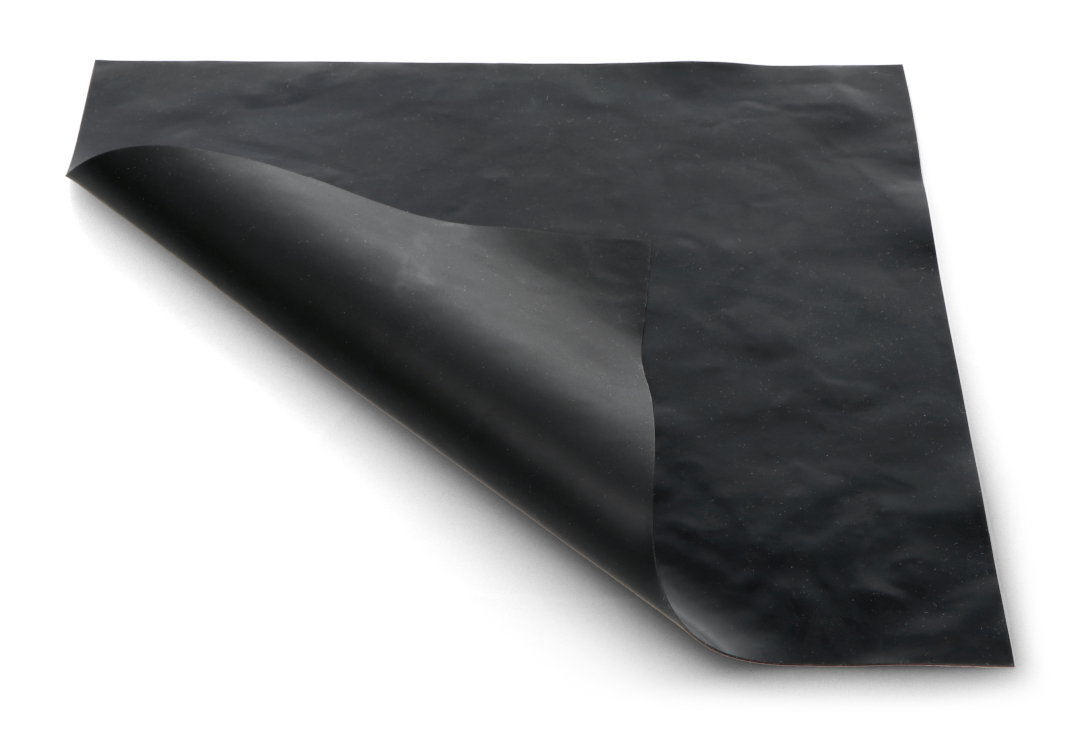

Tensile sensor - conductive rubber sheet.

Tensile sensor - conductive rubber sheet.

Tensile sensor - conductive rubber sheet.

Application of the sensor

The tensile force sensor is used wherever it is necessary to determine the strength of given materials. The use of a conductive rubber sheet allows these values to be obtained based on the change in the resistance of the material under the influence of stretching.

product specification

  • Resistance: 50 Ω
  • Stretchability: 50% to 70%
  • Dimensions: 200 x 200 x 0.5 mm
  • Weight: 22.6 g

Mass 22,6 g
Package width 20 cm
Package height 20 cm
Package depth 0.5 cm
Package weight 0.02 kg
