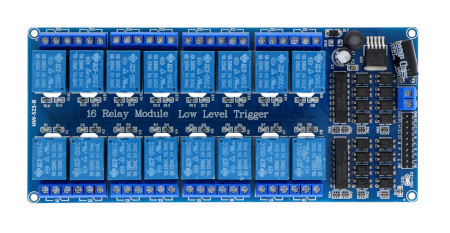

16-channel relay module with optoisolation - 10A / 250VAC contacts - 12V coil
The module is equipped with sixteen JQC3F-12VDC-C relays with a 12-volt coil with optoelectronic isolation. The system allows you to control the actuators using the microcontroller ports or any set of starters.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: 16-channel relay module with optoisolation - 10 A / 250 V AC contacts - 12 V coil.
The module allows you to control actuators consuming up to 10 A by means of microcontroller ports or any startup kit. Opto-isolation separates the control signal from the part related to the relay power supply, thus ensuring safe operation of the control system.
Connection
For proper operation, simply connect the relay coil power supply and the digital control signal. The leads are standard 2.54 mmgoldpin strips, which allow connection with popularconnection cables.
The relay has the following leads
The relay has the following leads
- 5V: - optoisolator power supply
- GND: - system weight
- IN1 ... IN16: - control inputs of relays, switched on in low state
- KF (ARK) connectors: - relay contacts, connected according to the drawing on the module board.
Examples of application
- Lighting controller
- Controller of actuators
- Switch for electrical equipment, including motors
Specification
- VCC supply voltage: : 12 V
- Attached: in a low state
- Current consumption of each input: : approx. 60 mA
- Relay JQC3F-12VDC-C: (documentation)
- Coil voltage: : 12 V
- Maximum contact voltage: : 250 VAC, 110 VDC*.
- Maximum current: : 10 A
- Optoelectronic isolation
- 16 LEDs indicating: vh activation of relays
- Plate dimensions: : 177 x 80 mm
- Weight: : 225 g
- Diameter of mounting holes: : 3 mm
* The maximum contact voltage is dependent on the type of load - see thedocumentationin Table 7. Contact Rating.
