Description

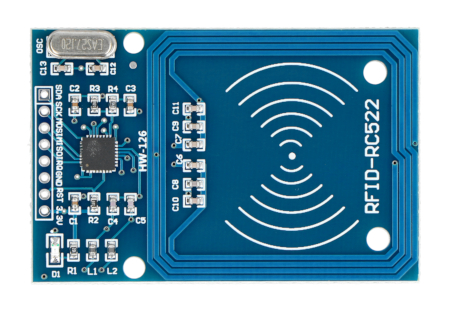

Tile allows you to read and write data from RFID devices at 13.56 MHz. The module is based on the popular RC522 system, has a built-in antenna, is powered from a voltage of 3.3 V, communication via SPI. The kit also includes acardanda keychain.
Supported RFID tags
The module can read so-called RFID tags, which are, for example,cardandkey chainsoperating at a frequency of 13.56 MHz. Built-in antenna allows to communicate at a distance up to 10 cm, even through non-metallic covers or housing.
Check out our RFID Tags 13.56 MHz!
|
The product is compatible with Arduino Online, you can findArduino librariesandsample programs. The device operates with a voltage of 3.3 V so to connect to the Arduino plates operating with a voltage of 5 V (for example,Uno and Leonardo) you need to applya voltage converter. |
A detailed description of connection is in user manual.
Specification
- Working voltage: 3.3 V
- Controller: RC522
- The ability to read and write data
- Range: up to 10 cm
- Communication: SPI (libraryfor Arduino)
- Tile sizes: 60 x 40 x 5 mm

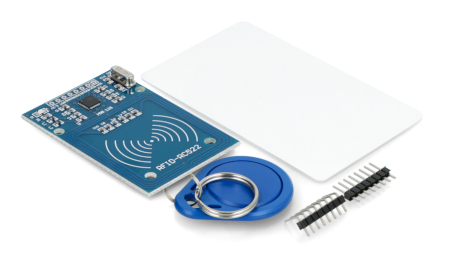

Included
- The RFID module
- Pins for self-soldering
- ID card RFID
- RFID keychain
