RFID / NFC MiFare Classic Tag white - 13,56MHz - Adafruit 360

Index: ADA-02952 EAN: 5904422383367
Ask a question

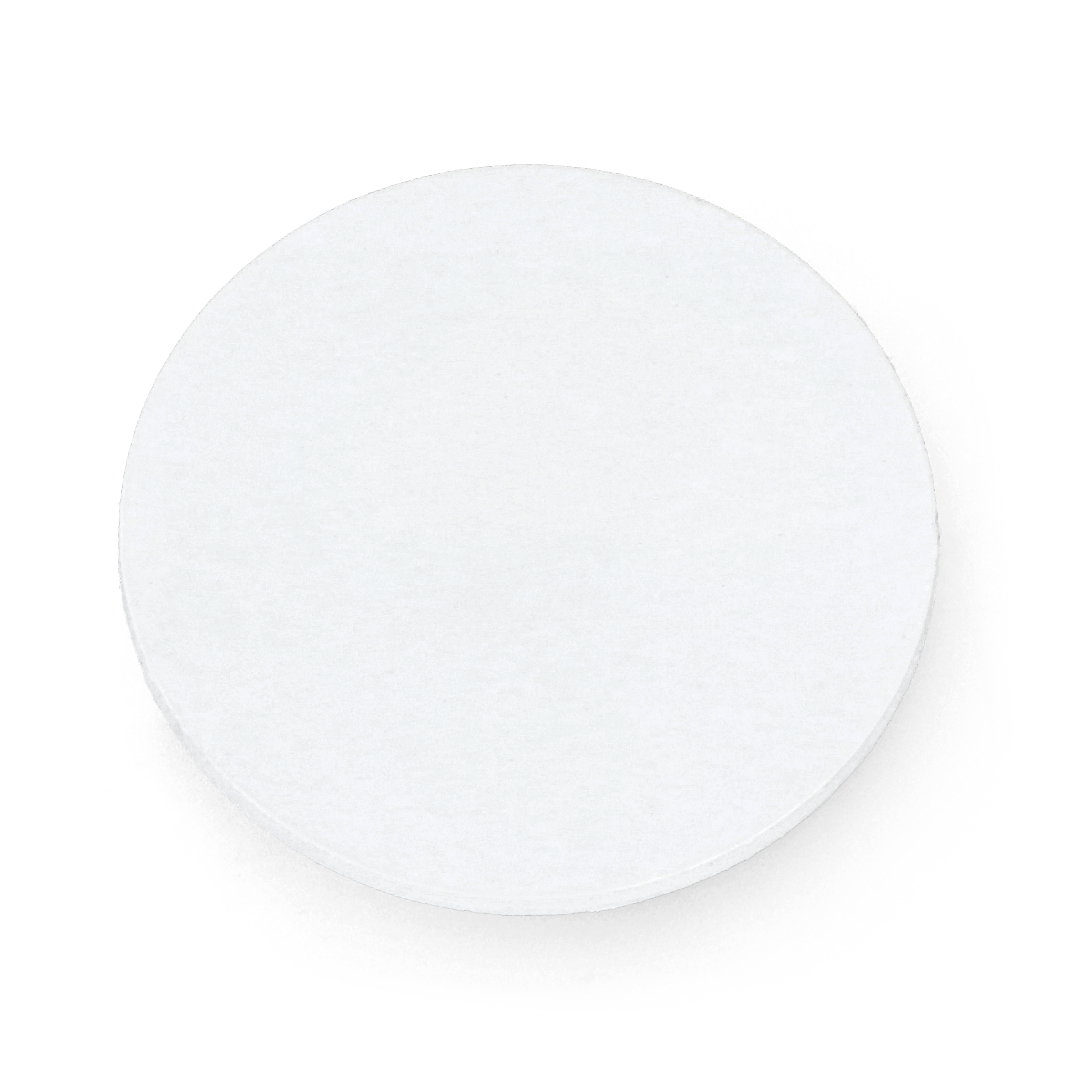

The RFID /NFC identifier in the form of a white marker, is equipped with NXP S50 chip. Each chip has a unique 32-bit code. The devices work at a small distance from the reader, the carrier frequency is 13.56 MHz.

RFID / NFC MiFare Classic Tag white - 13,56MHz - Adafruit 360
€3.50
€2.85 tax excl.
Check quantity
Available
Shipping in 24 hours
Free shipping
30 days to return
PayPal payment
Check quantity
Manufacturer: Adafruit

Description: Adafruit RFID / NFC MiFare Classic Tag white - 13.56MHz

The RFID /NFC identifier in the form of a white marker, is equipped with NXP S50 chip. Each chip has a unique 32-bit code. The devices work at a small distance from the reader, the carrier frequency is 13.56 MHz.

 Adafruit RFID / NFC MiFare Classic Tag biały - 13,56MHz



The product is compatible with Arduino and Raspberry Pi

The manufacturer provides:



Specification of Adafruit RFID / NFC MiFare Classic Tag

  • 32-bit unique ID code
  • Built-in encryptor with the 48-bit key
  • 1 KB of non-volatile EEPROM memory
  • Carrier frequency: 13.56 kHz
  • Working distance up to 10 cm from the reader
  • Diameter: 25.4 mm
  • Weight: 0.9 g





See also, available RFID readers operating with Arduino and Raspberry Pi.



Frequency from 13.56 MHz
Frequency to 13.56 MHz
Package width 5 cm
Package height 7 cm
Package depth 0.1 cm
Package weight 0.001 kg
Send us your question

Bartosz

09/19/23
Question: Are the tags programmed ?
Answer: Each tag has a unique 32-bit code stored in it.
Tomasz

08/30/21
Question: Is this NFC tag: RFID / NFC MiFare Classic Tag white - 13.56MHz - Adafruit 360 is it in sticker form? and is it programmable? these details are missing from the description unlike another NFC tag found on Botland.com.co.uk: NFC Tag - AI-Speaker convex sticker
Answer: The tag is not in the form of a sticker it is a 25.4 mm diameter disk without an adhesive layer.
The manufacturer's website says that the drive has an EEPROM on which data can be written and read, the tag also has a 4 byte ID code that cannot be changed (it is used to identify the tag).
