Product description: O2 oxygen sensor with I2C communication
Sensor designed for measuring O2 concentration in the environment. The DFRobot product is compatible with3.3 Vand5 Vcontrollers such asArduino, ESP32 orRaspberry Pi. It communicates via theI2Cinterface and is very resistant to interference. The sensor range isfrom 0% to 25% volume. It has a quick calibration function and high measurement sensitivity.
The use of special protection against polarity additionally extends its lifetime. It is widely used as a device for monitoring air quality in places with difficult circulation, such as mines or warehouses. Simple Gravity interface and sampleprogramcode provided by the manufacturer guarantee comfort and ease of use.
|
Product compatible with Arduino The manufacturer has prepared auser guide andlibrary with asample program forArduino users. |

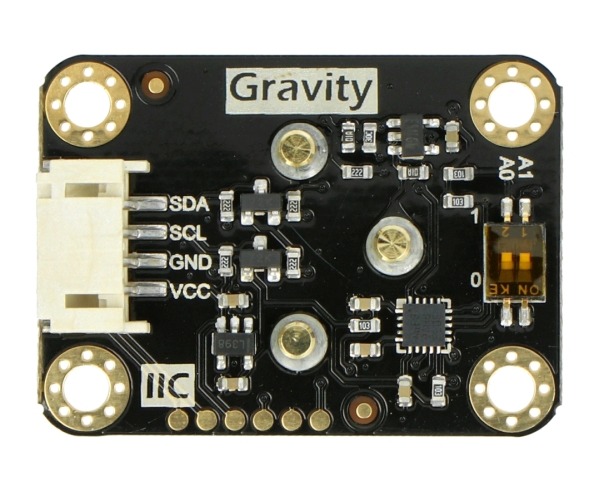

Module outputs
The sensor module works with main components communicating via the I2C interface. To read the data, supply power and connect the output pins to the relevant microcontroller inputs.
| Pin | Description |
|---|---|
| VCC | Pin power. |
| GND | The weight of the system. |
| SCL | Clock line of the I2C interface. |
| SDA | I2C interface data line. |
Sensor specification
- Input voltage: 3.3 V to 5.5 V DC
- Output signal: I2C output
- Measuring range: 0% to 25% vol
- Maximum measurement limit: 30% vol
- Affection: (0,10 ± 0,05) mA
- Stability: <2%
- Response time: ≤15 seconds
- Operating temperature: -20°Cto50°C
- Operating humidity: 0% to 99% RH (non-condensing)
- Pressure range: standard atmospheric pressure ± 10%
- Lifetime: >2 years
- Dimensions: 37 x 27 x 24.5 mm / 1.46 x 1.06 x 0.97 inch
- Weight: 0,037 kg

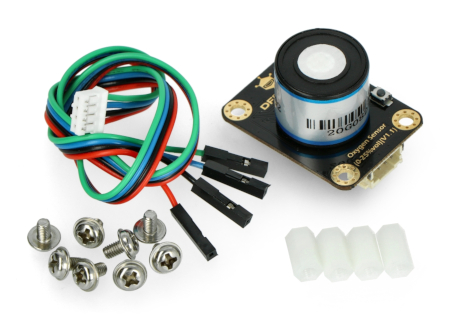

Set contents
- O2 oxygen sensor module
- Connecting cableGravity-4P I2C
- Nylon M3 distances (4 pieces)
- Screws M3 x 5 (8 pieces)
