Product description: Inductive proximity sensor LJ30A3-10-Z/CY 10 mm 6-36 V
Inductive proximity sensor with a 100 cm cable. It has nuts for easy installation and detects metal up to 10 mm away. Powered by a voltage of 6 V to 36 V. Detection of an object is indicated by a red LED , which turns on when a high state appears on the output (black cable).
Connection
- Brown wire - supply voltage
- Blue wire - ground - GND
- Black and white wire - digital output - OUT
- no object - poor condition
- object detection - high

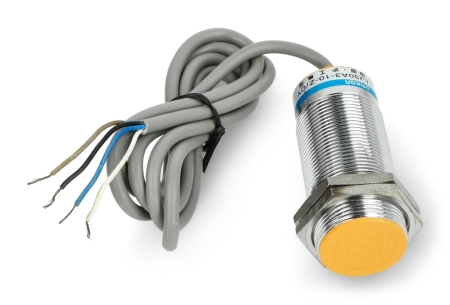

Inductive proximity sensor LJ30A3-10-Z/CY 10 mm 6-36 V

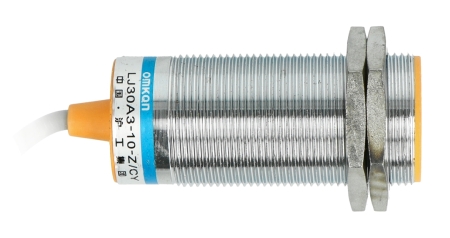

The sensor's measuring range is from 0 mm to 10 mm.
Technical specifications
- Supply voltage: 6 V to 36 V
- Current consumption: 10 mA
- Measuring range: 0 to 10 mm ± 10%
- Output signal: digital 300 mA
- Output state: default low, goes high when an object is detected
- Output type: PNP - NO+NC
- LED indicating object detection
- Detected object: metal
- Response time: less than 2 ms
- Operating temperature: -30°C to 65°C
- Diameter: 30 mm
- Sensor length: 56 mm
