Rubber conductive rubber cable for measuring the tensile force - Adafruit 519

Index: ADA-06549 EAN: 5903351247306

Conductive rubber wire with a diameter of 2 mm and a length of 1 meter. It is used to measure the stretching strength. During the stretching of the element, its resistance increases.

Rubber conductive rubber cable for measuring the tensile force - Adafruit 519
€13.90
€11.30 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Adafruit

Description

Conductive rubber wire used for measuring stretching strength. Made of chemically treated carbon rubber. It allows you to measure the stretching force.

Measurement

At rest, its resistance is from 140 to 160 Ω/cm. While stretching, the resistance is growing. For example, with a length of 15 cm, the resistance is about. 2,1 kΩ and after stringing up to 25 cm - 3.5 k &Omega. After release of the stringing, the rubber is compressed, but it takes a few minutes to get it back to the length of the rest. This is also not accurate linear sensor, measurements may differ between the two rubbers. The product enables the measurement of stretching strength but it is not a very accurate measurement.

Rubber should not be stretched more than approx. 50% to 70 % of its original length.

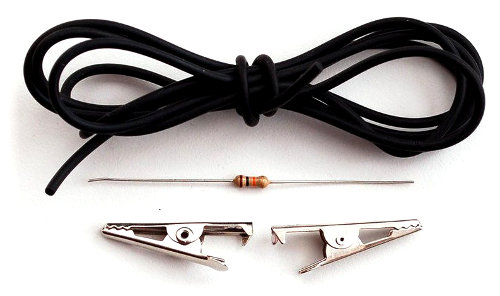

Included

  • Rubber cable: 1 m
  • Two crocodile clips
  • Resistor 10 kΩ

These elements work together as a simple voltage divider. The manufacturer provides user guideonhow to measure the analog voltage and convert it to resistance.



Cable - type measuring
Cable - Standard male
Cable length 1.0 m
Package width 8 cm
Package height 0.8 cm
Package depth 6.5 cm
Package weight 0.008 kg
