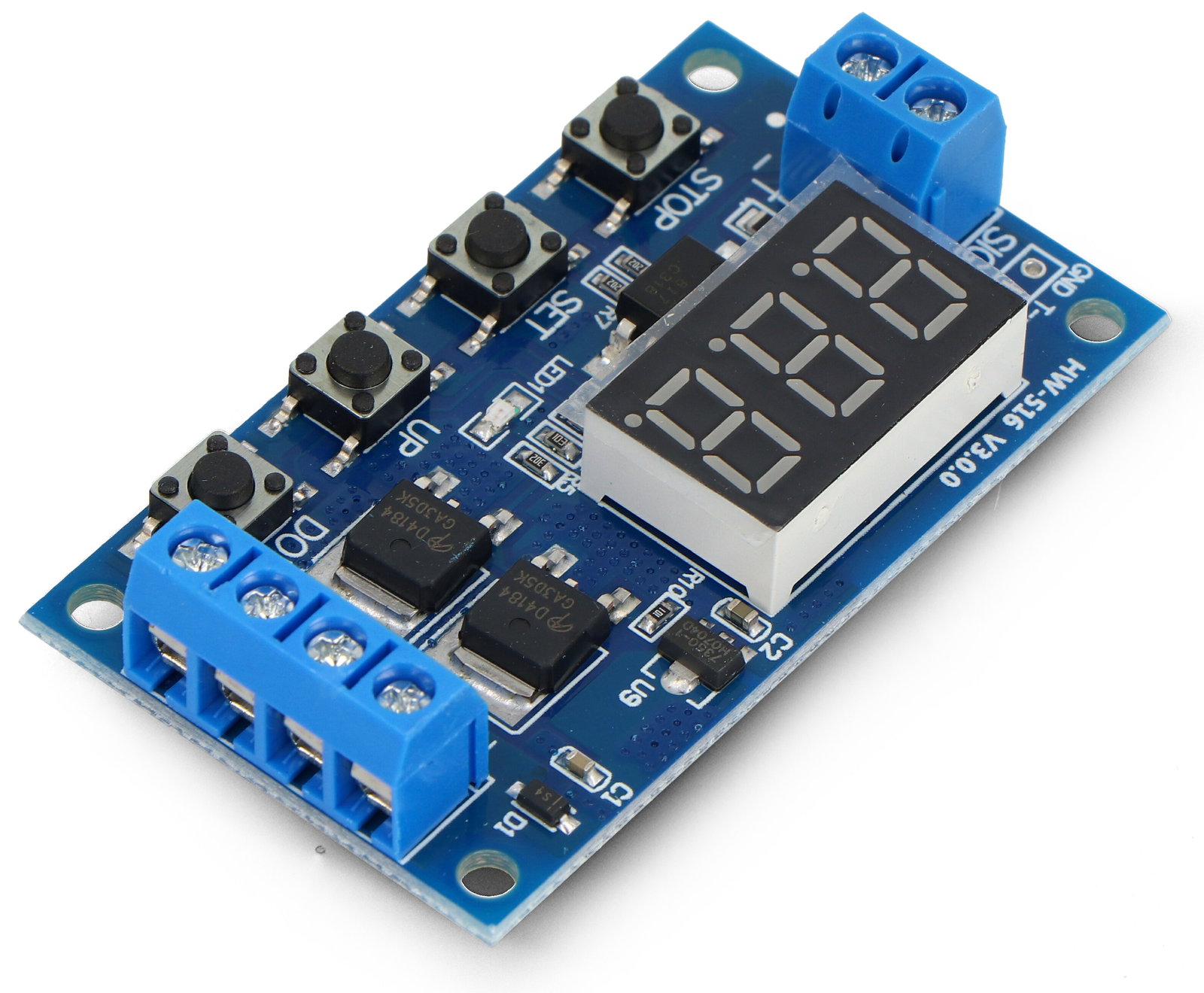

Specification
- The VCC supply voltage: from 5 V to 30 V
- Trigger input voltage: 3 V to 24 V
- MOS D4184 transistor
- 4 functional buttons
- Screw connectors
- Size of the board: 60 x 34 x 12 mm
Description
The module equipped with D4184 transistors powered with the voltage from 5 V to 30 V. The system allows you to control actuators using microcontroller ports or any development set. The relay is equipped with a delay system operating in the range from 0.1 sec to 999 min providing a switch-on delay, turn-off delay,cyclical operation and the action during the hold.
Modes of operation
- P1.1: activation with the Trigger signal, it is off after the OP time. Indicating the signal again doesn't work.
- P1.2: activation with the Trigger signal, it is off after the OP time. Indicating the signal again starts counting from the beginning.
- P1.3: activation with the Trigger signal, it is off after the OP time. Indicating the signal again immediately turns off the relay.
- P-2: activation with the Trigger signal with a CL delay. It is switched off after OP time.
- P3.1: activation with the Trigger signal, it is off after the OP time. Then, after the CL delay time, is switched on again. The number of cycles is set by the LOP parameter.
- P3.2: activation without the Trigger signal, it is off after the OP time. Then, after the CL delay time, is switched on again. The number of cycles is set by the LOP parameter.
- P-4: the hold function. Relay operates during the hold of the Trigger signal. After disabling, it turns itself off after the time set by the OP parameter.
Device configuration
- After turning on the power, press and hold the SET button for 2 seconds. After relasing it, you can select the operation modefrom P1.1 to P-4using the buttonsUP and DOWN.
- The mode is selected by briefly pressing the SET button
- Then, set the parameters of the delays:
- OP: turn-on time
- CL: time-off time
- LOP: the number of cycles
- While in the time setup mode, the STOP button allows you to select the unit. On the display, you should pay attention to the dot:
- XXX.: dot in the last place, the range from 1 sec to 999 sec
- XX.X: dot in the penultimate place, the range from 0.1 sec to 99.9 sec
- X. X. X.: three dots, range from 1 min to 999 min.
- After setting the parameters, press and holdSET button for 2 seconds. The name of the mode will begin to flash and then, the screen will return to the home screen and display 000.
- Pressing the STOP button on the home screen can pernamently disable the OFF relay. At the ON status, it works according to the set mode.
- Long hold of the STOP button, allows you to enter the device into sleep mode:
- C-P: sleep mode, after 5 minutes without pressing, the display turns off, the relay is working fine
- Oh-d: normal mode, the display is always on
Connection

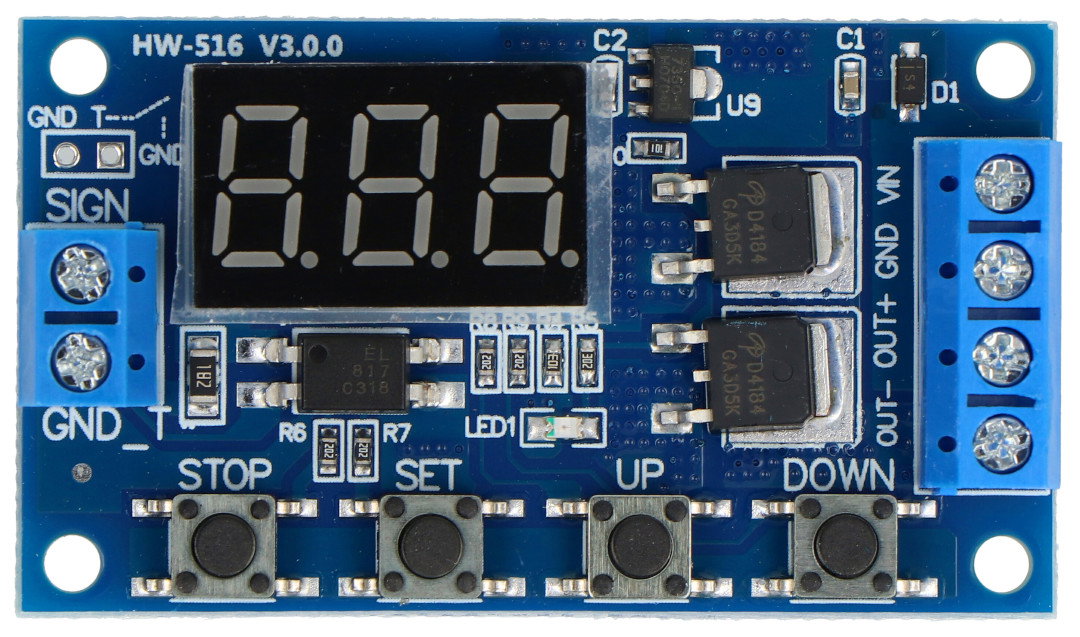

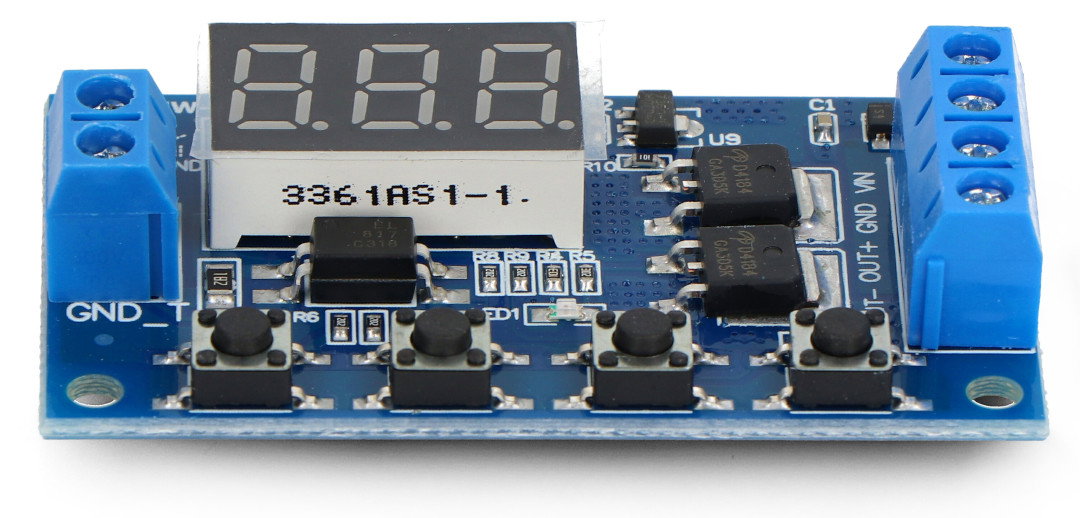

The module has seven pins described in the following table:
| PIN | Description |
|---|---|
| SIG | The control signal of the relay. Control voltage is from 3 V to 24 V. |
| GND_T | The ground of the control signal. |
| VIN | Supply voltage from 5 to 30 V. |
| GND | The ground of the system. |
| OUT+ | The output voltage signal. |
| OUT- | The output signal of the ground. |
