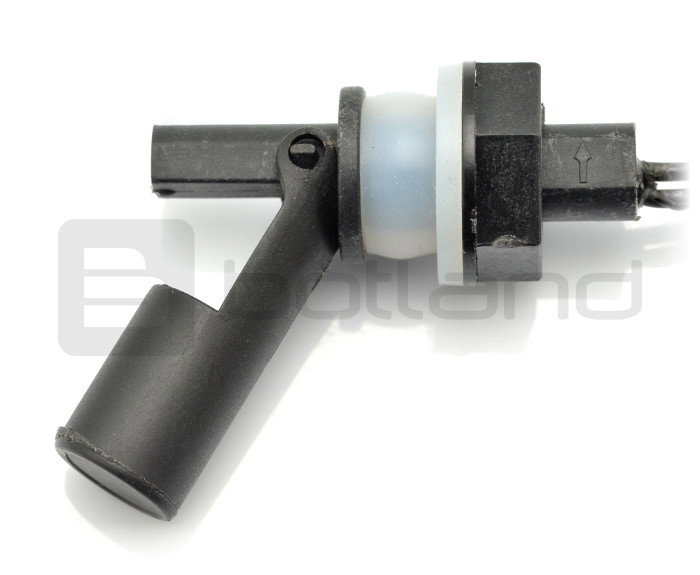

Aquarium Tank Liquid Water Level Sensor Float Switch 1MPa

Index: SES-07244 EAN: 5904422310035

The sensor allows you to control the water level in the tank. It consists of a float which, under the influence of a reduction of the volume of the fluid, decreases, causing a short circuit of the reed switch.

€3.84
€3.12 tax excl.
Waiting for confirmation of delivery date
Temporarily unavailable
30-day returns
PayPal payment

Description

The sensor allows you to control the water level in the tank. It consists of a float which, under the influence of a reduction of the volume of the fluid, decreases, causing a short circuit of the reed switch, that is, it begins to conduct electric current.



In this combination, the sensor does not conduct the electrical impulses

Specification

  • Switching voltage: up to 110 V DC
  • Maximum current: 0.5 A
  • Reed switch resistance: 100 Ω
  • Operating temperature: -30 °C to 125 °C
  • Maximum fluid pressure: 1 MPa
  • Cable length: approx. 35 cm
  • Diameter: 25 mm
  • Length: 80 mm
