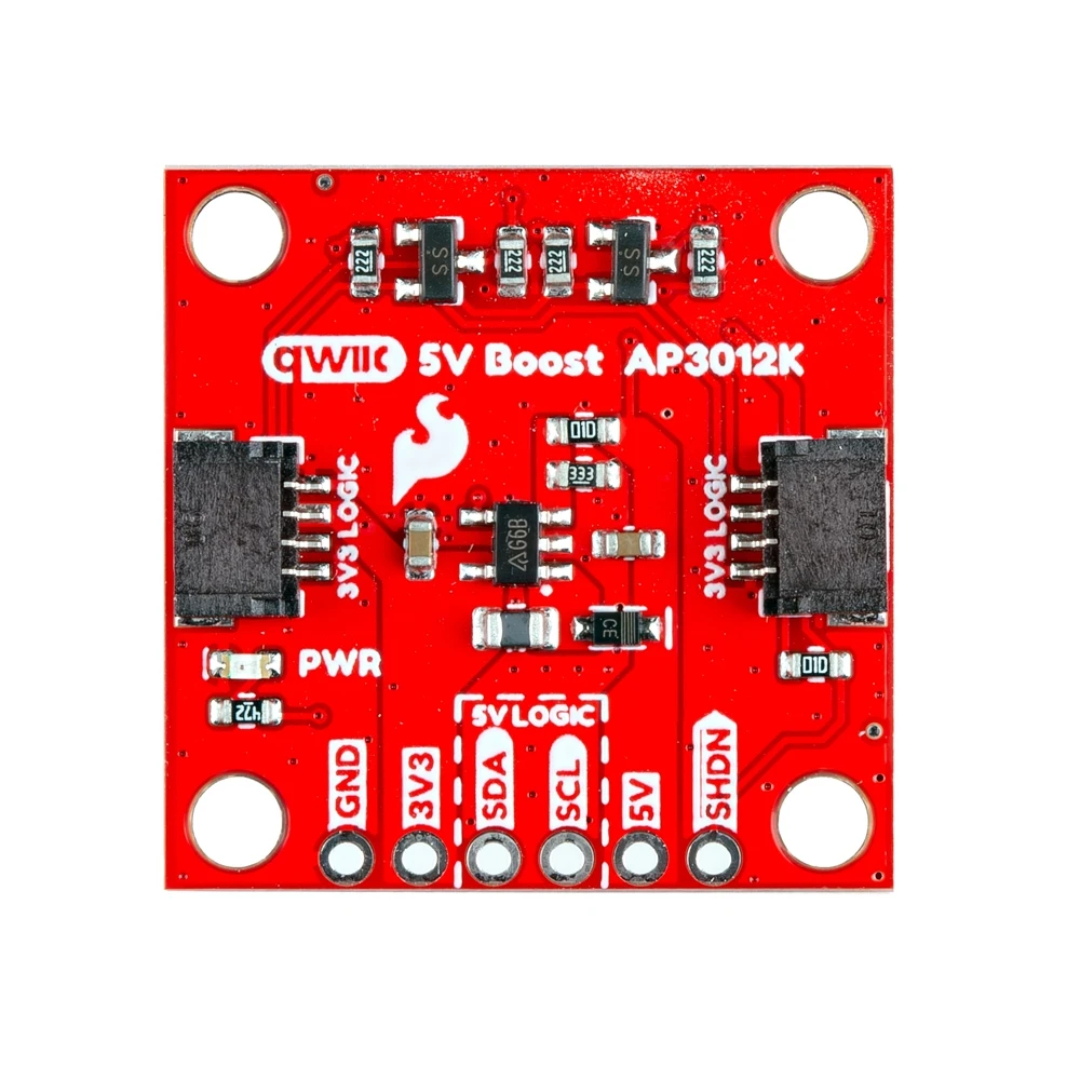

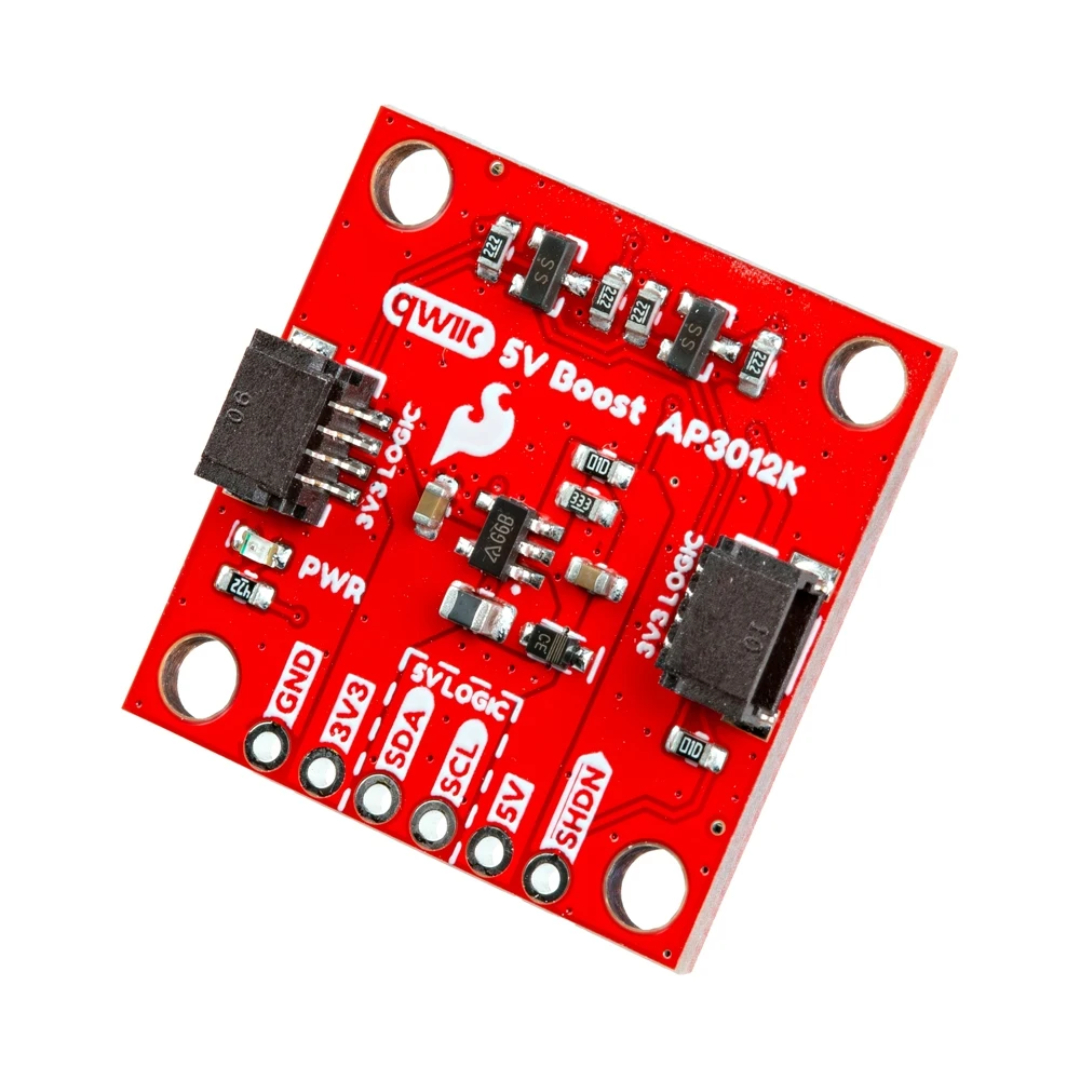

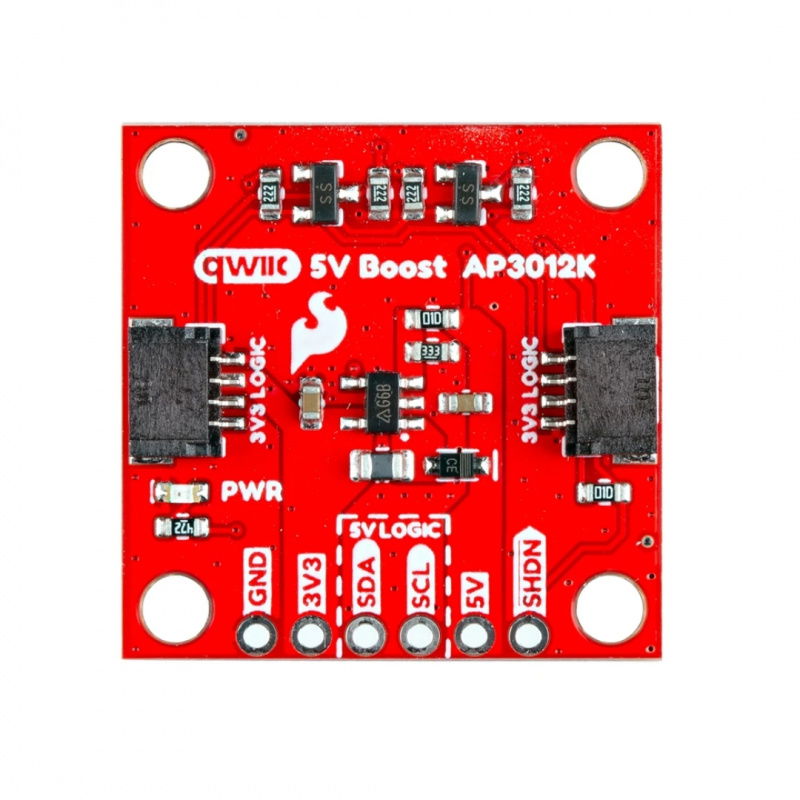

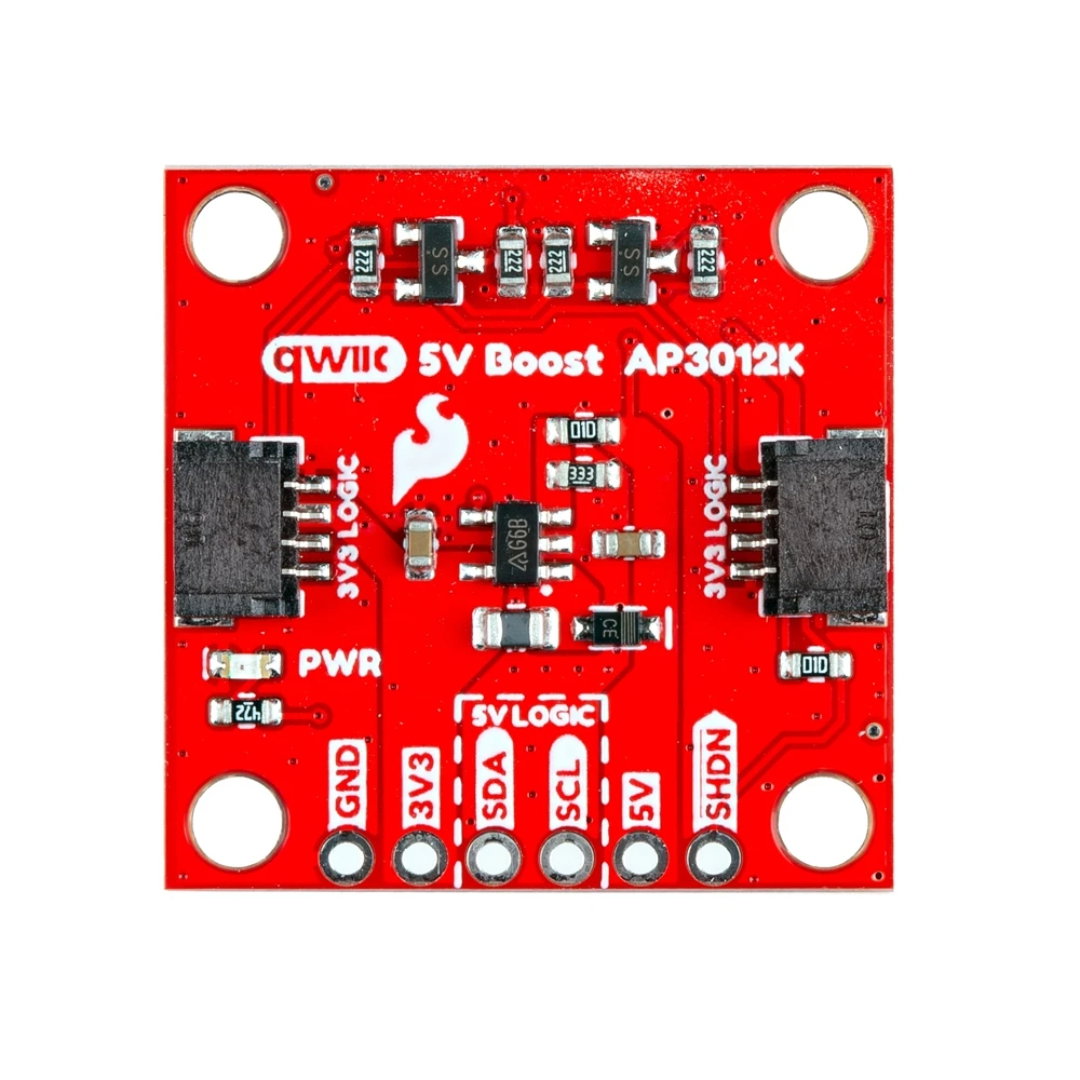

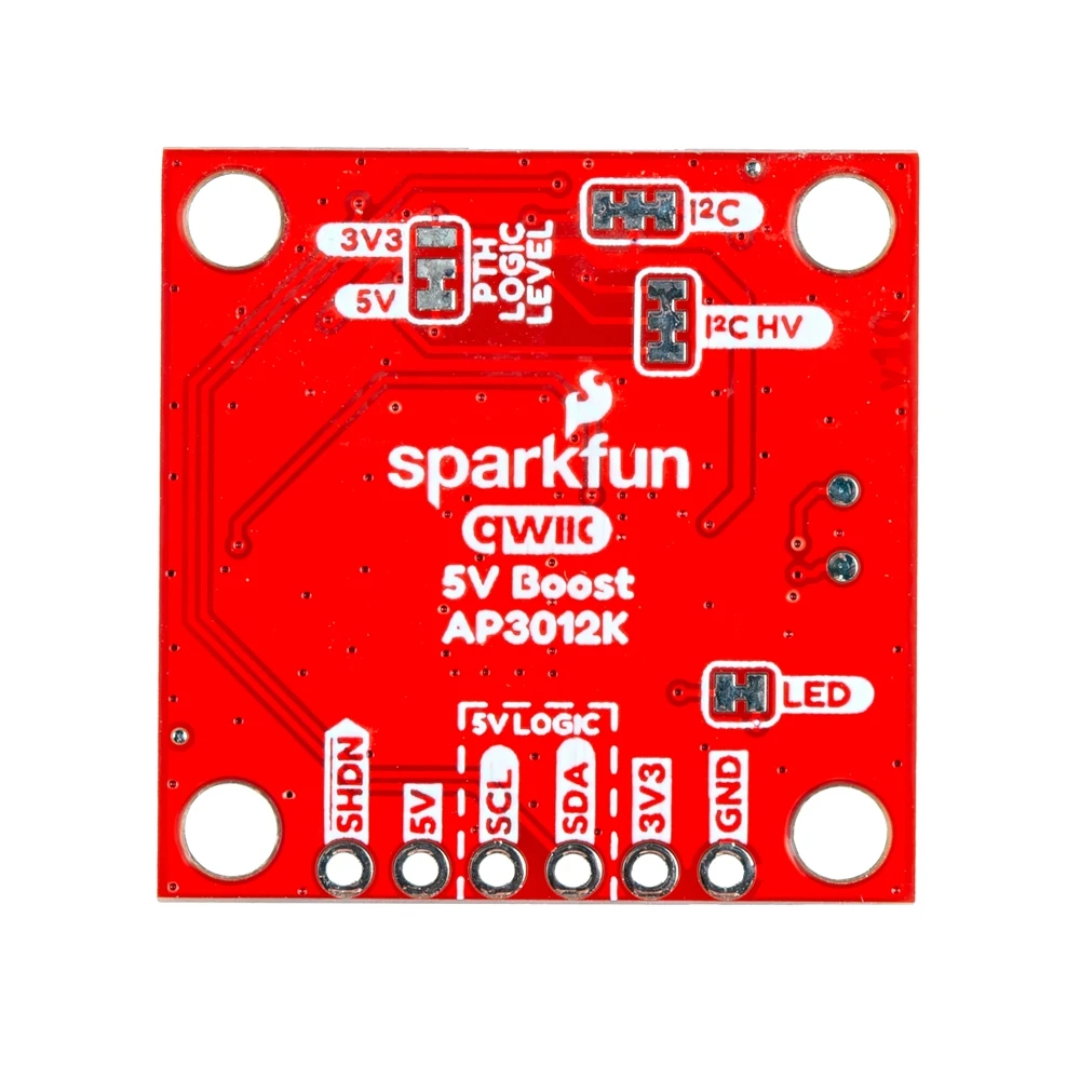

Qwiic 5V Boost - 5V step-up converter - AP3012K - SparkFun PRT-28203
Qwiic 5V Boost is a universal board that extends the compatibility of Qwiic systems with devices operating in the 5V standard. Based on the AP3012 converter, the module increases the voltage of 3.3V from the Qwiic bus to 5V and makes it available via soldered pins. Additionally, built-in logical level converters allow the conversion of I2C signals.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Qwiic 5 V Boost - 5 V step-up converter - AP3012K - SparkFun PRT-28203
Qwiic 5V Boost is a universal board that extends the compatibility of Qwiic systems with devices operating in the 5 V standard. Based on the AP3012 converter, the module increases the voltage of 3.3 V from the Qwiic bus to 5 V and makes it available via soldered pins. Additionally, built-in logical level converters allow for the conversion of I2C signals, and a set of jumpers allows for independent setting of voltage levels and pull-up resistors . This is a perfect solution for integrating devices such as SPS30, SEN54 sensors, fans or LED lighting with 3.3 V microcontrollers.
Qwiic 5V Boost - 5V step-up converter - AP3012K - SparkFun PRT-28203.
Botland is an official distributor of modules and accessories from SparkFun Electronics. This well known American maker provides a complete base for electronics projects. Our range holds original SparkFun Electronics products only.
Qwiic 5V Boost is a universal board that extends the compatibility of Qwiic systems with devices operating in the 5 V standard.
Special Features
- Compatible with 3.3V Qwiic system and 5V I2C devices
- Built-in AP3012 converter - stable 5V from 3.3V supply
- Independent setting of logical levels via 3V/5V jumpers
- Two TTL converters enabling bidirectional transmission
- Qwiic connectors and PTH pins for flexible connection
- SHDN output - possibility of programmatic switching on/off of the converter
- PWR LED - Visual confirmation of power supply
Practical applications
The SparkFun Qwiic 5V Boost module is ideal for integrating 5V sensors and peripherals with 3.3V controllers - especially for air quality systems, cooling systems, RGB LED projects, or prototyping with I2C sensors. It greatly simplifies integration in the Qwiic environment and allows you to avoid external converters or logic level converters.
Technical specification of the module
- Converter system: AP3012
- Input Voltage: 3.3V (with Qwiic)
- Output voltage: 5V (from AP3012)
- Interfaces: 2 x Qwiic (I2C), PTH pins (GND, 3V3, SDA, SCL, 5V, SHDN)
- Logical conversion: 2 x TTL converters (3.3V/5V)

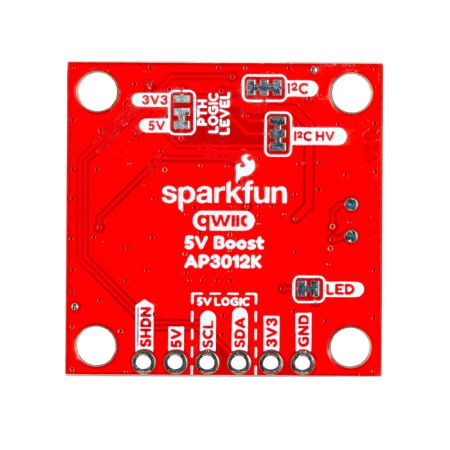

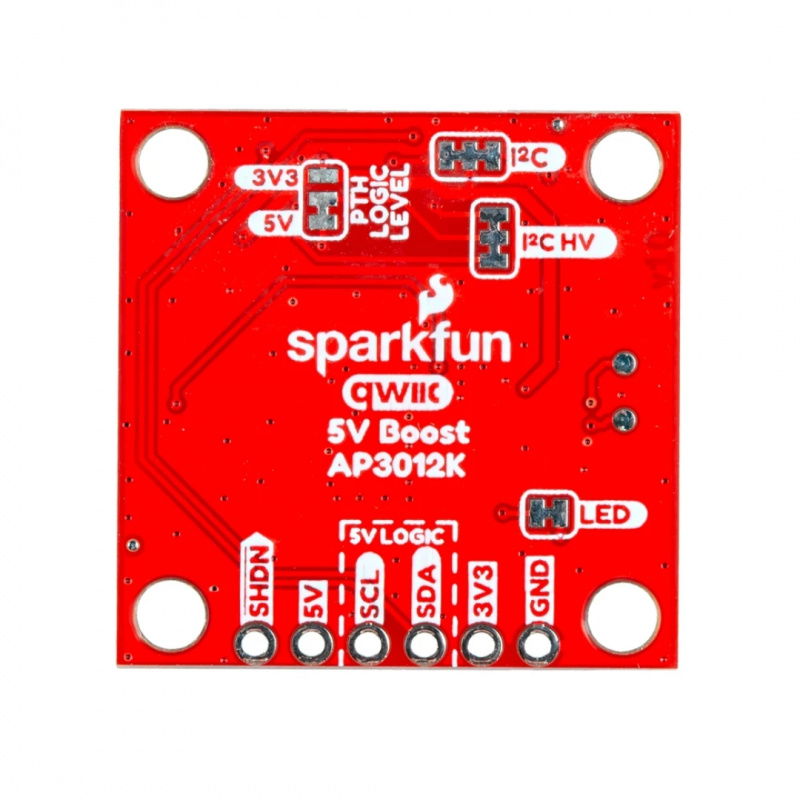

- Jumpers: I2C, I2C HV, 3.3V/5V (signal logic on PTH pins)
- Indicator: Red Power LED

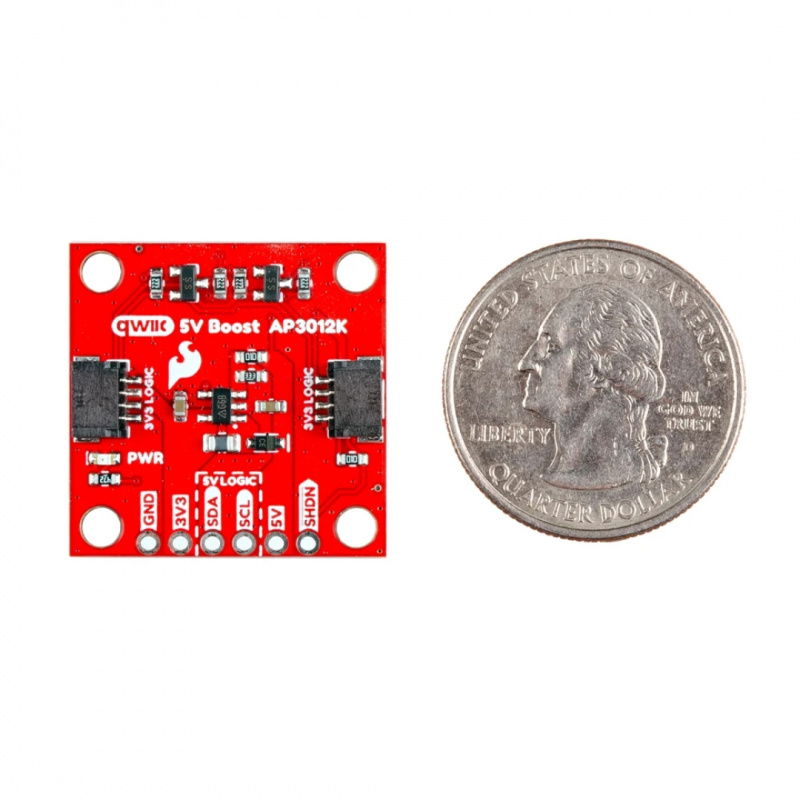

- Dimensions: 24.50 x 24.50 mm
- Weight: 2.35 g
This is a perfect solution for integrating devices such as SPS30, SEN54 sensors, fans or LED lighting with 3.3 V microcontrollers.
Useful links
| Name | Value |
|---|---|
| Voltage output from | 3.3 V |
| Output voltage to | 5.0 V |
| Width | 6 cm |
| Height | 9 cm |
| Depth | 1 cm |
| Weight | 0.003 kg |
