Infrared receiver TSOP32156 - 56 kHz

Index: SES-00781 EAN: 5904422352639

IR receiver TSOP32156, it is operating at a frequency of 56 kHz.

Infrared receiver TSOP32156 - 56 kHz
€0.63
€0.51 tax excl.
Available
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: OEM

Specification

  • Supply voltage: -0.3 V to 6 V
  • Average current: 5 mA
  • Output voltage: -0.3 V to 6 V
  • Working frequency: 56 kHz

Details inthe documentation.



Connection

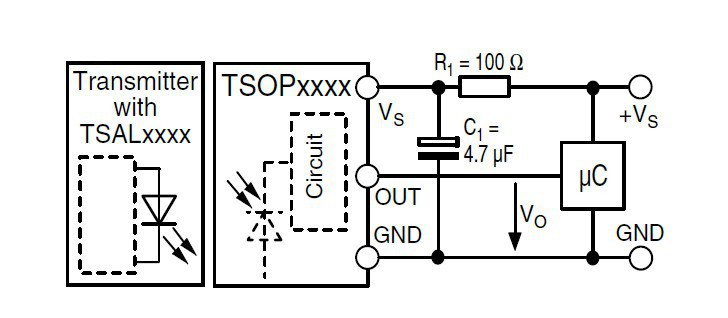

The following figure shows the diagram of connecting the sensor, taken from the documentation. The manufacturer requires the current limitation using the resistor of 100 Ohms and using a filtering condenser between the legs of the power supply with a capacity of 4.7uF.

Podłączenie czujnika TSOP

Connection diagram of the IR receiver TSOP32156.
