Product description: ADC analog-to-digital converter - ADS7830 - 8-bit 8-channel - I2C - STEMMA QT / Qwiic - Adafruit 5836
8-channel module with an analog-to-digitalconverter with 8-bit precision equipped with the ADS7830 chip. The maximum sampling rate is 70 ksps and the SNR is 50 dB . The task of the ADC converter is to convert the analog signal into a digital signal, which allows you to connect digital modules (e.g. Arduino or Raspberry Pi ) with peripheral devices and analog sensors. The board operates with a voltage of 3 V and 5 V and is also equipped with STEMMA QT / Qwiic connectors, which allow for quick prototyping.
The manufacturer has prepared a detailed user guide . You will find there, among others, a description of the system, the arrangement of pins and an example program code.

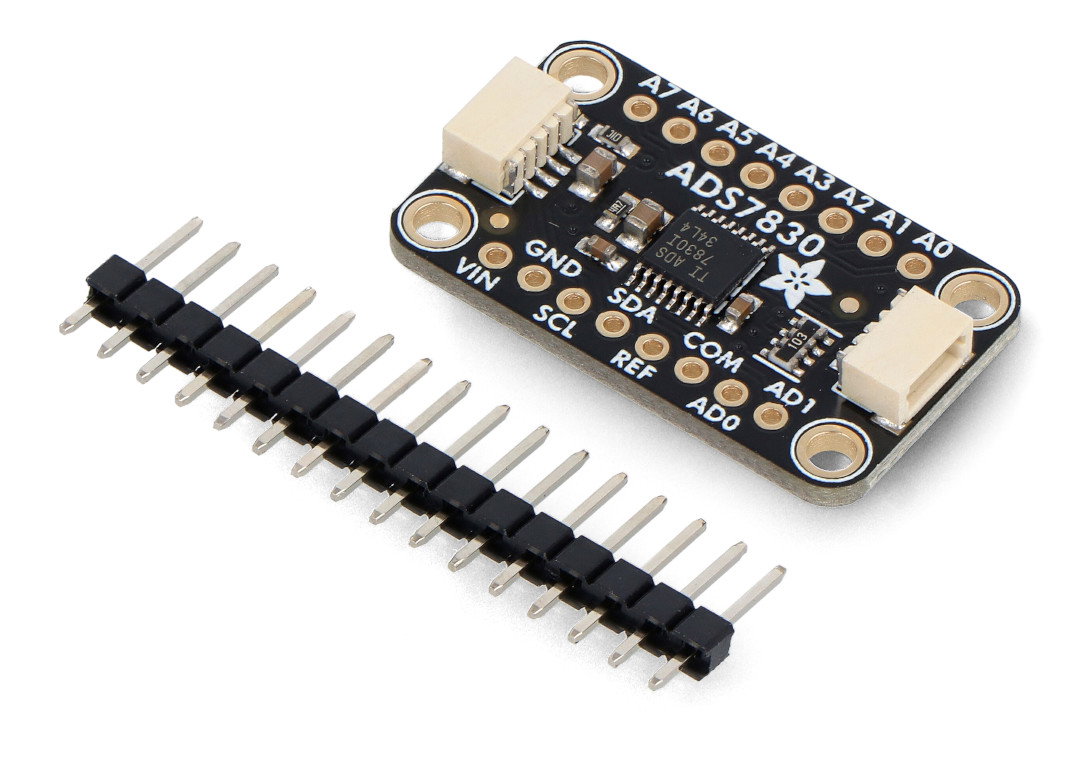

ADC analog-to-digital converter - ADS7830 - 8-bit 8-channel - I2C - STEMMA QT / Qwiic - Adafruit 5836.

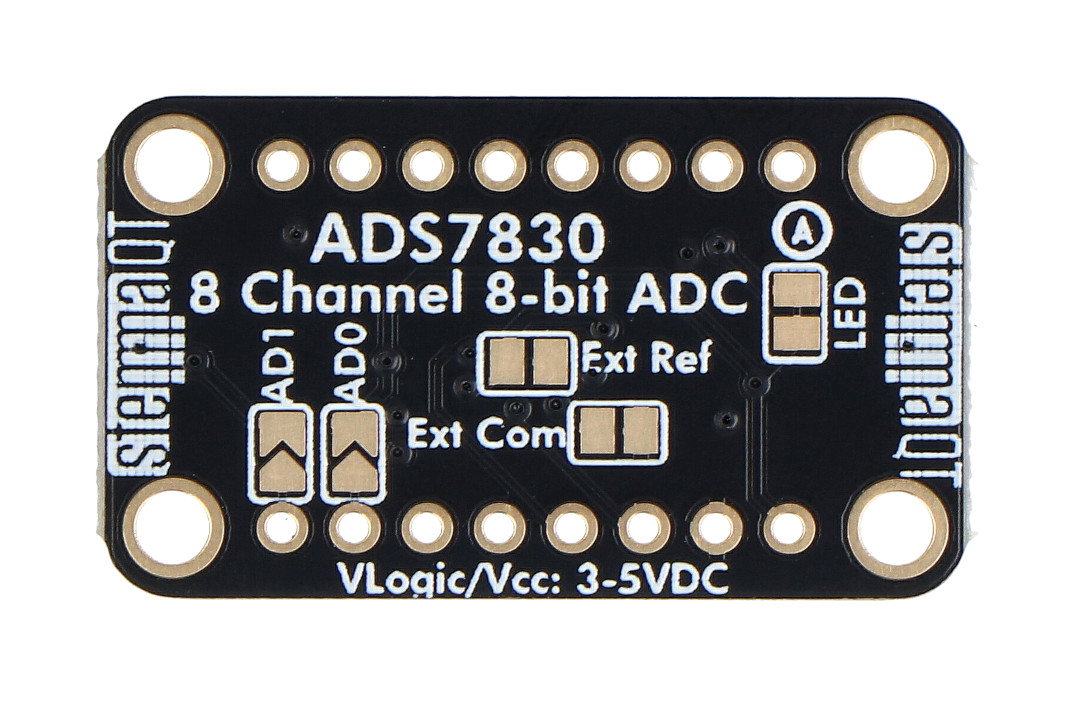

The board has terminals in the form of solder pads.

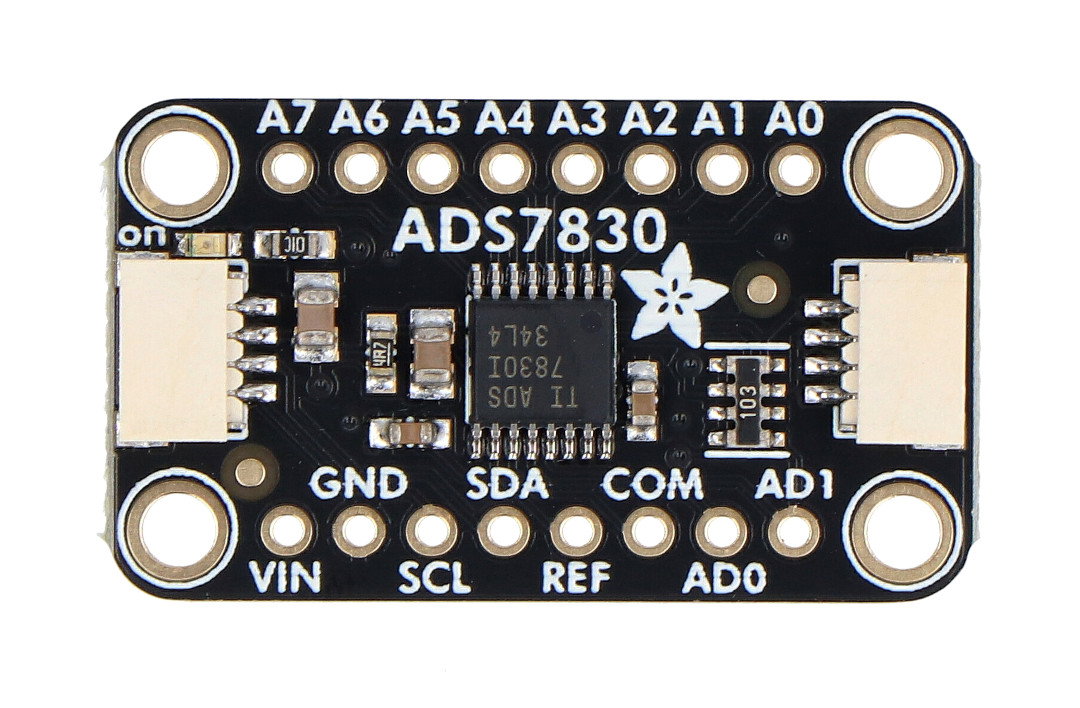

Description of the board pins
The board has two connection options - using standard soldering pads, to which the goldpin strips included in the kit should be soldered, or using STEMMA QT / Qwiic connectors, which do not require soldering.
- VIN - supply voltage from 3 V to 5 V,
- REF - positive reference pin,
- GND - system ground,
- COM - negative reference pin,
- SDA - I2C bus data line,
- SCL - clock line of the I2C bus,
- A0-A7 - inputs to the ADC converter.
Technical specifications of the module
- Module type: transducer
- Type: ADC analog-to-digital converter
- Built-in chip: ADS7830
- Number of channels: 8
- Resolution: 8-bit
- Maximum sampling rate: 70 ksps
- Architecture: SAR
- Input type: pseudo-differential, unbalanced
- Multi-channel configuration: multiplexed
- Reference mode: external, internal
- SNR: 50 dB
- Communication interface: I2C bus
- I2C bus address:
- default: 0x48
- configurable: 0x49, 0x4A or 0x4B
- Operating temperature range: from -40°C to 80°C
- Operating voltage: 3 V to 5 V (when powered through the Qwiic connector: 3.3 V)
- Pins: solder pads, 2x STEMMA QT / Qwiic connector
Contains built-in ADS7830 chip.
Elements included in the set.
Set contents
- ADC analog-to-digital converter - ADS7830 - 8-bit 8-channel - I2C - 1 piece
- Goldpin strip - 2.54 mm raster - 1 piece
