The module communicates via the I2C interface.
Product description: M5StickC ENV III Hat - temperature, humidity and air pressure sensor - SHT30 and QMP6988 - M5Stack U053-D
M5StickC ENV III Hat is a versatile module from M5Stack designed for monitoring environmental parameters , compatible with the M5StickC series. The module is equipped with two advanced sensors: SHT30 , responsible for measuring temperature and humidity, and QMP6988 , enabling precise measurements of atmospheric pressure. Thanks to this, ENV III Hat offers a wide range of data, making it an excellent choice for projects such as weather stations , environmental monitoring in warehouses or IoT applications requiring fast data collection. The module communicates via the I2C interface, which facilitates its integration with other devices.

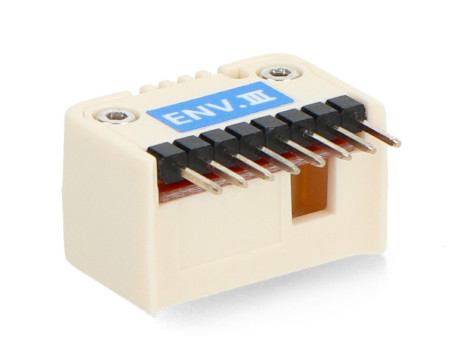

M5StickC ENV III Hat - temperature, humidity and air pressure sensor - SHT30 and QMP6988 - M5Stack U053-D.

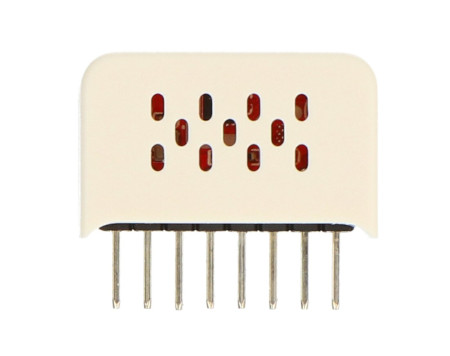

The module is equipped with two sensors to measure temperature, humidity and atmospheric pressure.
Special features of the module
- Precise measurements of temperature, humidity and atmospheric pressure.
- High reliability and long-term stability.
- I2C interface support (SHT30 addresses: 0x44, QMP6988: 0x56).
- I2C connectors compatible with M5StickC.
- Compact size and lightweight design (only 4 g).
- Operating temperature range from 0°C to 40°C.
- High measurement accuracy: ± 0.2°C for temperature, ± 2% for humidity, ± 3.9 Pa for atmospheric pressure.
SHT30
SHT30 is a digital temperature and humidity sensor , characterized by high precision and low power consumption. With advanced technology, SHT30 provides accurate temperature measurements from -40°C to 120°C and humidity from 10% RH to 90% RH . Its small size and ease of integration make it an ideal choice for applications requiring reliable environmental monitoring.
QMP6988
The QMP6988 is an absolute barometric pressure sensor designed for mobile applications. It offers exceptionally accurate measurements from 300 hPa to 1100 hPa , with a resolution of 0.06 Pa and a measurement error of only ±3.9 Pa. The QMP6988 is ideal for projects requiring precise monitoring of barometric pressure changes, such as weather stations or navigation devices.
In our offer you will also find other M5Stack modules - check them out!
The module communicates via the I2C interface.

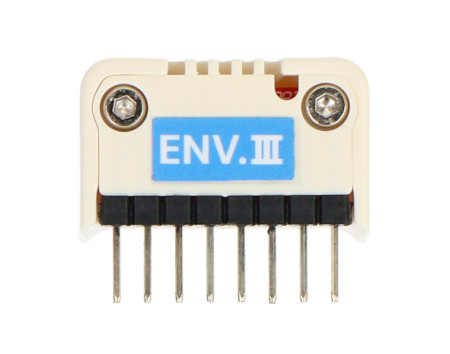

The overlay is compatible with the M5StickC series of development modules.
M5StickC ENV III Hat Applications
The M5StickC ENV III Hat is ideal for a variety of environmental monitoring projects, including:
- weather stations,
- monitoring conditions in warehouses and storage rooms,
- IoT applications requiring precise environmental data.
ENV III Hat Technical Specifications
- Environmental sensor for measuring: temperature, humidity, pressure
- Built-in systems: SHT30 and QMP6988
- Communication interface: I2C
- I2C interface address:
- SHT30 chip: 0x44
- QMP6988 chip: 0x56
- Temperature measurement:
- measurement range: -40°C to 120°C
- measurement accuracy: ± 0.2°C in the range from 0°C to 60°C
- Humidity measurement:
- measurement range: -10% RH to 90% RH
- measurement accuracy: ± 2%
- Pressure measurement:
- measurement range: 300 hPa to 1100 hPa
- measurement accuracy: ±3.9 Pa
- resolution: 0.06Pa
- Operating temperature: 0°C to 40°C
- Dimensions: 36 x 36 x 18 mm
- Weight: 4 g
Kit Contents
- 1x ENV III Hat
- 1x Mounting tape

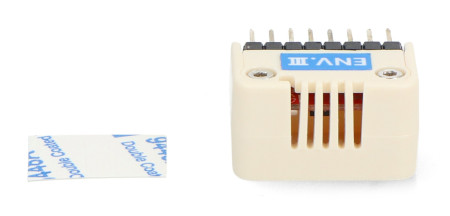

Items included in the set.
