Product description: TFT LCD display 1.14'' 135x240px - ST7789V2 - M5Stack A174
A compact, 1.14" color TFT LCD display designed for use in M5Stack devices and embedded projects. The module can function as an OEM replacement screen when repairing or replacing a damaged display in compatible products . Its small size and slim design make it easy to integrate into small electronic devices, portable terminals, IoT modules, and control panels.
Technical specifications
- Screen diagonal: 1.14"
- Display type: Transmissive TFT
- Driver: ST7789V2
- Resolution: 135 x 240 px
- Number of colors: 262,000 colors
- Active display area: 14.864 x 24.912 mm
- Communication interface: 4-wire SPI
- Connector specifications: 0.5 mm pitch, 8 pins
- Viewing angles: full
- Backlight type: 1x LED with independent power supply
- Operating temperature range: -20°C to 70°C, non-condensing
- Supply voltage: 2.4 V to 3.3 V
- Weight: 1.5 g
- Dimensions: 17.6 x 31 x 1.6 mm

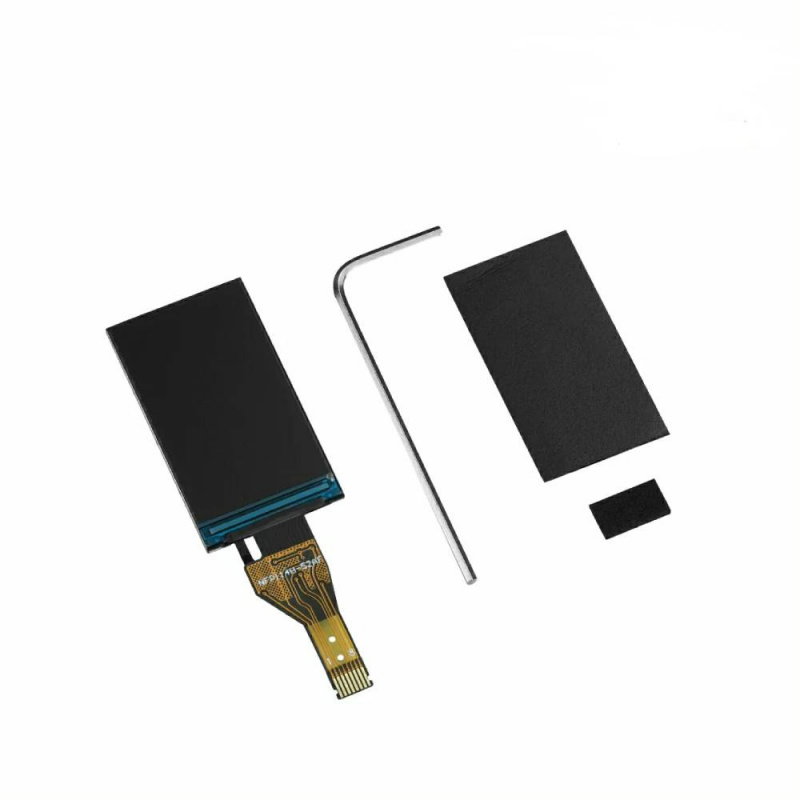

Kit contents
- 1x Display 1.14"
- 1x L-Shape Allen key 1.5mm for M2 screws
- 1x EVA foam
- 1x1 Sponge pad
