Product description: M5Stick T-Lite Thermal Camera Dev Kit - thermal camera kit - based on ESP32-PICO - MLX90640 - M5Stack K126
M5Stick T-Lite Thermal Camera Dev Kit is a combination of the M5StickC Plus development module (with the ESP32-PICO system and wireless WiFi communication ) and the MLX90640 overlay with a thermal imaging camera , which also allows online data reading. In the central part of the module there is an LCD display that allows for the current observation of the environment. The measuring range of the detected temperature is from -40°C to 300°C .
M5Stick T-Lite Thermal Camera Dev Kit - thermal camera kit - based on ESP32-PICO - MLX90640 - M5Stack K126.
The manufacturer has prepared a detailed user guide - check it out!

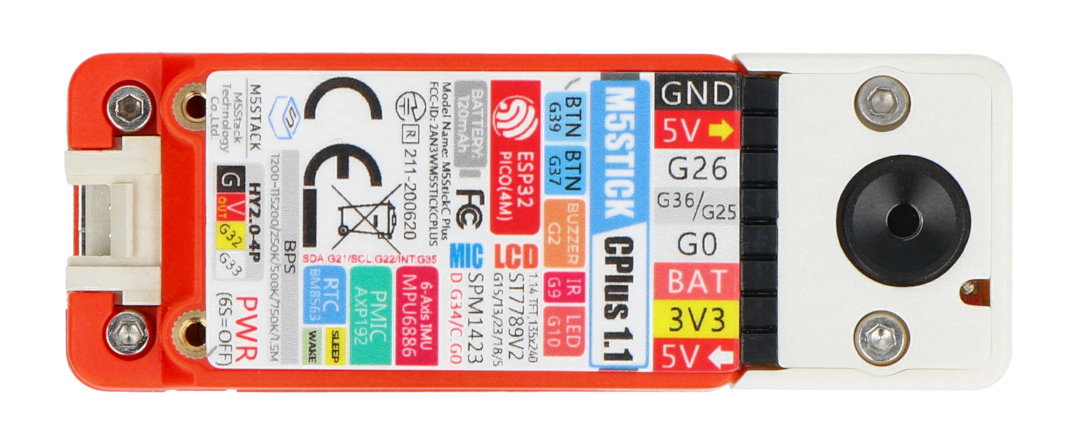

All the pins of the module are marked on the back of the board.
Special features of the module
- Based on the ESP32-PICO chip, equipped with WiFi wireless communication

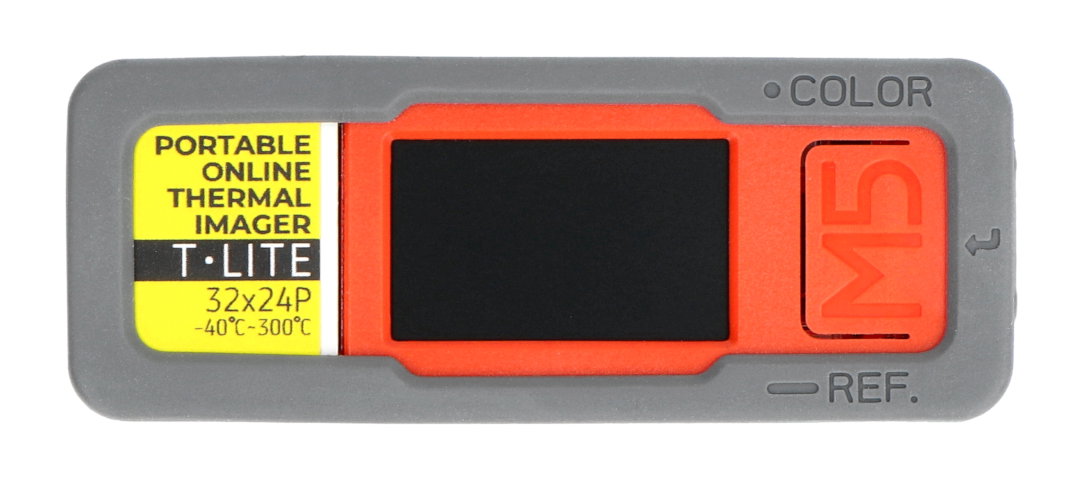

- In the central part there are buttons and an LCD display with a diagonal of 1.14 "
- The built-in 160 mAh lithium-polymer battery is responsible for the power supply
- The module has a built-in passive buzzer (buzzer)
- Built-in thermal imager with online reading
- The field of view of the thermal imaging camera used is 110° x 75°
- The measuring range of the detected temperature is from -40°C to 300°C
Suggested use
- Warning when a certain temperature is detected
- Monitoring of temperature anomalies in a given circuit
- Precise non-contact temperature measurement of people/objects
- Area intrusion/movement detection
- Visual infrared thermometers

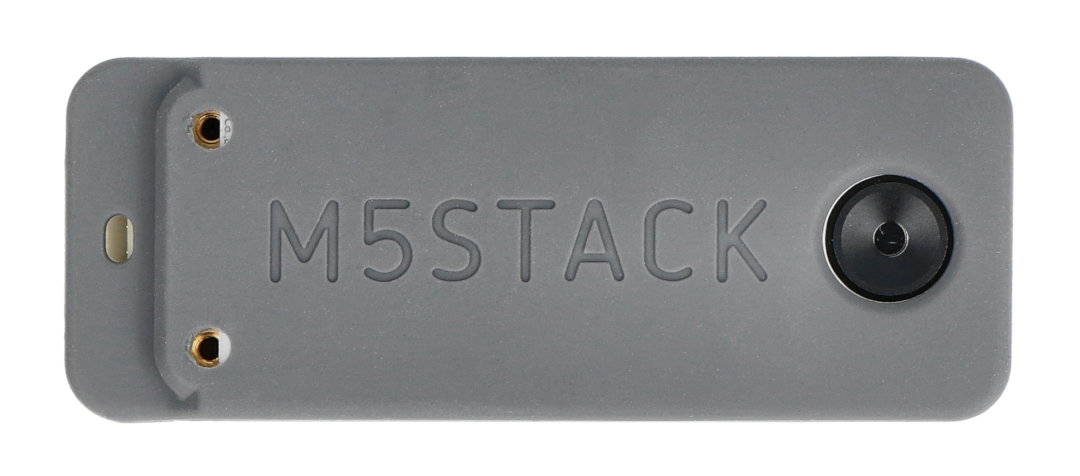

The set also includes a comfortable gray housing.

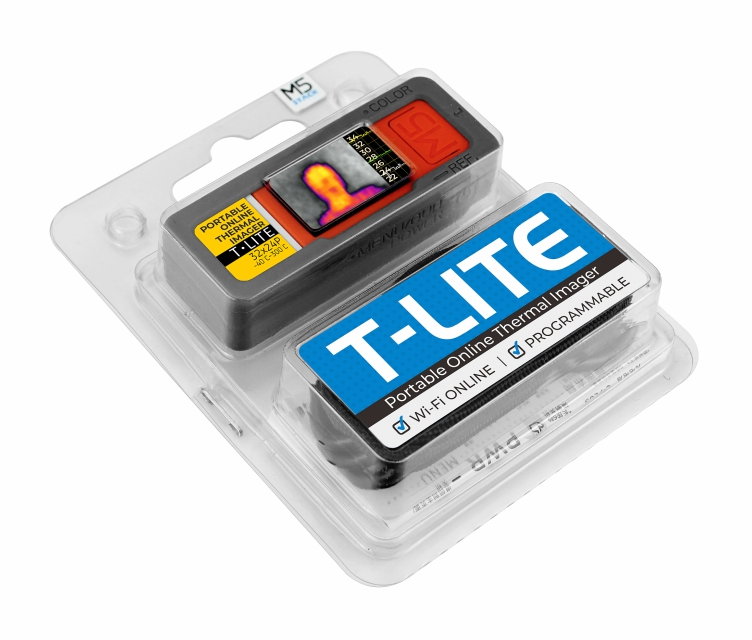

The elements of the set are delivered in a safe packaging.
Module technical specification
- Onboard MCU: ESP32-PICO, 240MHz Dual Core, 600DMIPS, 520KB SRAM
- Thermal imaging camera
- Camera module: MLX90640
- Field of view: 110° x 75°
- Camera resolution: 32 x 75 px
- Flash memory: 4MB
- Input voltage: 5V / 500mA
- USB Connector: USB Type-C
- Display: LCD FTF with a resolution of 1.14" and a diagonal of 135 x 240 px
- Built-in driver: ST7789v2
- MIC: SPM1423
- Buzzer: passive
- PMU: AXP192
- Battery: Lithium Polymer 160mAh / 3.7V
- Dimensions: 69 x 26.6 x 6.35mm
- Weight: 30.1g

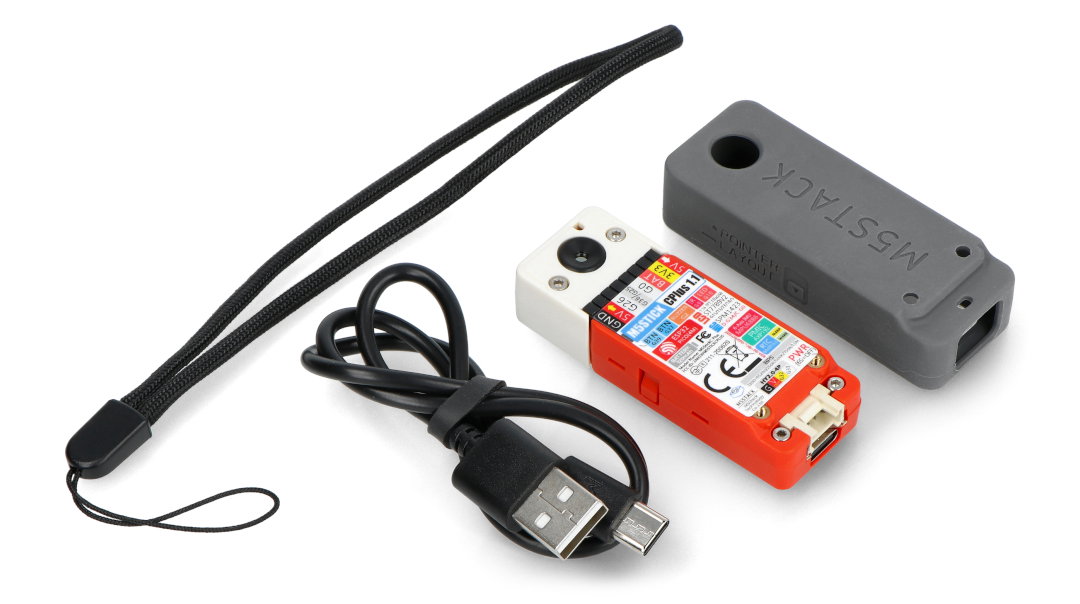

Kit contents
- T-Lite module - M5StickC Plus + thermal imaging camera MLX90640
- Gray casing
- USB A - USB C cable
- Leash in black
