M5StickC 8-Channel Servo Driver hat V1.1 - M5Stack U076-B
M5Stack hat for the M5StickC and M5StickC Plus development modules. It has a built-in STM32F030F4 system, thanks to which it allows you to control up to 8 servos at the same time. The operation of the servo is controlled by pulse width modulation , i.e. by the PWM signal. The maximum load capacity for all channels simultaneously is 4.2 V / 1.3 A. The set is powered by a 16340 lithium battery with a capacity of 700 mAh.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: M5StickC 8-Channel Servo Driver V1.1 - hat cover - M5Stack U076-B
M5Stack hat for the M5StickC and M5StickC Plus development modules. It has a built-in STM32F030F4 system, thanks to which it allows you to control up to 8 servos at the same time. The operation of the servo is controlled by pulse width modulation , i.e. by the PWM signal. The maximum load capacity for all channels simultaneously is 4.2 V / 1.3 A. The set is powered by a 16340 lithium battery with a capacity of 700 mAh.

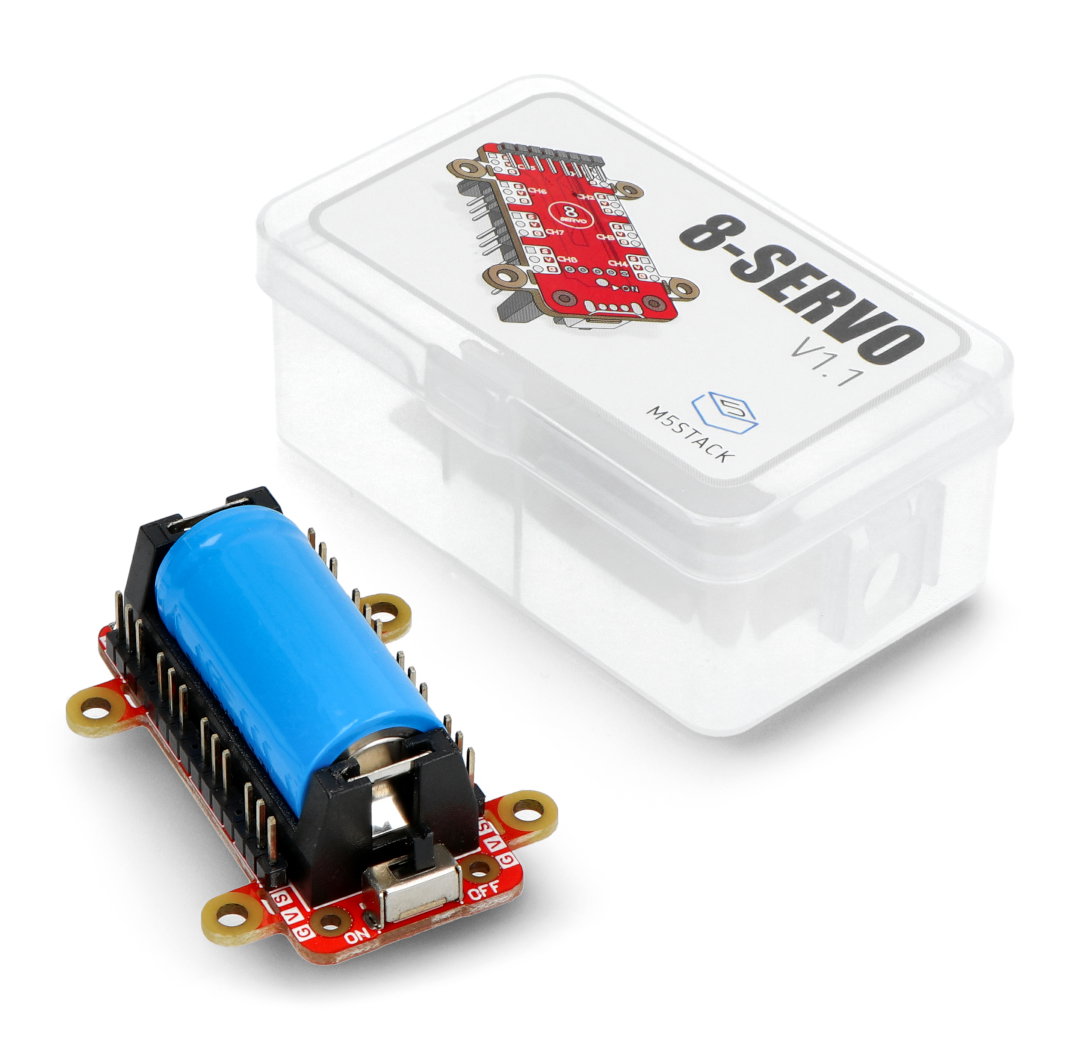

M5StickC 8-Channel Servo Driver V1.1 - kit contents.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.

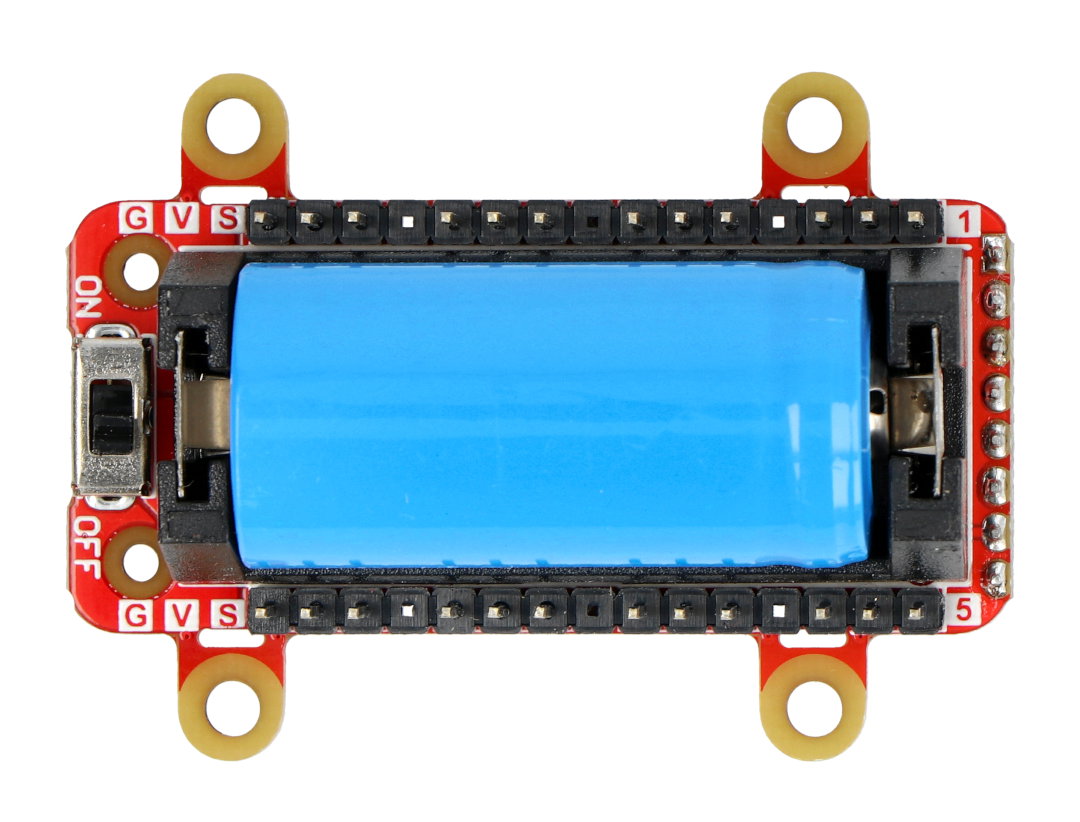

A lithium battery 16340 with a capacity of 700 mAh is included.
Application of the M5Stack overlay
The overlay is compatible with M5StickC / M5StickC Plus modules and can be used to build robots and smart toys - all according to your own design. It allows you to control 8 servos simultaneously , which makes it a great control module for robots with several legs or arms . In our offer you will also find a category fully dedicated to servos that you can use as a modeling servo!
Technical specification of the overlay
- Compatible modules: M5StickC / M5StickC Plus
- Type: servo driver
- Number of channels: 8
- Control: PWM
- Built-in chip: STM32F030F4
- Module version: V1.1
- Maximum 8-channel load capacity: 4.2 V DC / 1.3 A
- Communication interface: I2C bus
- Interface address: 0x36
- Power source: 16340 lithium battery with a capacity of 700 mAh
- Built-in power management circuit to control the on / off of the servo
- Built-in protection against reverse battery connection
- Equipped with 4 M3 mounting holes
- Dimensions: 52 x 38 x 19 mm
- Weight: 28.3 g
Kit contents
- M5StickC 8-Channel Servo Driver V1.1 - hat cover
- Battery 16340 with a capacity of 700 mAh

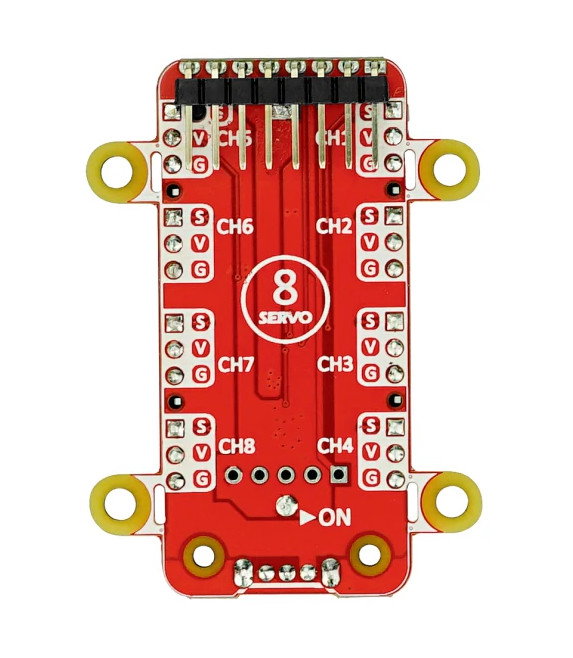

The module has four M3 mounting holes, which allow for a stable mounting.
Useful links
| Name | Value |
|---|---|
| Channels | 8 |
| Sensor - type | motor driver |
| Width | 7.5 cm |
| Height | 4.7 cm |
| Depth | 3 cm |
| Weight | 0.041 kg |
