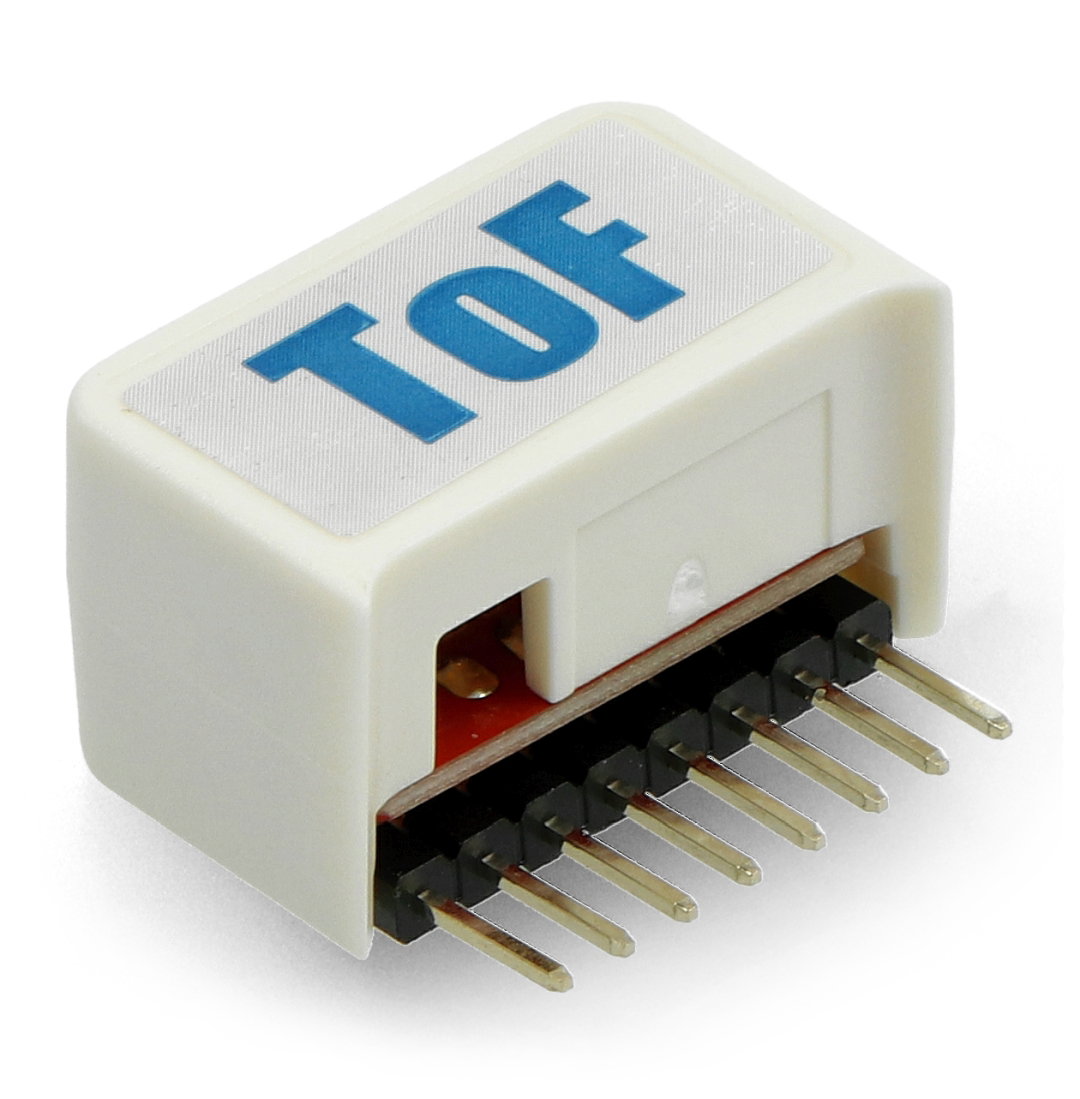

M5Stick ToF Hat - laser distance sensor

Index: MSS-18046 EAN: 6972934171108

Laser distance sensor in the form of ToF Hat overlay, dedicated to the M5StickC module series. The integrated overlay combines two components: VL53L0X and 940nm VCSEL emiter. They provide high precision distance measurements, regardless of the target's reflectance. The maximum measuring range of the sensor is up to 2 m and the laser technology used is invisible to human eye. For communication with the main module, the Stick series uses an I2C interface. The cap has GPIO compliant connectors of the StickC modules, thanks to which their connection does not cause any problems even for beginners.

M5Stick ToF Hat - laser distance sensor
€9.00
€7.32 tax excl.
Delivery 10 pcs scheduled for 2024-12-06
Waiting for delivery
PayPal payment
Manufacturer: M5Stack
Compatibility: M5Stick

Product description: M5Stick ToF Hat - laser distance sensor

Laser distance sensorin the form of ToF Hat overlay, dedicated to the M5Stick Cmodule series. The integrated overlay combines two components: VL53L0X and 940 nm VCSEL emiter. They provide high precision distance measurements, regardless of the target's reflectance. The maximum measuring range of the sensor is up to 2 m and thelaser technology used is invisible to the human eye. For communication with the main module, the Stick series uses an I2C interface. The cap has GPIO compliant connectors of the M5StickC modules, so that their connection is not a problem even for novice users.

Przedmiotem sprzedaży jest nakładka w postaci laserowego czujnika odległości. Moduł deweloperski M5StickC należy zakupić osobno.

The subject of sale is an overlay in the form of a laser distance sensor.
M5StickCdevelopment module must be purchased separately.

Nakładka posiada złącza zgodne z GPIO modułów StickC.

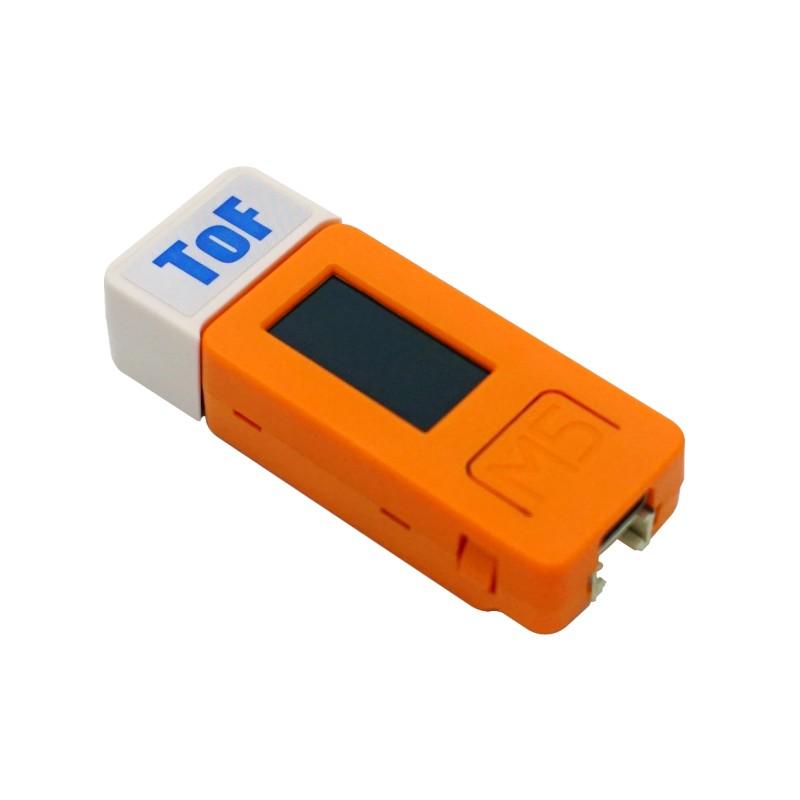

The cover plate has GPIO compliant connectors for M5StickC modules.

Application of the cover plate

  • Laser distance measurement
  • Identification of obstacles
  • Recognition of gestures
  • 3D structural light imaging (3D detection)
  • Camera assistance (depth map and autofocus)

Technical Specification

  • Distance measurement: from 0,3 m to 2 m
  • Laser: VCSEL 940 nm
  • Programming platform: Arduino / Blockly / Python
  • Interface: I2C
  • Button function
  • Dimensions: 24 x 20.3 x 13.8 mm
  • Weight: 8 g
Package width 3.5 cm
Package height 2.5 cm
Package depth 3.5 cm
Package weight 0.008 kg
