Product description: ADC Hat ADS1110 v1.1 - 16-bit I2C ADC converter module - M5Stack U069-V11
The Hat ADC v1.1 is an expansion module for the M5Stick platform , integrating the high-quality ADS1110 ADC . The device utilizes Δ-Σ (Delta-Sigma) technology, offering 16-bit resolution, automatic calibration, and highly accurate analog signal measurement . The module allows for input voltage measurement from 0 V to 12 V thanks to additional input circuitry that extends the standard operating range of the ADS1110. A built-in programmable gain (PGA) amplifier allows for adapting the measurement sensitivity to the requirements of a specific application. Communication is via an I2C bus with address 0x48, enabling easy integration with Arduino , UiFlow, Blockly, and MicroPython-based projects.

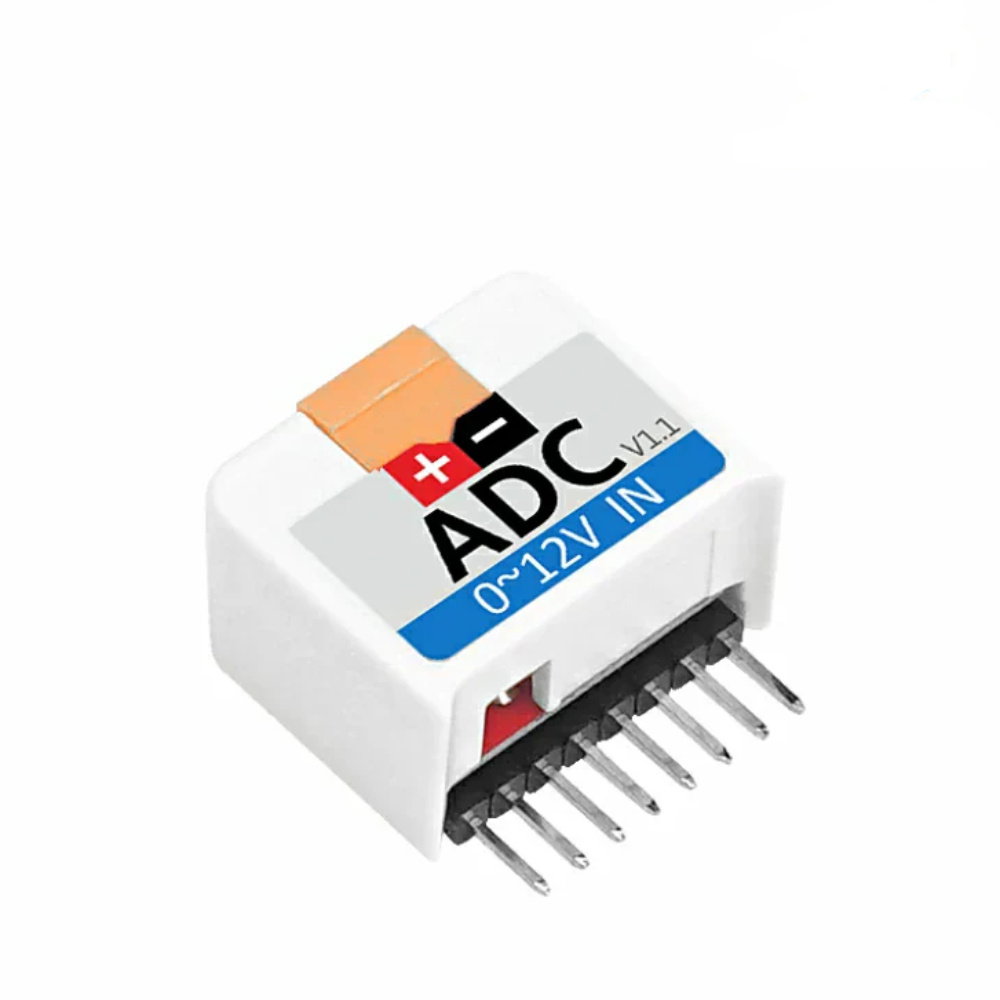

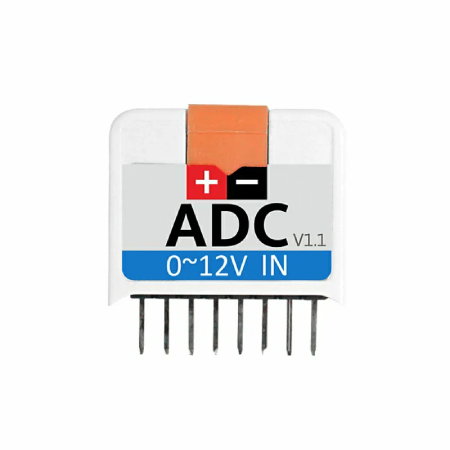

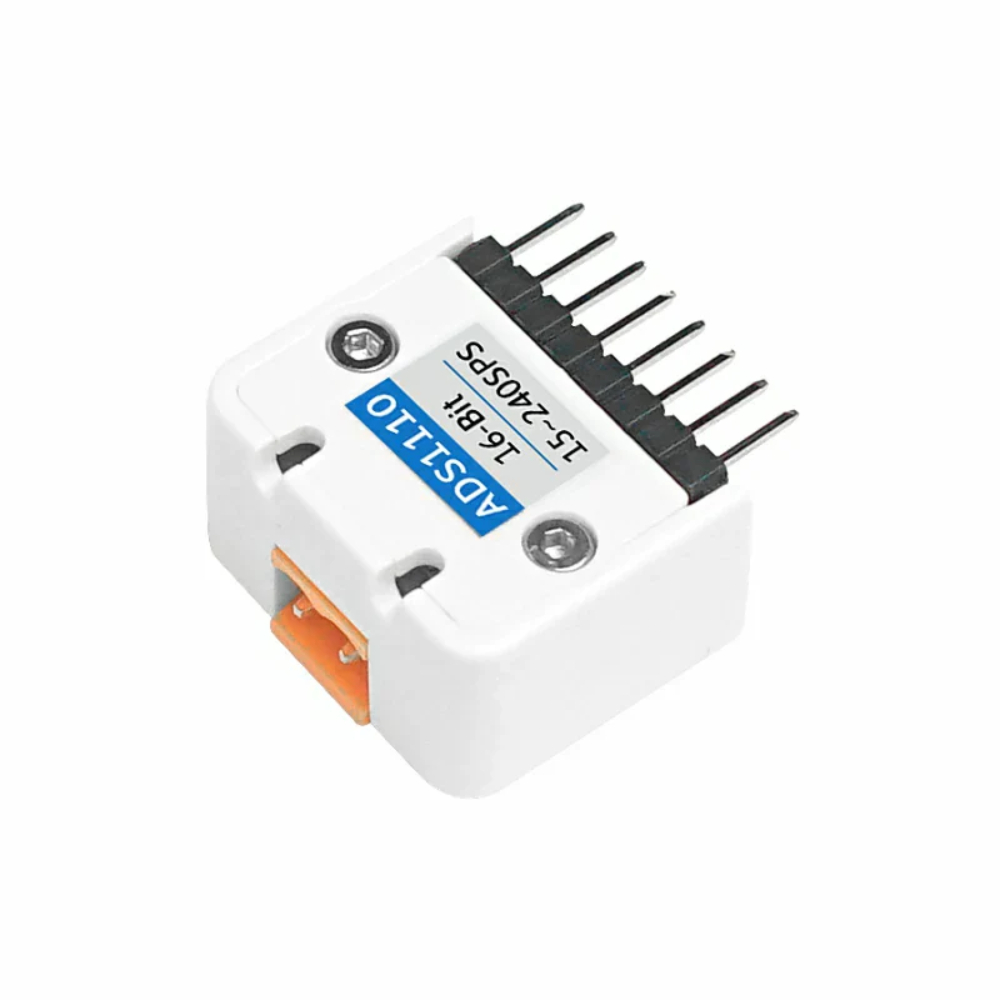

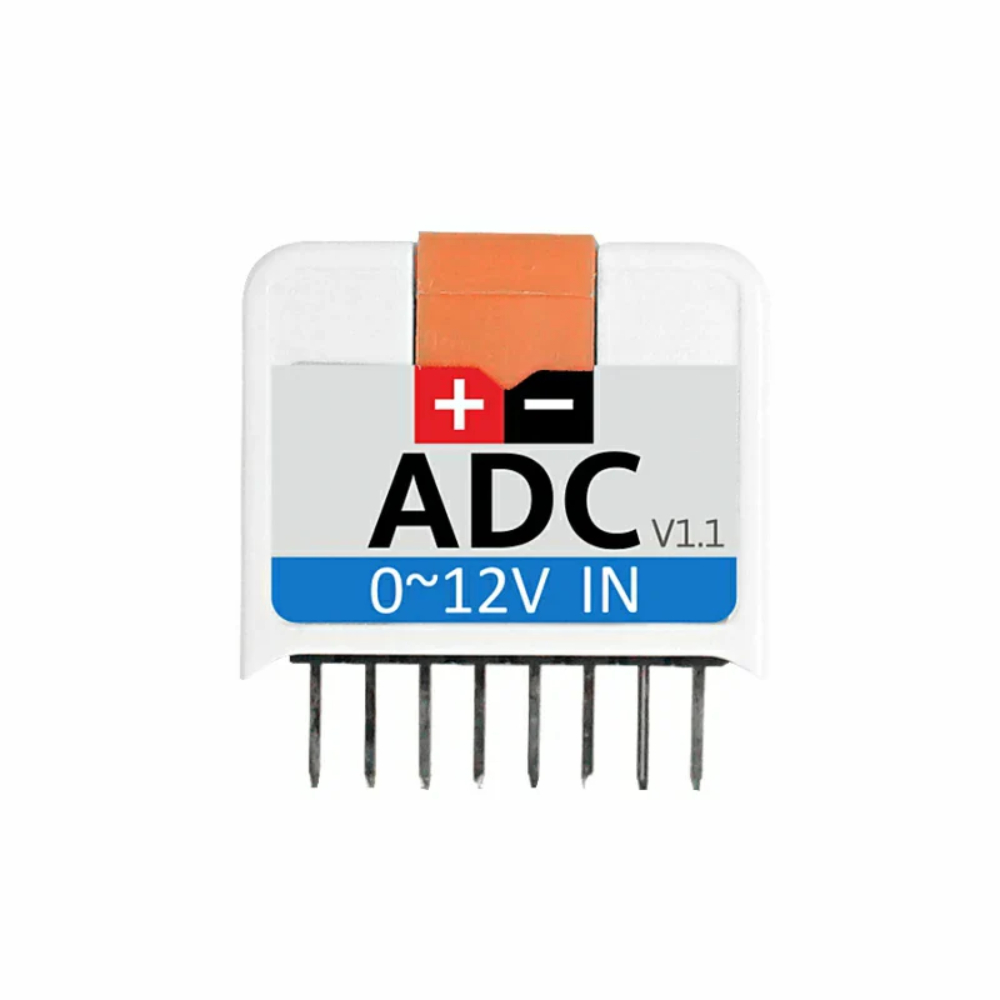

ADC Hat ADS1110 v1.1 - 16-bit I2C ADC converter module - M5Stack U069-V11.
Hat ADC v1.1 is an expansion module for the M5Stick platform, integrating the high-quality ADS1110 ADC.Special features
- ADS1110: Precision 16-bit Delta-Sigma ADC
- Voltage measurement: input range 0 V to 12 V
- I2C communication: easy integration with microcontrollers and M5StickC
- Automatic calibration: stable and accurate measurements
- Programmable PGA amplifier: x1, x2, x4, x8 gain adjustment
- Programmable sampling rate: from 8 SPS to 128 SPS
- Development platform support: Arduino, UiFlow, Blockly, MicroPython
- Compact design: ideal for IoT and embedded projects
Technical specifications
- Model: Hat ADC v1.1
- ADC chip: ADS1110
- ADC resolution: 16 bit
- Conversion type: Delta-Sigma
- Input voltage range: 0 V to 12 V
- Communication: I2C, address: 0x48
- Programmable PGA Gain: x1, x2, x4, x8
- Sampling speed: 8 SPS to 128 SPS
- Automatic calibration: yes
- Built-in clock generator: yes
- Compatibility: M5StickC, Arduino, UiFlow, Blockly, MicroPython
- Dimensions: 24.0 x 24.9 x 13.7 mm
- Weight: 6 g
Contents of the set
- M5StickC ADC Hat ADS1110 v1.1 Module
- Terminal block connector HT3.96-2P
Communication is via the I2C bus with address 0x48, which allows easy integration with projects based on Arduino, UiFlow, Blockly and MicroPython.
