Product description: ETM-01 Light double-leaf gate drive 150 kg 2 m 16 mm/s 24 V - 30 cm extension
The ETM-01 Light swing gate operator from Elektrobim is a modern solution designed for lightweight gates mounted on narrow metal posts. The set includes two 300 mm extension actuators with a metal planetary gear and a safe 24 V motor. The heart of the system is the ETM-DG2 control unit with an intuitive digital display. The ETM-01 Light ensures smooth, fast gate opening at a speed of 16 mm/s , as well as an emergency power supply and manual key release function in the event of a power outage.
Double-leaf gate drive ETM-01 Light 150 kg 2 m 16 mm/s 24 V - extension 30 cm.

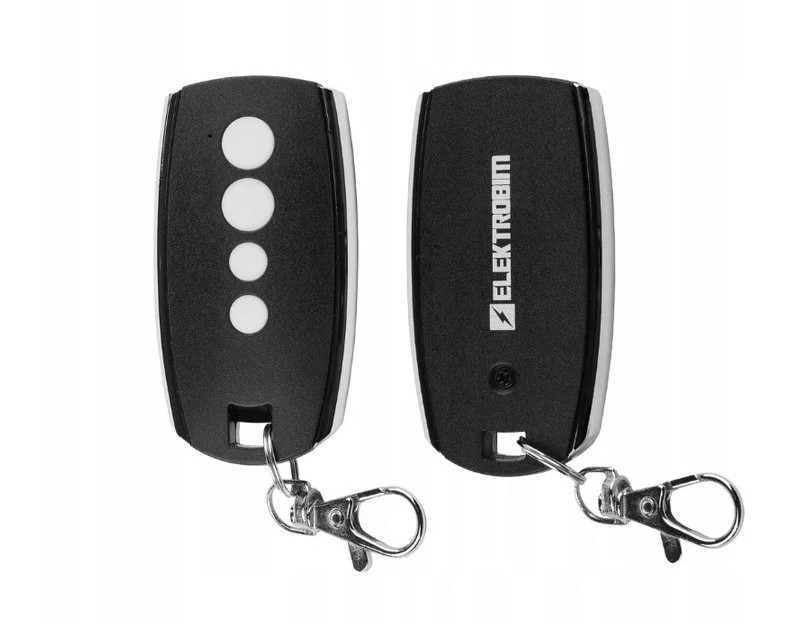

Two four-channel remote controls for controlling the control unit allow for the uploading of additional Elektrobim devices.
ETM-01 Light drive - the perfect choice for lightweight, home swing gates
The ETM-01 Light drive is designed for users seeking a robust yet affordable solution for lightweight swing gates . It supports gates up to 2 meters long and weighing up to 150 kg , making it an ideal choice for gates and entryways installed on private properties. Thanks to its slim design and dedicated brackets , the drive easily mounts on narrow metal posts . The ETM-01 Light does not require an additional electric lock – the gear effectively locks the gate in the event of a power failure.
Self-assembly and convenient configuration
The Elektrobim ETM-01 Light kit is designed for simple installation and intuitive operation. The kit includes brackets, screws, angle brackets, a rubber bumper, and emergency release keys . Clear assembly instructions and a step-by-step video guide complete the package. The manufacturer allows DIY installation without voiding the warranty , making this kit exceptionally user-friendly for home users. Configuration is performed via a convenient digital display on the control panel.

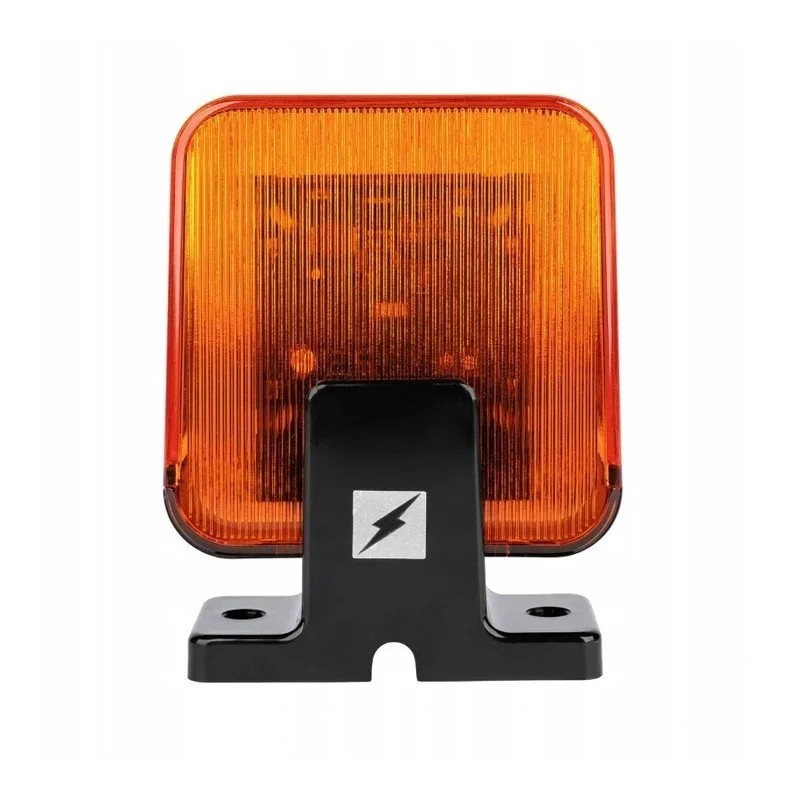

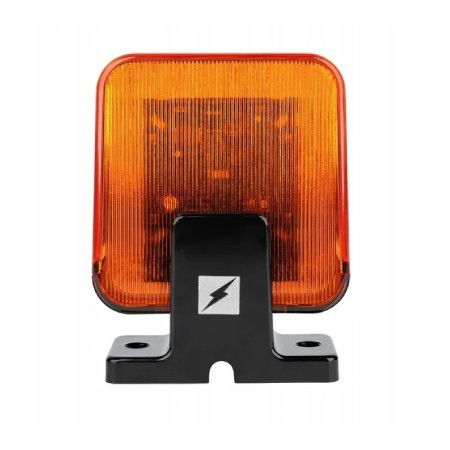

The bright warning light is clearly visible even on sunny days.

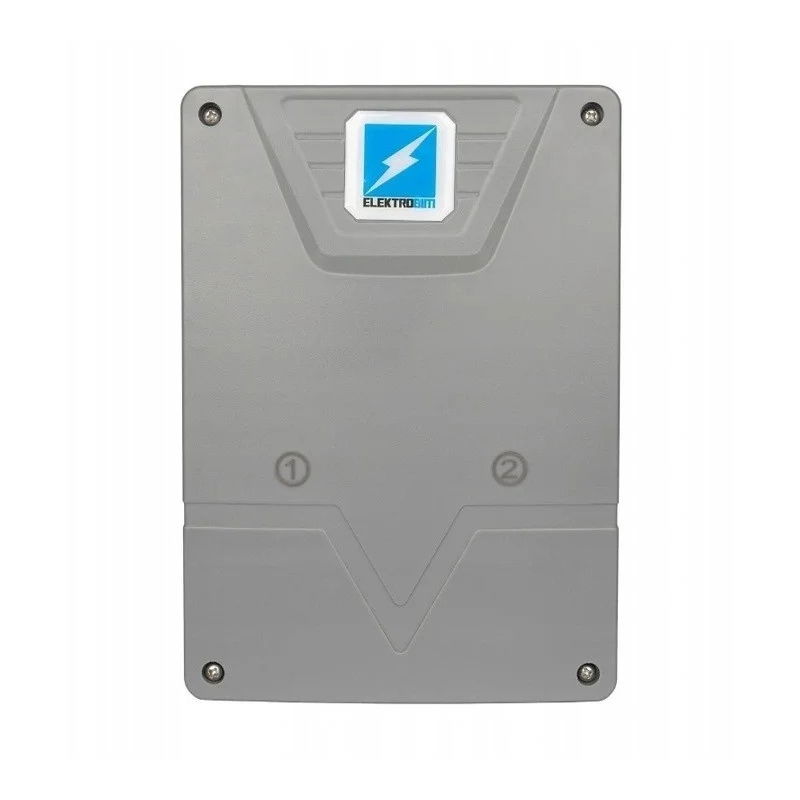

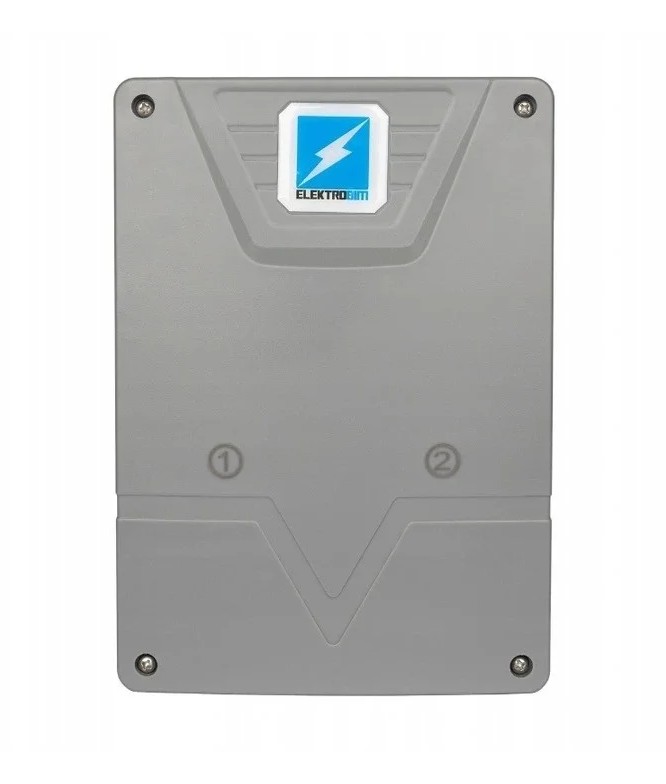

The digital control unit for the set has a number of protections against overvoltage and other threats.
Modern ETM-DG2 control panel - safety and functionality
The heart of the system is the ETM-DG2 control unit, powered by a stable 230 VAC voltage via a toroidal transformer. It offers a full set of functions, including soft start and soft stop, automatic closing, operation of one or two actuators, and the connection of photocells, a warning light, and a backup battery. Built-in thermal, overload, time, optical, and battery protection protect both the device and the user. The system stops operation if an obstacle is encountered or the permissible temperature is exceeded.
Durable construction and weather resistance

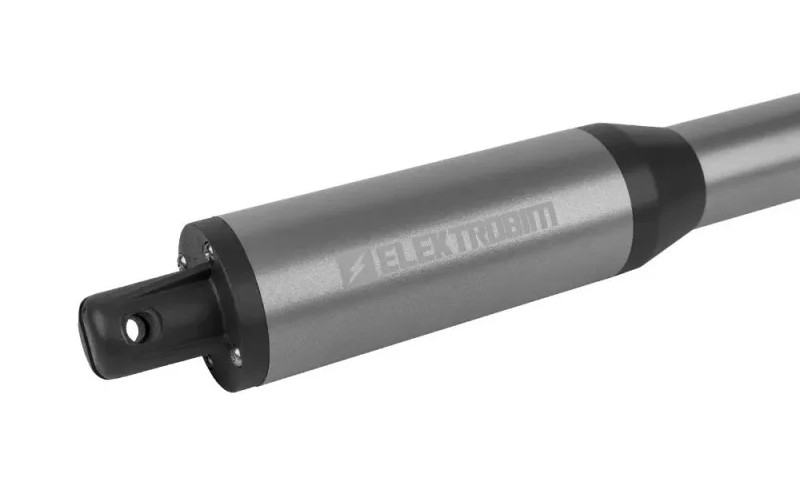

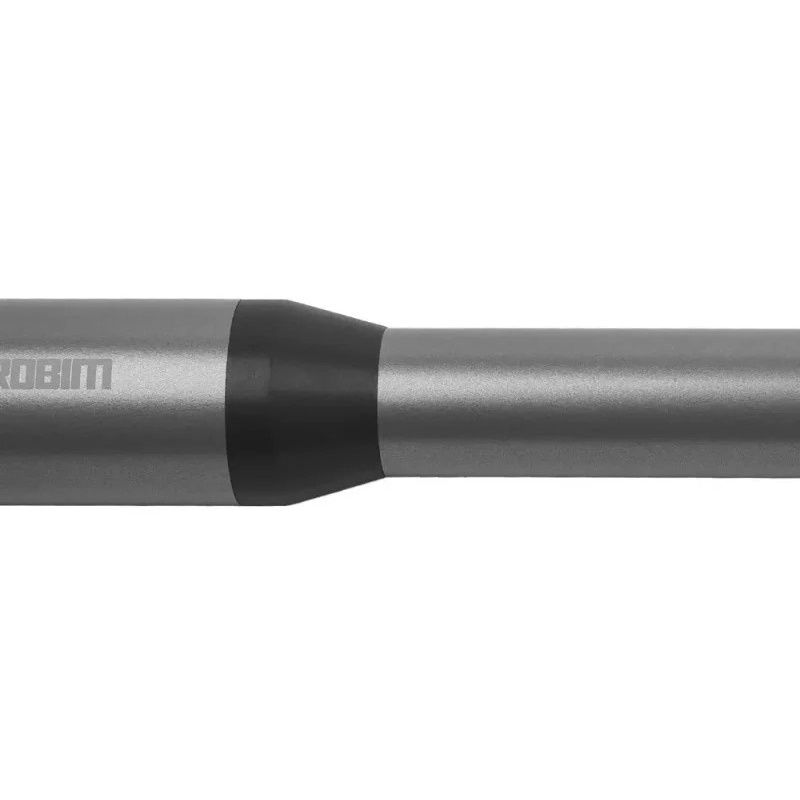

The ETM-01 Light actuator's components are made of high-quality materials, ensuring long life and trouble-free operation even under heavy use. Inside, a metal planetary gear is located, and the piston moves at a speed of 16 mm/s , ensuring rapid opening and closing of the gate. The IP55 rating protects the device from dust and moisture, allowing operation in temperatures from -25°C to 65°C . The actuator's slim design minimizes the appearance of the gate, and in the event of a power outage, you can unlock the device with a key or use the optional backup battery.

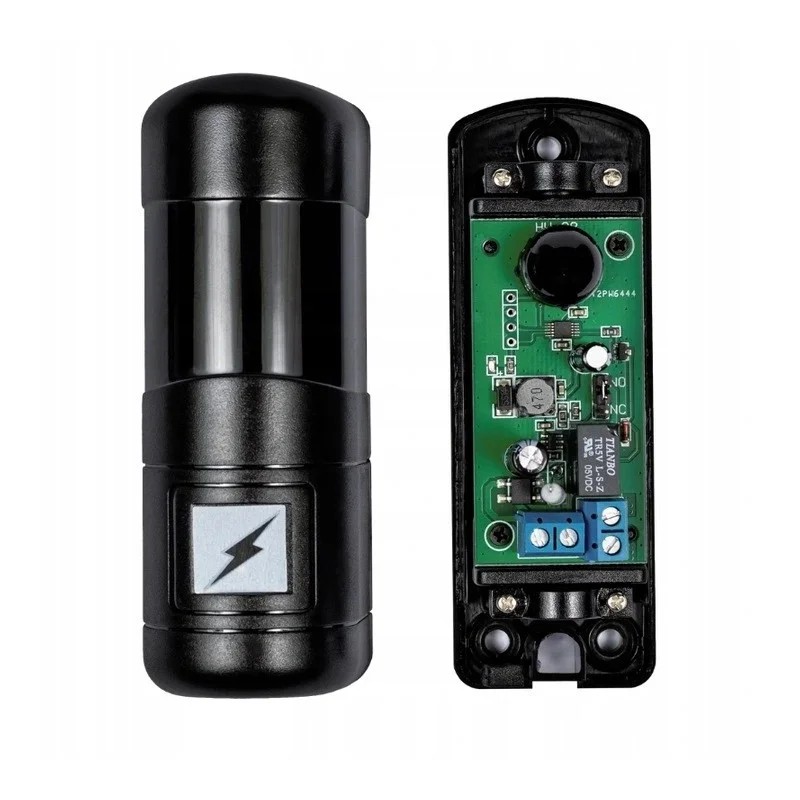

Photocells are an additional safety feature that will stop the gate drive if something interrupts the infrared beam while closing.

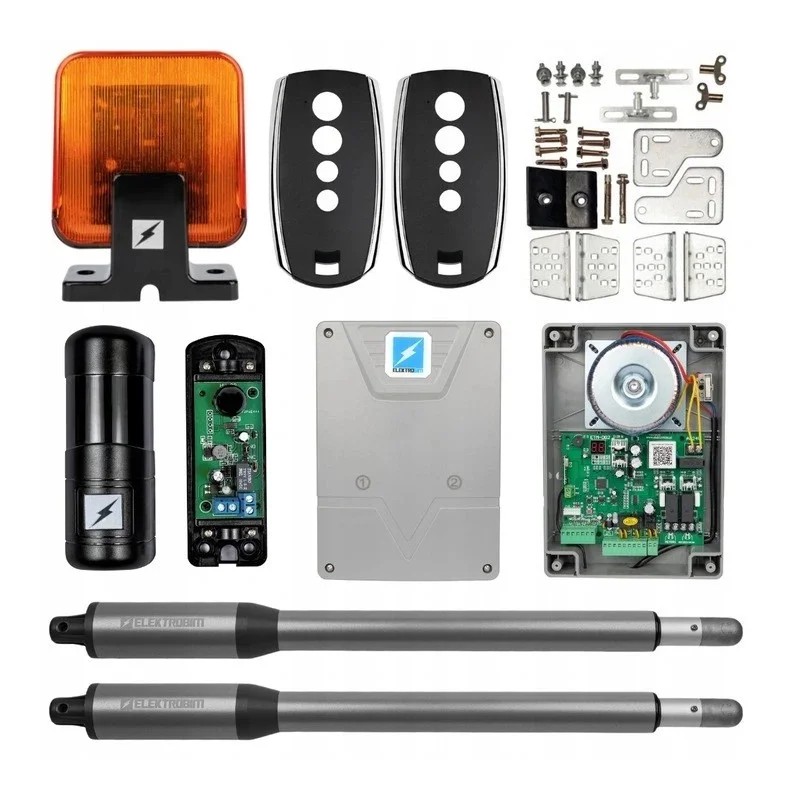

Elements included in the set.
Contents of the set
- 2x ETM-01 Light actuator (300 mm)
- 1x ETM-DG2 control unit
- 2x PS-10 four-channel remote control
- 1x LED signal lamp LS-K
- 1x Set of FK-02 photocells

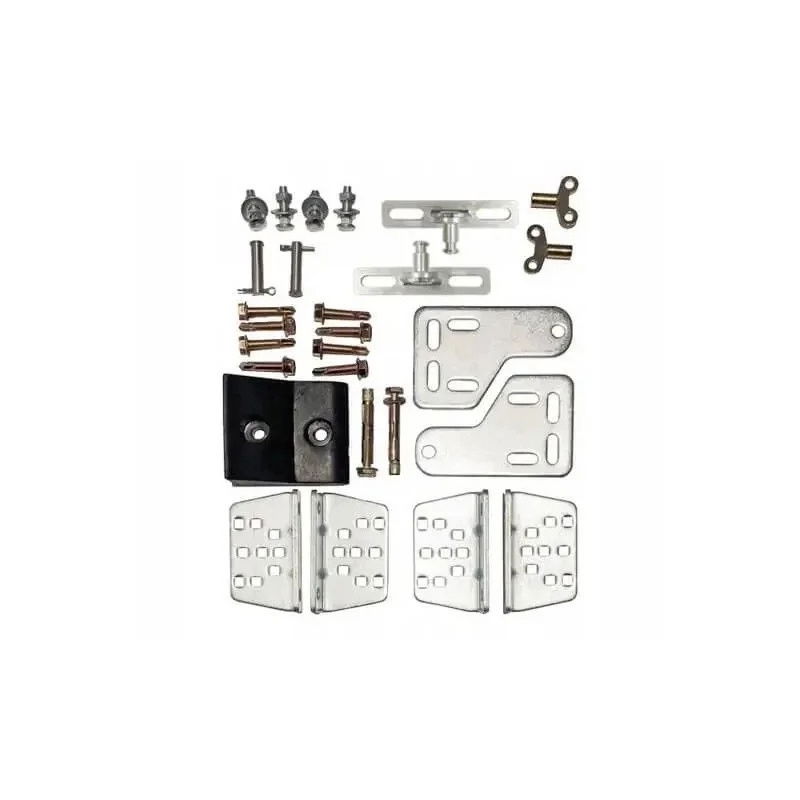

- 1x Set of dedicated mounting angles, screws, handles
- 2x Emergency opening key
- 1x Rubber bumper
- 1x Assembly instructions
| Technical specifications of the ETM-01 Light actuator | |
|---|---|
| Power supply to the control unit | 230V AC ~ 50Hz (+/-10%) |
| Actuator power supply | 24V DC / 40W |
| Arm extension | 300 mm |
| Maximum wing weight | 150 kg |
| Feed speed | 16 mm/s |
| Maximum gate leaf length | 2 m |
| Maximum degree of gate construction | 20% |
| Maximum hinge depth | 10 cm |
| Remote control frequency | 433.92 MHz |
| Maximum remote control range | 100 m |
| Maximum number of pilots | 99 |
| Recommended backup battery | 24 V DC (5 Ah max.) |
| Operating temperature | from -25°C to 65°C |
| Degree of protection | IP55 |
| Number of cycles per day | ≤ 240 |
| Total length when folded | 700 mm |
