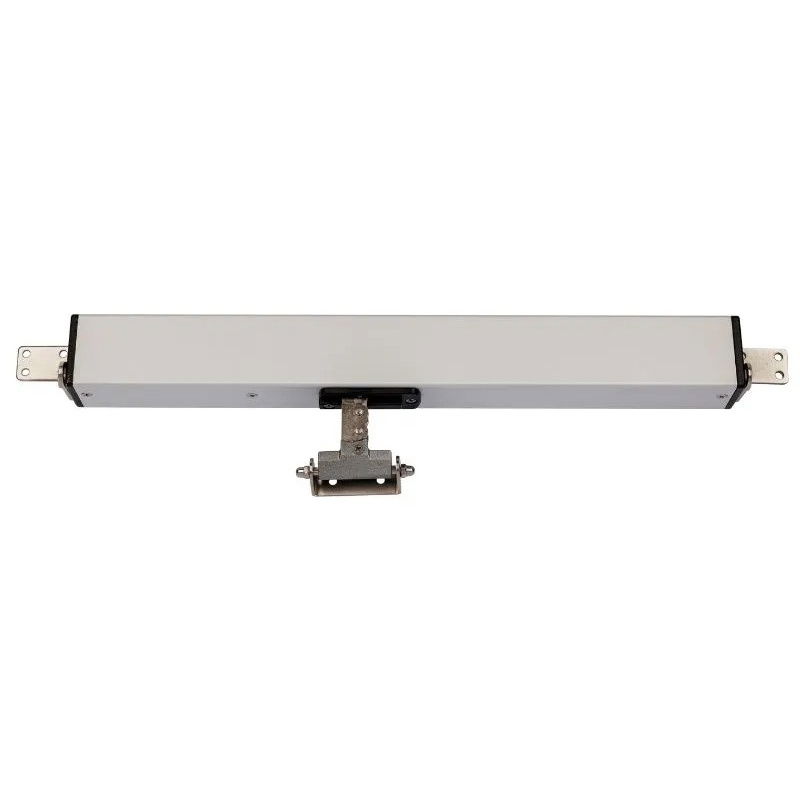

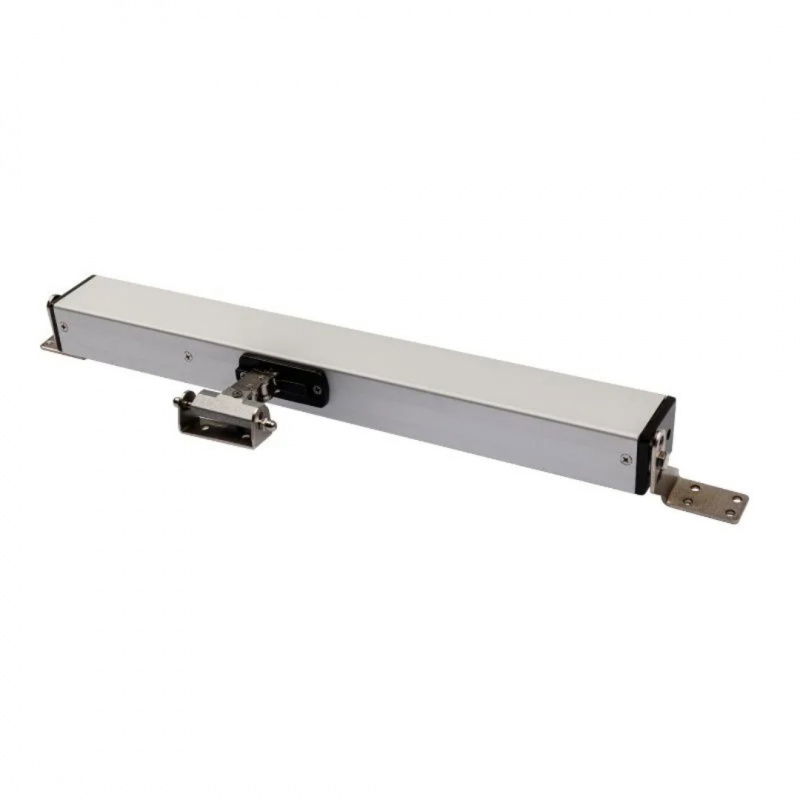

Product description: Electric chain actuator for windows SDO-01 + remote control - 400 N 24 V 15 mm/s - stroke 300 mm
The SDO-01 actuator by Elektrobim has been designed with convenient automation of window systems in mind. The chain-based mechanism enables precise control of the window tilt or close, even in hard-to-reach places. The actuator enables smooth operation of tilt, turn, roof windows and various types of skylights and domes . The drive offers a lifting capacity of up to 400 N , which allows the operation of heavy window structures with a width of 500 mm to 1500 mm , and its holding force of 2000 N effectively protects the open or closed window against uncontrolled movement under the influence of wind or other external factors. The working stroke of the chain is 300 mm , and the no-load speed is 15 mm/s , which ensures quick and comfortable operation. The actuator operates at a safe voltage of 24 V DC , while the controller with a built-in power supply allows easy power supply of the entire system from the 230 V AC network. Thanks to its low noise level (≤ 55 dB), it works perfectly in utility rooms, without disturbing everyday work or rest.
Electric chain actuator for windows SDO-01 + remote control - 400 N 24 V 15 mm/s - stroke 300 mm.
The set is equipped with an appropriate controller with a built-in power supply.
Main features of the actuator

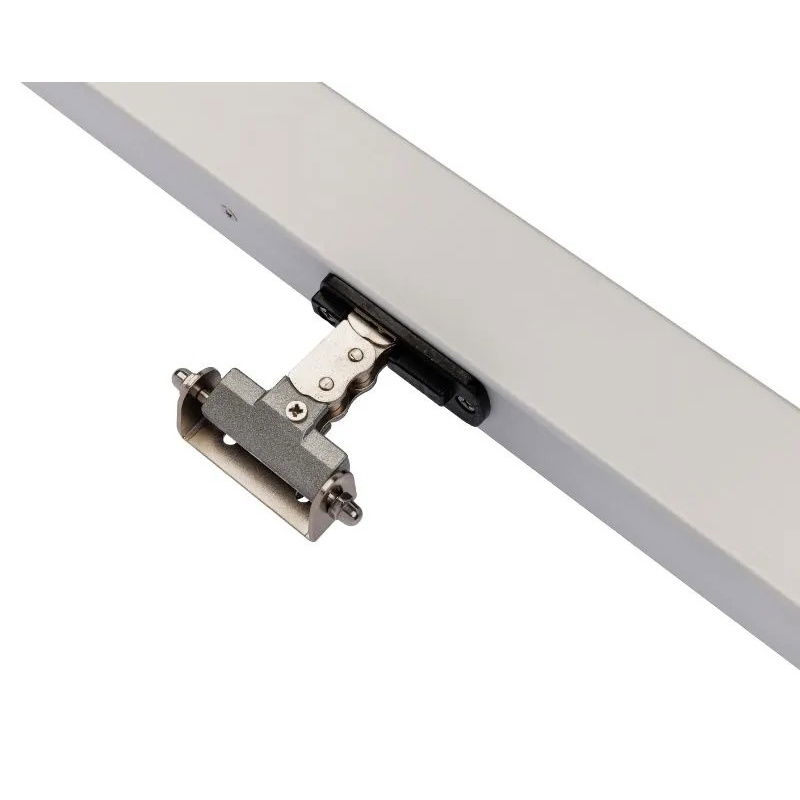

- Chain drive mechanism : smooth and safe opening and closing of windows
- Load capacity up to 400 N : handling heavy window sashes
- Holding force of 2000 N : effective securing of the window position
- Safe operating voltage 24 V DC : compatible with low voltage installations
- Built-in controller with 230 V AC power supply : simplified installation and reduced assembly costs
- Protection : overload and anti-crush
- Window width range : from 500 mm to 1500 mm
- Chain travel 300 mm : adjustable vent to suit your needs
- Quiet operation : noise level ≤ 55 dB
Control and safety
The SDO-01 actuator is operated using buttons on the controller or remote control . Bistable operation allows you to open and close the window with one press, without having to hold the button. The overload protection function automatically stops the actuator when it encounters an obstacle , protecting the device and the user. Additionally, the actuator meets the requirements of category III overvoltage protection, which increases the safety of use in electrical systems of buildings.
Practical applications
SDO-01 is perfect for single-family homes, schools, offices, sports facilities, warehouses, offices and production halls . Thanks to its solid construction and high holding force, it enables automatic control of single and combined windows, skylights and ventilation flaps. The system significantly improves ventilation comfort and user safety through the possibility of remote control.

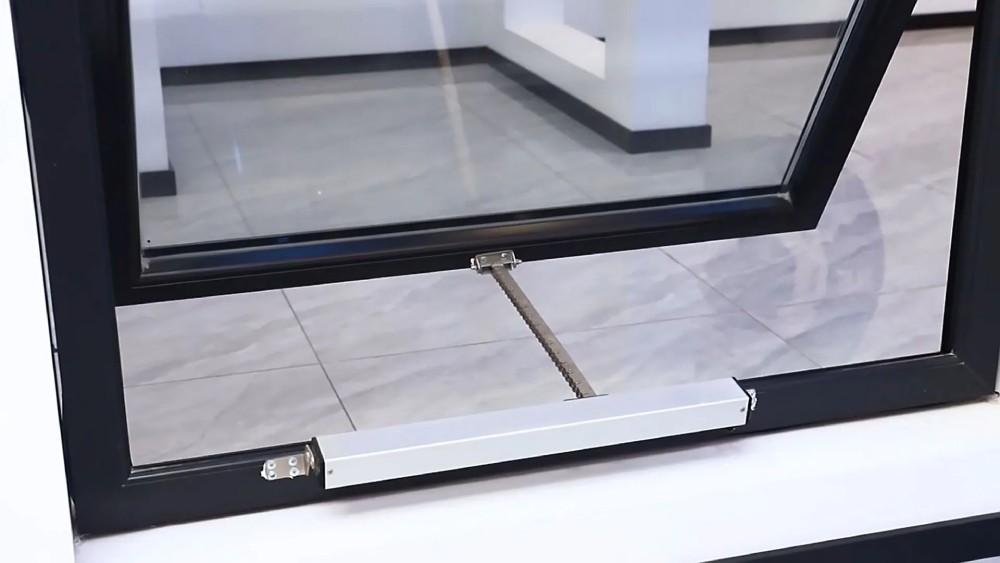

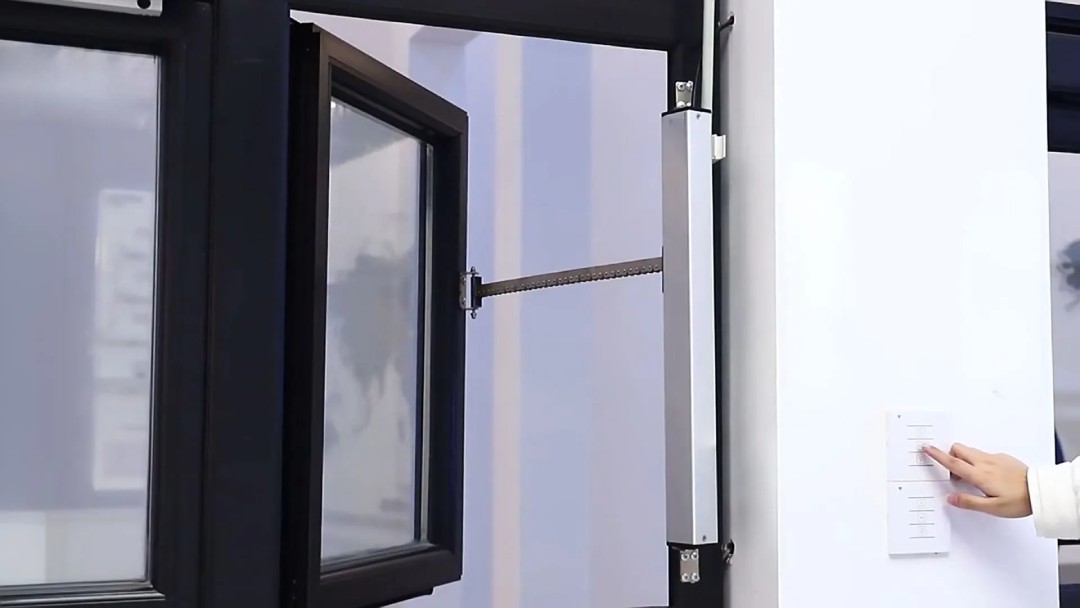

SDO-01 is designed for automatic window control.

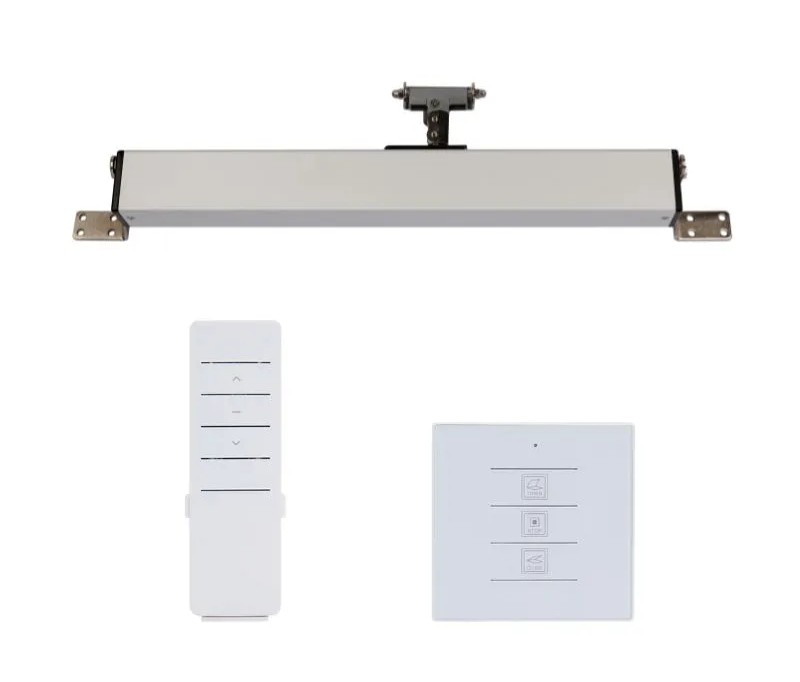

Items included in the set.
Technical specification of the actuator
- Controller power supply: 230 V AC, 50 Hz
- Motor power supply: 24V DC
- Nominal current: ≤ 1.2 A
- Power consumption: 28.8 W
- Load capacity: 400 N
- Holding force: 2000 N
- Chain travel: 300 mm
- Working speed (no load): 15 mm/s
- Window width range: 500 mm to 1500 mm
- Noise level: ≤ 55 dB
- Degree of protection: IP30
- Operating temperature: -5°C to 45°C
- Duty cycle: 10% (maximum 1 minute of continuous operation)
- Type of mechanism: chain
- Protection: overload protection

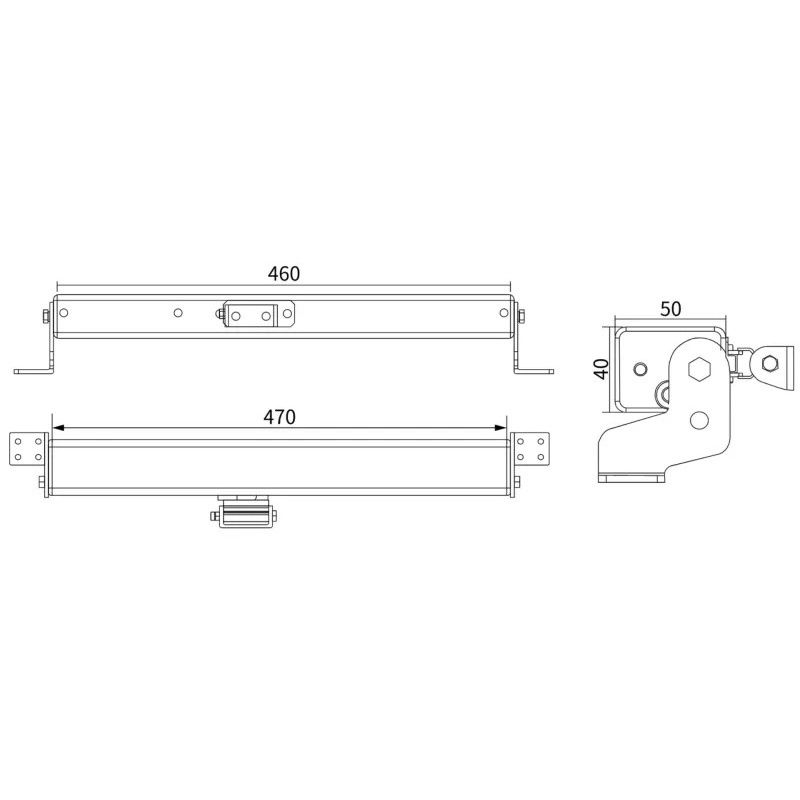

- Actuator dimensions: 470 mm (total length) x 50 mm (height with handle) x 40 mm (handle width)
- Controller dimensions: 86 x 86 x 26 mm

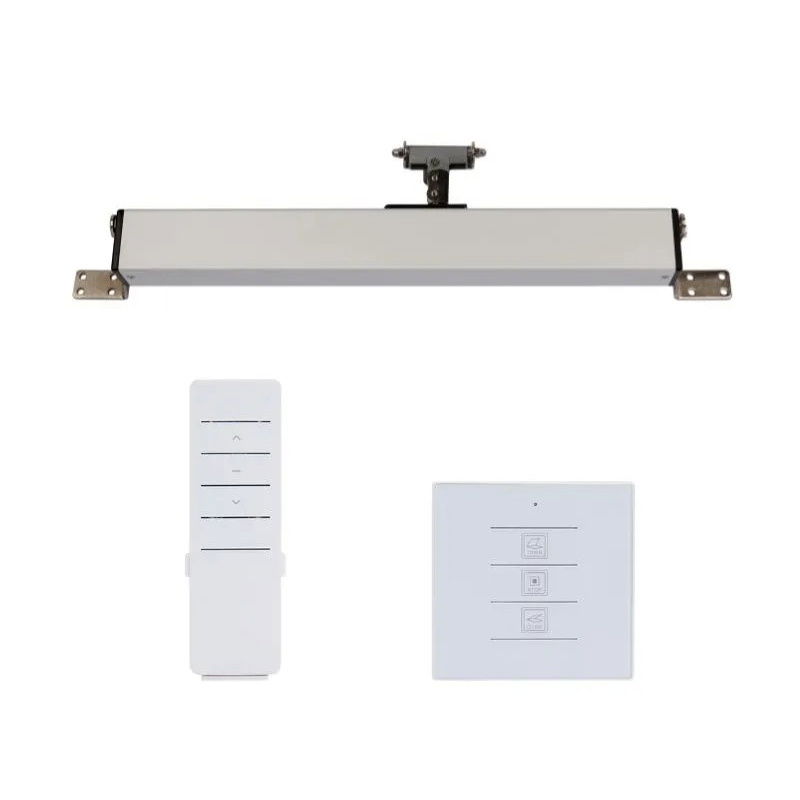

Kit Contents
- Electric chain actuator SDO-01

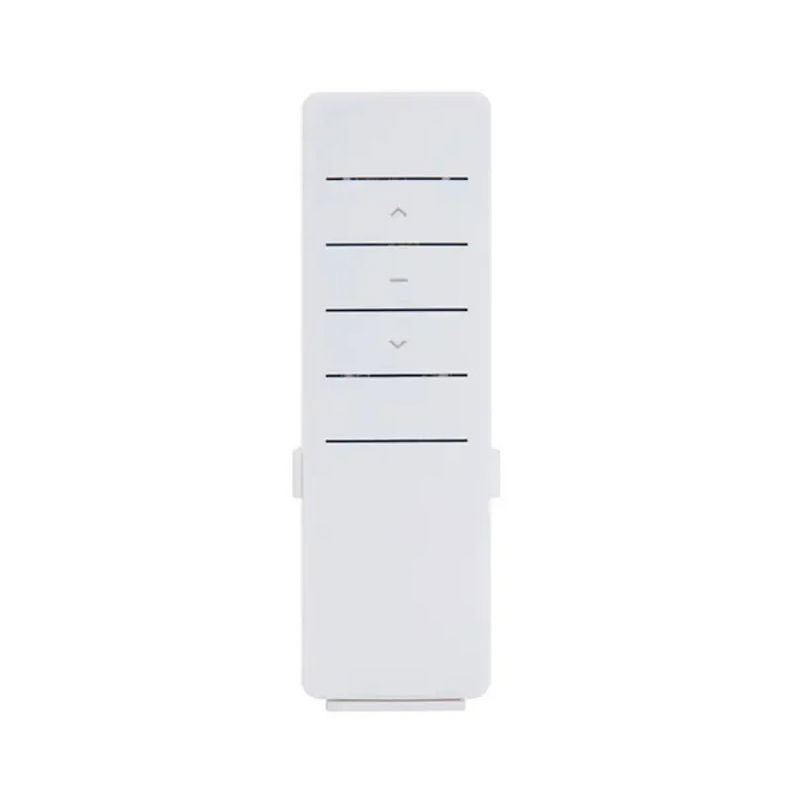

- Remote control

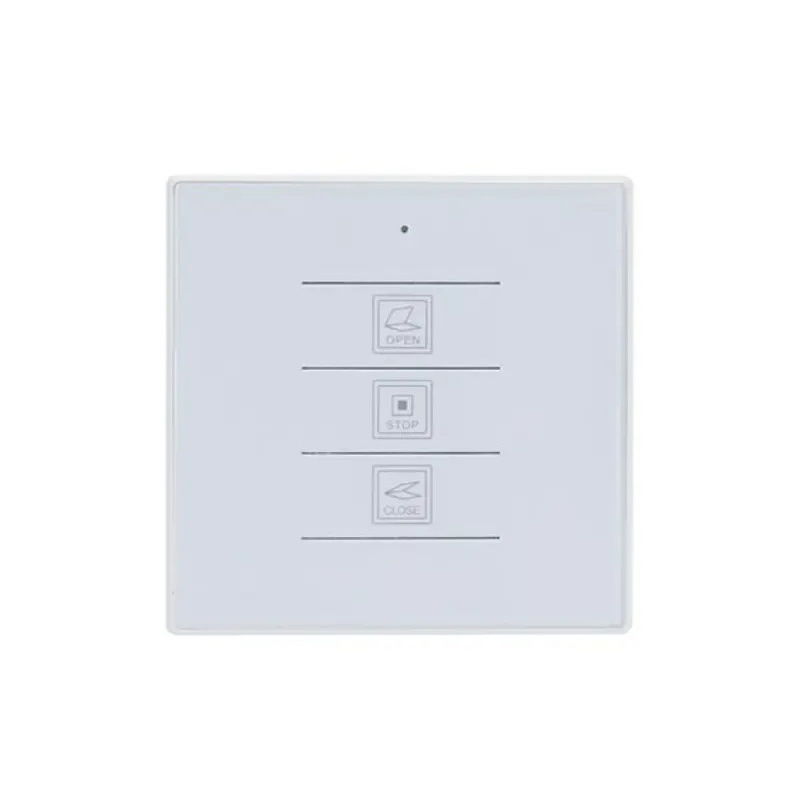

- Touch control panel
- Actuator mounting bracket
- Fixing pin

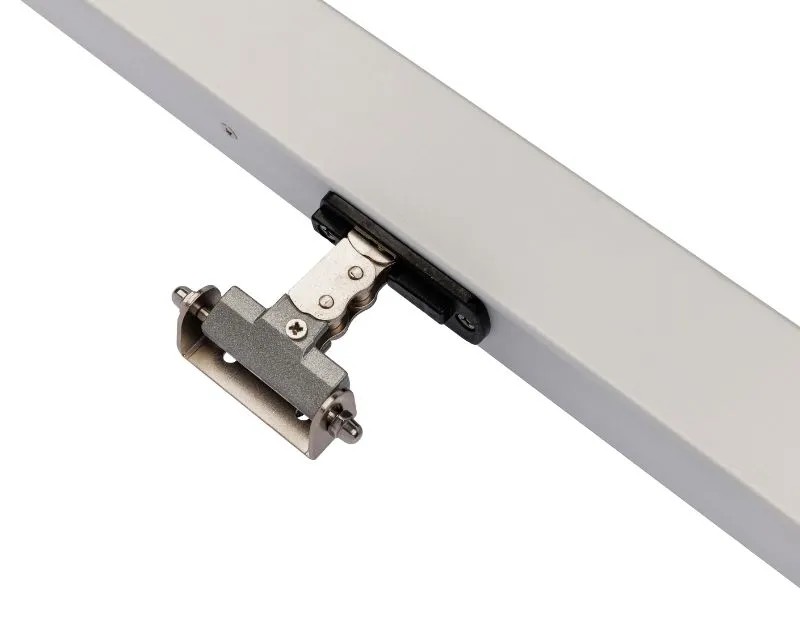

- Chain mounting bracket
- Actuator screws
