Product description: Electric actuator for a double-leaf gate ETM-02 350 kg 24 mm/s 24 V - extension 40 cm
The ETM-02 double-leaf gate operator from Elektrobim is the ideal solution for those seeking reliable gate automation. Thanks to modern technology and a robust design, this operator ensures quiet, stable, and fast operation, even in difficult weather conditions. Powered by 24V , it offers a high- power 60W motor , allowing it to power large-leaf gates weighing up to 350kg . An extension speed of 24mm/s ensures lightning-fast opening and closing, ensuring convenience and comfort in everyday use. The operator also features a declutching function , allowing for manual opening of the gate in the event of a power outage.

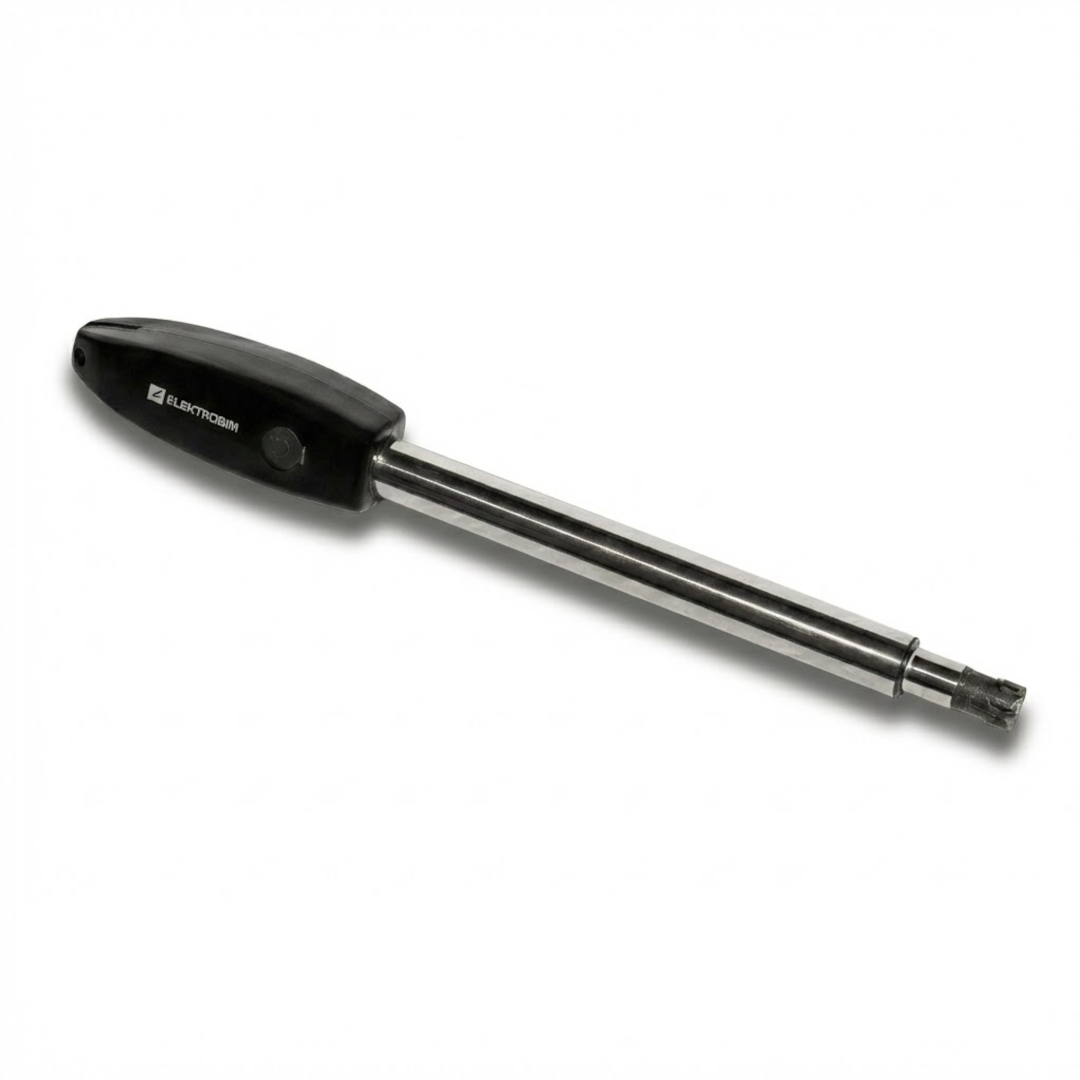

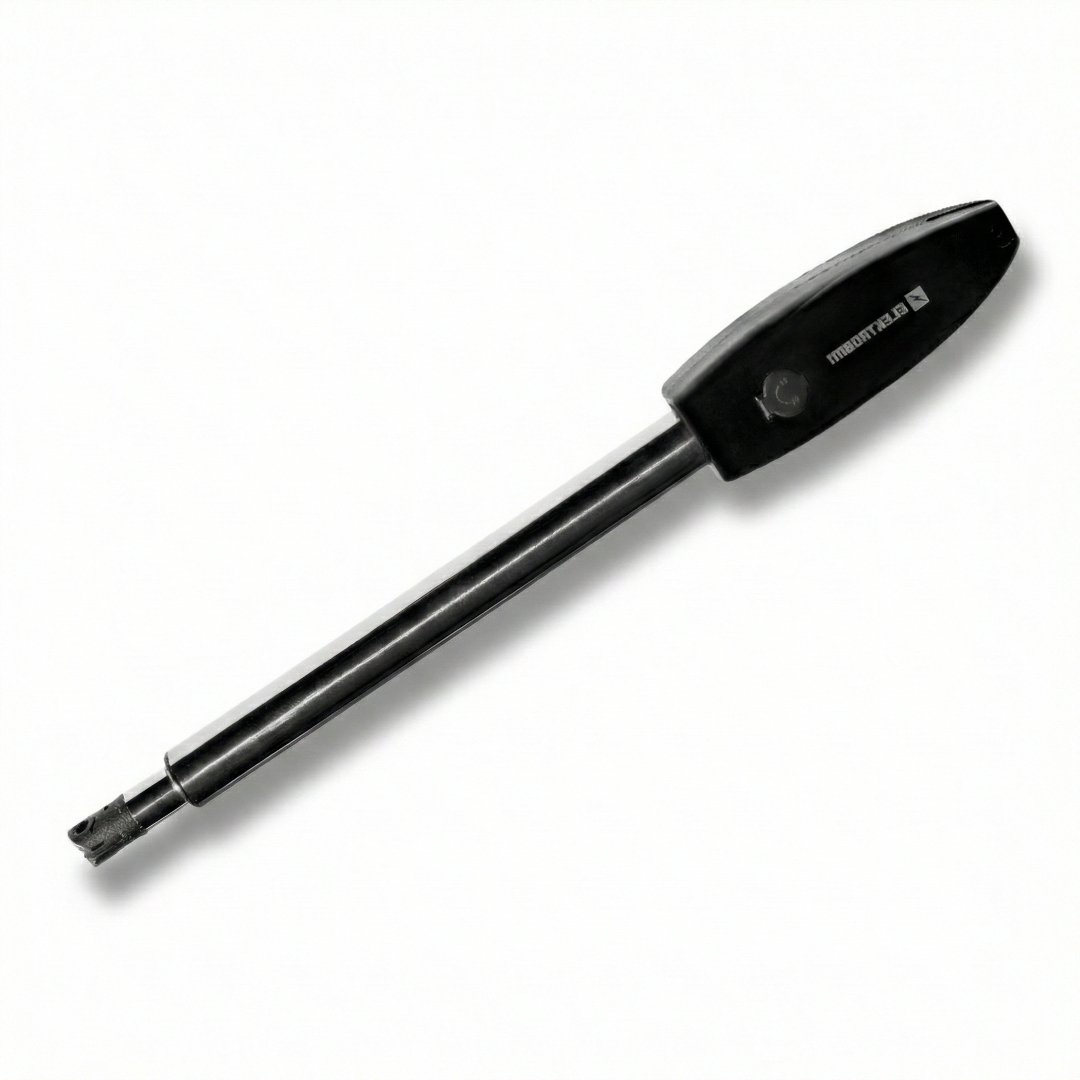

Electric actuator for double-leaf gate ETM-02 350 kg 24 mm/s 24 V - extension 40 cm.

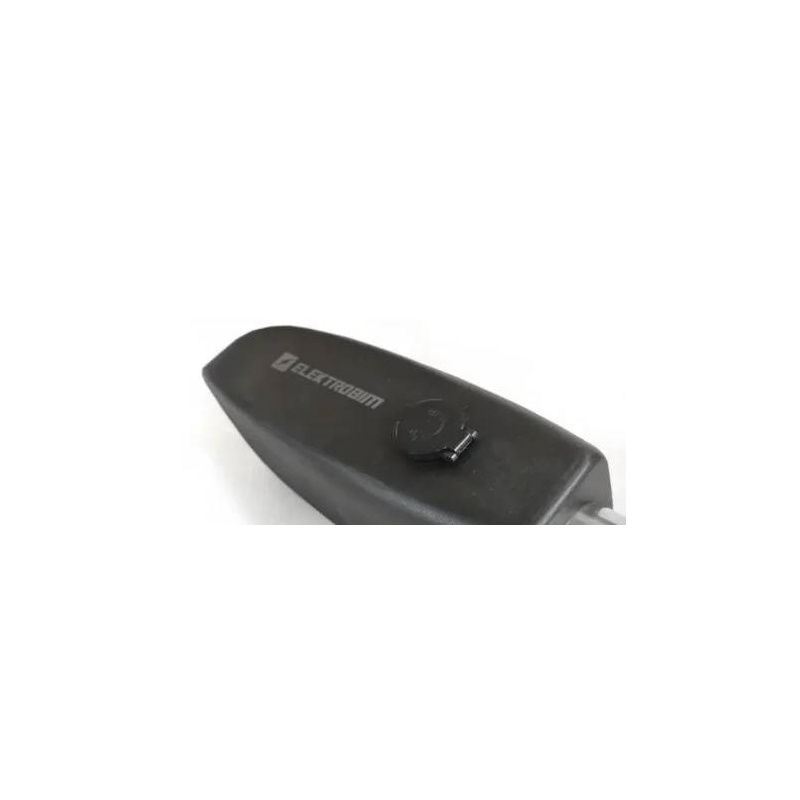

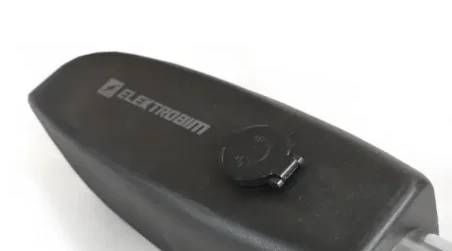

The ETM-02 has a function of disengaging the gear using a special key.
Main features of the ETM-02 actuator
- Maximum leaf length 3.5 m: supports gates with large leaf widths
- Maximum leaf weight up to 350 kg: ensures reliability even in the case of heavy gates
- Maximum leaf coverage of 90%: ideal for gates with a high degree of filling
- Piston rod extension up to 400 mm: allows the gate to be fully opened and closed
- Extension speed 24 mm/s: quick opening and closing of the gate
- 24V DC power supply: energy efficient and easy to install
- Declutch function: allows manual opening of the gate in the event of a power failure
- IP55 protection class: resistance to rain, dust and other harsh weather conditions
Connecting and mounting the actuator
Installing the ETM-02 motor is easy and intuitive. The motor can be mounted on both narrow and wide posts, with a hinge depth of up to 23 cm . The set includes all necessary mounting brackets, allowing for quick and secure installation of the motor. The electrical connection requires a 230 V AC power supply for the control unit and a 24 V DC power supply for the motor . The motor is equipped with a release function, allowing for manual opening of the gate in the event of a power outage. The set is also compatible with 24 V DC batteries (max. 5 Ah), ensuring emergency power supply in the event of a power outage. Thanks to the included installation instructions, the entire process is simple and quick, and the actuator can be installed without the need for specialist knowledge.
Gate actuator is designed for wings up to 3.5 m long and weighing up to 350 kg.

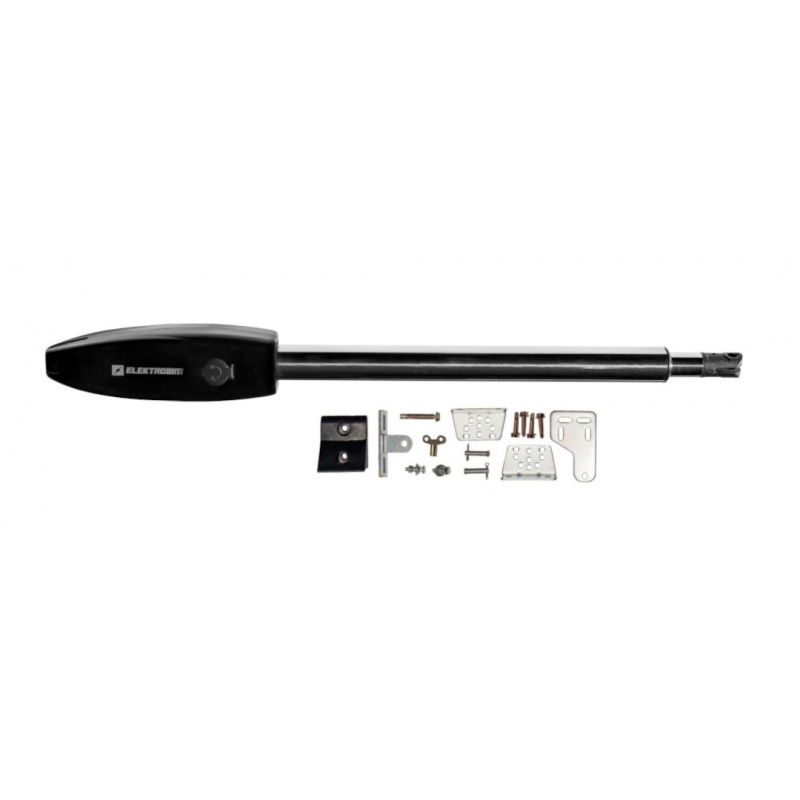

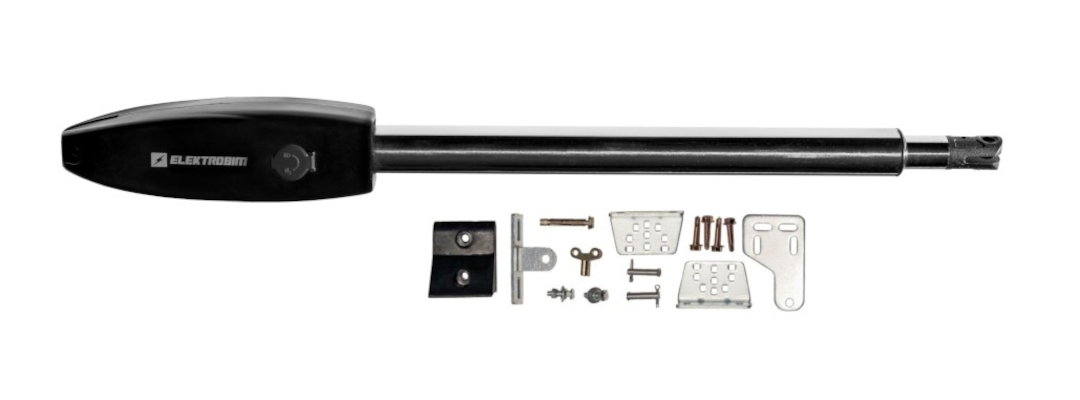

Elements included in the set.
Practical applications
The ETM-02 actuator is perfect for any location requiring automation of a large double-leaf gate . It can be successfully installed in single-family homes, businesses, and residential areas. Its quick opening and closing ensures comfort and time savings, while its reliability in harsh weather conditions ensures long-term use without the worry of failure. The release function allows for manual opening of the gate in the event of a power outage , which is a crucial safety feature.
Contents of the set
- ETM-02 double-leaf gate actuator
- Mounting brackets and screws
- Clutch release key
| Technical specifications of the ETM-02 actuator | |
|---|---|
| Power supply to the control unit | 230V AC ~ 50Hz (+/-10%) |
| Actuator power supply | 24V DC / 60W |
| Arm extension | 400 mm |
| Maximum wing weight | 350 kg |
| Feed speed | 24 mm/s |
| Maximum gate leaf length | 3.5 m |
| Maximum degree of gate construction | 90% |
| Maximum hinge depth | 23 cm |
| Remote control frequency | 433.92 MHz |
| Maximum remote control range | 100 m |
| Maximum number of pilots | 99 |
| Recommended backup battery | 24 V DC (5 Ah max.) |
| Operating temperature | from -25°C to 65°C |
| Degree of protection | IP55 |
| Number of cycles per day | ≤ 480 |
| Total length when folded | 820 mm |
