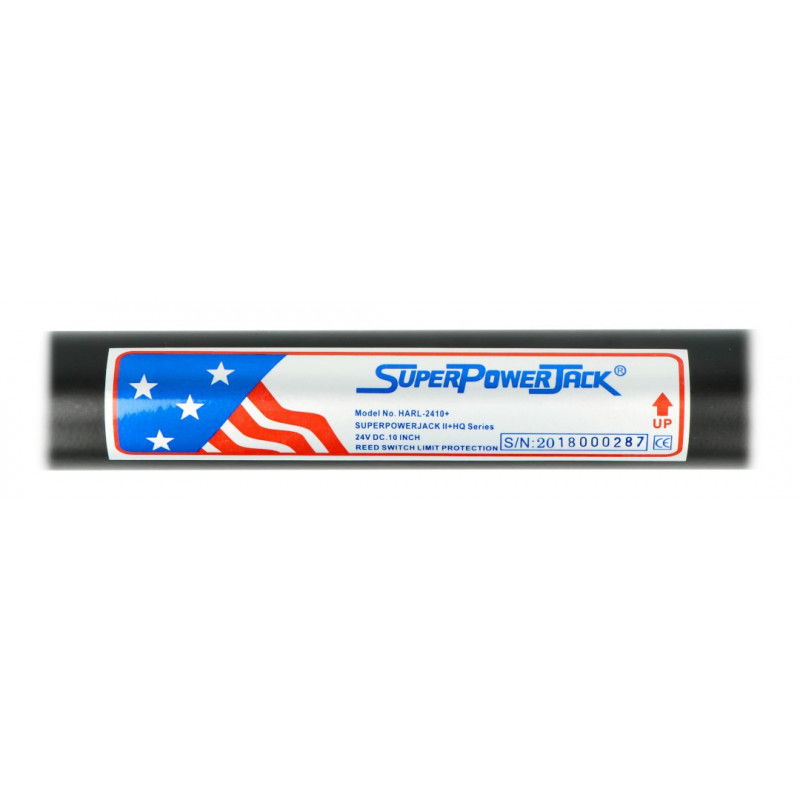

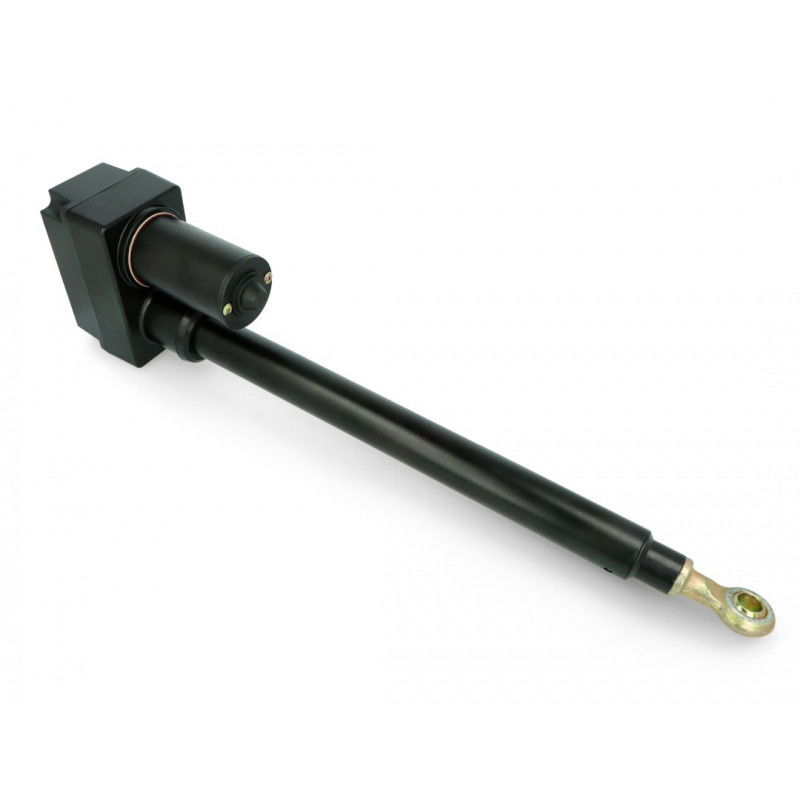

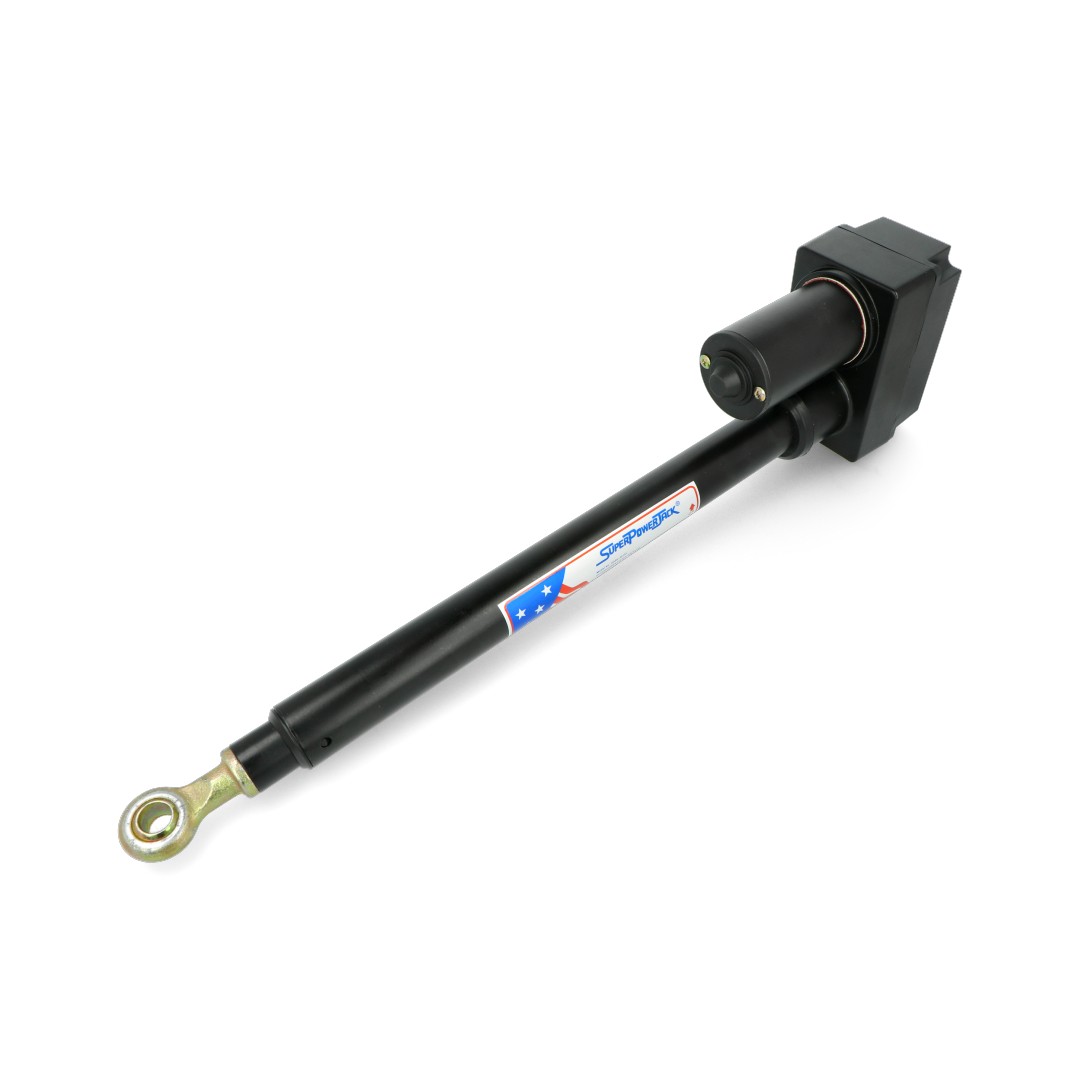

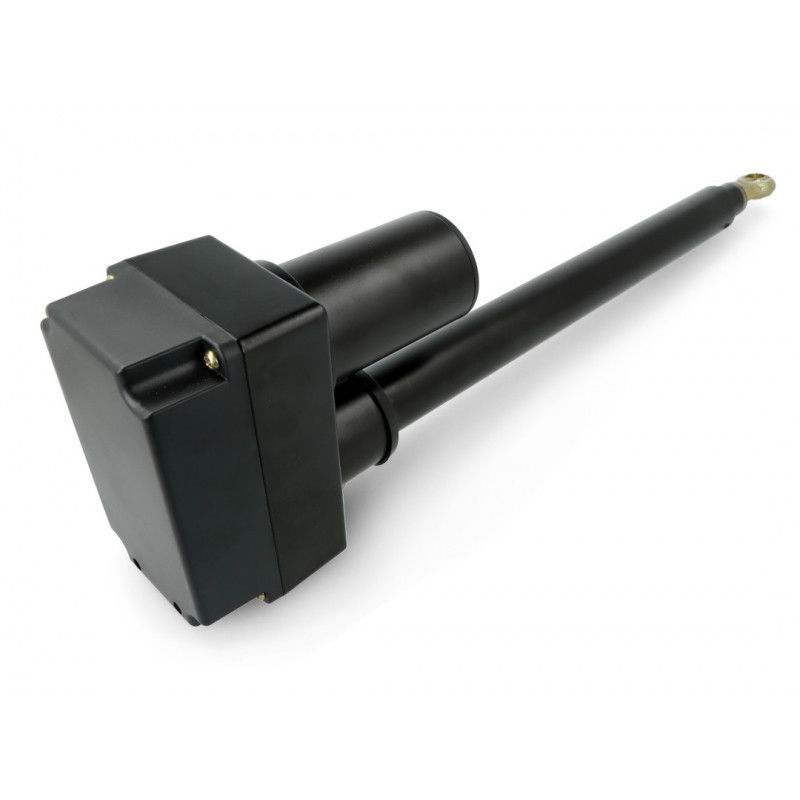

Product description: Super Power Jack 2000 N 7.5 mm/s 24 V electric actuator - 25 cm extension
Super Power Jack electric actuator powered by 24 VDC.The unit has a 2000 N (200 kg) load capacityand operates at7.5 mm/sec. The unit's current consumption is up to 2.1 A, giving a maximum motor power of 50 W. The actuator is equipped with a 48 pulses per inch resolution to provide information about the current position of the actuator. Built-inlimit switchesprotect the device against exceeding the extension range. The direction of movement of the actuator is changed by reversing the polarity as it is done inDC motors.
|
We offer awide range of actuators with different extensionand torque. |
Main features of the Super Power jack 2000 N 7.5 mm/s 24 V electric actuator - 25 cm extension
- High load capacity up to 200 kg
- Stability of operation under various weather conditions
- Convenient attachment of the actuator
- Safe voltage: DC 24 V
- High resistance to unfavourable working environments
- Exact adjustment of the extension rate
- Unlimited application possibilities for the actuator
- Available in different voltage versions: 12 V, 24 V, 36 V
Super Power Jack 2000 N 7.5 mm/s 24 V - 25 cm extension
The manufacturer has prepared video instructions on how to adjust the limit switches in the actuator.
Super Power Jack 2000 N 7.5 mm/s 24 V electric actuator control - 25 cm extension
- Radio, via remote control configured with the control panel
- Push-buttons for manual operation on cables
- Automation of sensor-based operation
Technical specification of Super Power Jack 2000 N 7.5 mm/s 24 V electric actuator - 25 cm extension
| Name | Parameter |
|---|---|
| Supply voltage | 24 V DC |
| Current consumption | up to 2.1 A |
| Resolution of the built-in pulser | 48 pulses per inch |
| Speed | 7.5 mm/s |
| Maximum power | 2000 N (200 kg) |
| Extension length | 250 mm |
| Overall length in folded condition | 500 mm |
| Diameter | 32 mm |
|
Bottom body dimensions (DxSxG) |
120 x 72 x 50 mm |

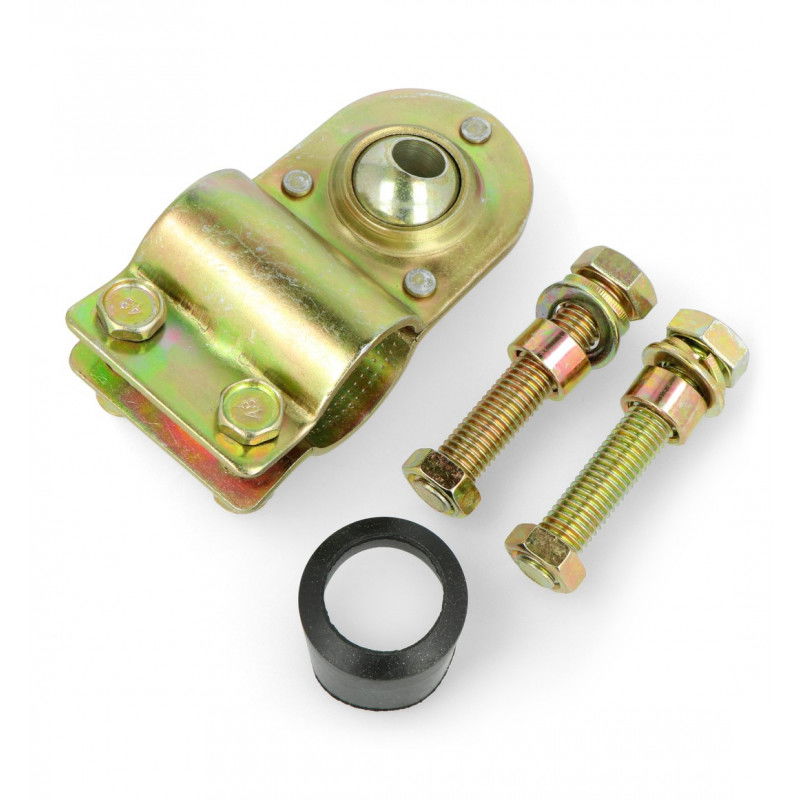

Included:
- Super Power Jack linear actuator
- Mounting screws
- Seal to the end of the arm
- Operating instructions
