Description: Electric actuator Super Power Jack 2000 N 7.5 mm / s 24 V - extension 15 cm

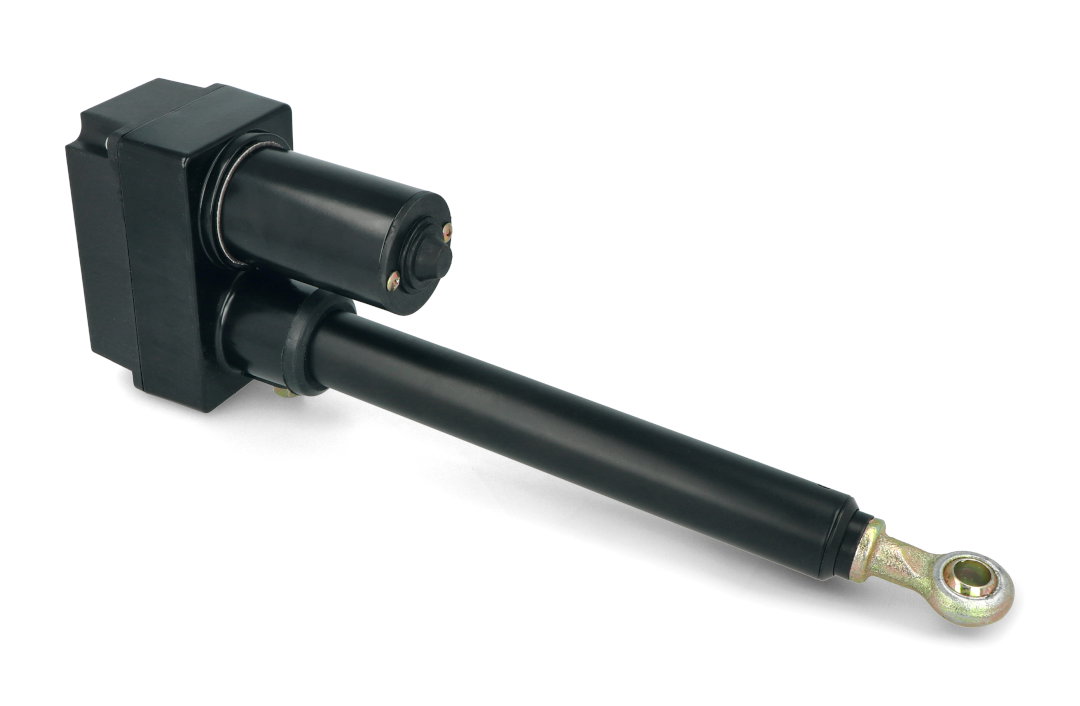

TheSuper Power Jack is an electric actuator manufactured byElektrobim. The actuator has a24 Vsupply voltage and the maximum current consumption is up to 2.1 A. Its maximum lifting capacity is 2000 N (200 kg)and speed is 7,5 mm/s. An impulse generator with a resolution of 48 pulses/inch provides information about the current position of the actuator. The Super Power Jack is equipped with limit switches to ensure that the extension range is not exceeded. The direction is changed by reversing the polarity, the same as inDC motors.
The units are available in various lengths and 12 V extension versions:15 cm,20cm,25cm,30cm,44cm,61cm. A 24 V actuator with44 cmextension is also available. |
Main features of the Super Power Jack 2000 N 7.5 mm/s 24 V electric actuator with 15 cm stroke
- Load capacity up to 2000 N (200 kg)
- Stable work regardless of weather conditions
- Comfortable attachment of the actuator
- Safe working voltage: 24 V DC
- High resistance to external influences in the working environment
- Adjustable extension length
- Different voltage versions: 12 V, 24 V, 36 V
Set contents
- Super Power Jack linear actuator
- Mounting screws
- Seal for the end of the arm
Instructions for adjusting the actuator
The manufacturer has prepared instructions in the form of a video, which shows how to adjust limit switches located in the actuator.
Electric actuator control
- By radio, via a remote control and a control unit
- By manual pushbuttons on the supply cables
- Automated operation based on sensors
Technical specifications
Name | Parameter |
---|---|
Supply voltage | 24 V DC |
Current consumption | up to 2.1 A |
Resolution of built-in pulser | 48 pulses per inch |
Speed | 7.5 mm/s |
Maximum force | 2000 N (200 kg) |
Extension length | 150 mm |
Total length in folded position | 400 mm |
Arm diameter | 32 mm |
Bottom body dimensions (DxSxG) | 120 x 72 x 50 mm |
