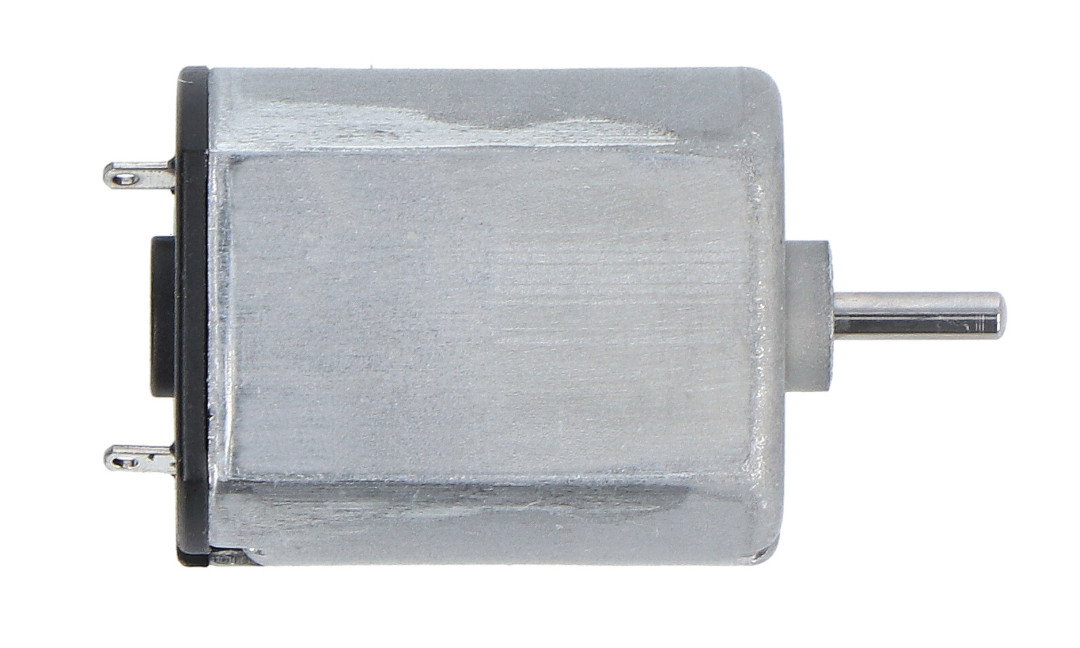

Product description: MT64 3-6 V mini motor - justPi
Small metal motor powered from 3 V-6 V. Idle current 30 mA/ 3 V. Dimensions: 11.9 x 15.3 mm. Speed: approx. 14 000 rpm.
Dimensions
The dimensions of the motor are shown in the technical drawing on the right.
Technical drawing - engine dimensions.
Mini DC Motor MT64 3-6V - justPi.Mini motor specifications
- Supply voltage: 3 to 6 V
- Idle current: 30 mA / 3 V
- Speed: approximately 14,000 rpm
- Spindle length: 5.1 mm
- Spindle diameter: 1.6 mm
- Length of motor (without spindle): Approx. 20.8 mm
- Dimensions: 11.9 x 15.3 mm
Mini motor for a wide range of applications
Mini motor MT64 3-6 V - justPi is a device, which can be used in many electronic projects. It works best in projects, where miniaturisation is an important factor, because they require maximum space saving under the housing.
For example, you can use it to build robots, remote-controlled vehicles, moving toys and small electronic devices such as electric toothbrushes.
Robust and efficient
The device is equipped with a metal housing that is resistant to impacts, abrasion and other mechanical damage. The motor does not have a gearbox and its speed reaches up to fourteen thousand revolutions per minute.
The supply voltage can be about 3 to 6 V, while the current consumption at idle is about 30 mA. The device can be controlled, for example, by a motor controller connected to a contact board or a minicomputer.
