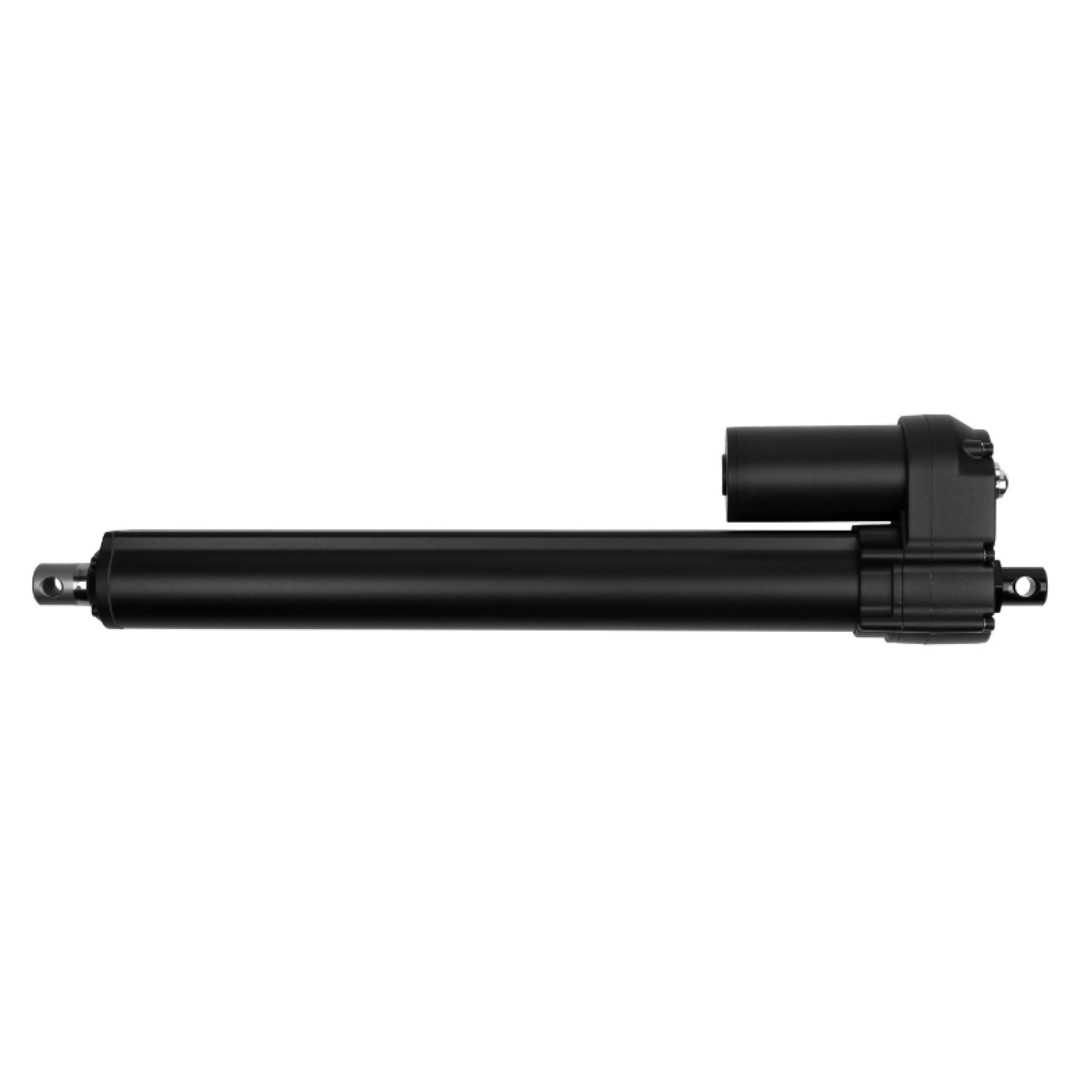

Product description: Electric actuator LA50 7000 N 8.5 mm/s 24 V - stroke 50 cm
The 24 V linear actuator has been designed for industrial and agricultural applications where reliability and durability are key. The actuator's maximum stroke is 50 cm and is limited by two limit switches (non-adjustable). With a lifting capacity of up to 7000 N (700 kg), it allows you to lift and move heavy elements, and its stroke speed of 8.5 mm/s provides precise movement control. The LA50 model is characterized by a solid construction with metal drive gears and a metal pull nut , which translates into a long service life of the actuator. The IP65 protection class allows for operation in difficult weather conditions, and a maximum duty cycle of 25% (up to 15 minutes of continuous operation) makes the actuator perfect for demanding environments.
Electric actuator LA50 7000 N 8.5 mm/s 24 V - extension 50 cm.
The actuator is powered by 24 V.
Main features of the LA50 actuator
- Maximum load capacity: 7000N (700 kg) - allows lifting and moving heavy elements in industrial and agricultural automation
- Piston rod stroke: 500 mm - ideal for home automation, agricultural machinery, lifts and smart building systems
- Feed speed: 8.5 mm/s - precise movement of the piston rod ensures efficient operation
- Power supply: 24 V DC - safe and energy-saving power supply, compatible with the most popular automation systems
- Metal drive gears and lead nut - solid construction increases durability and reliability
- High IP65 tightness class - protection against dust and water allows work in difficult conditions
- Quiet operation: noise level ≤ 65dB - low noise level ensures comfort of use
- Maximum duty cycle 25% - designed for cyclical operation, does not overheat
- Operating temperature: -40°C to 65°C - resistance to extreme environmental conditions
Connection and assembly
The LA50 actuator requires connection to a controller that will control its movement. Depending on the needs, a simple two-way switch or an advanced controller enabling precise adjustment can be used. The actuator is mounted using articulated brackets that allow its movement in a range adapted to the application. It is worth paying attention to the appropriate arrangement of cables and mechanical protection to avoid excessive loads on the mountings.
The actuator has an IP65 tightness class, which provides protection against dust and moisture.

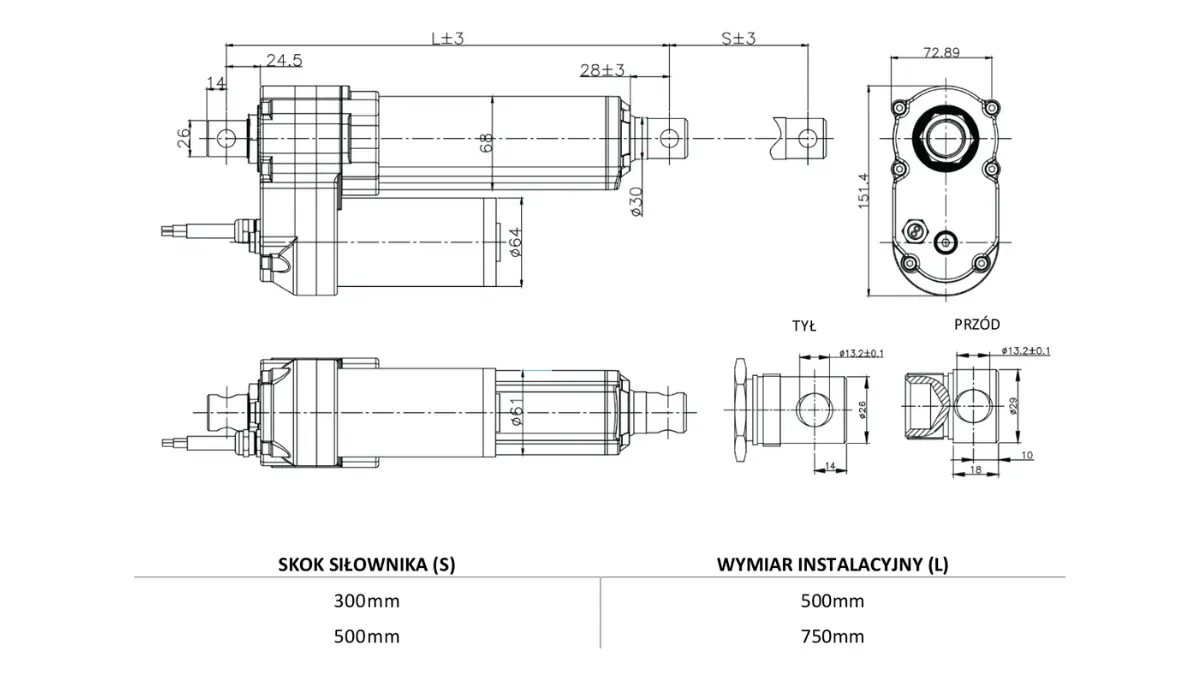

Dimensions of LA50 series actuators.
Practical applications
The LA50 actuator is widely used in:
- Agricultural machinery - tractors, combines, seeders, balers, spreaders
- Animal breeding automation - feeding, ventilation, feed transport systems
- Logistics and industry - forklifts, production lines
- Boats and vehicles - engine lifting systems, flaps, skylight adjustment
- Renewable energy - solar panel control systems, antenna adjustment
| LA50 Linear Actuator Specifications | |
|---|---|
| Supply voltage | 24V DC |
| Speed | 8.5mm/sec |
| Maximum force | 7000N (700kg) |
| Work cycle | 25% (max. 15 min of continuous operation) |
| Extension length | 500mm |
| Total length when folded | 781mm |
| Fixing | two mounting holes ø 13 mm |
| Volume | ≤ 65dB |
| Operating temperature | from -40°C to 65°C |
| Security | limit switches (non-adjustable) |
| Load current | 9 A |
| Power | 216 W |
| Tightness class | IP65 |
