Panel/wall controller for electric motors 12-48V DC 32 A RC-LCD - Elektrobim

Index: ELB-20044 EAN: 5904422379919
TheRC-LCD is a panel wall controller manufactured by Elektrobim. It is used to control electric actuators, which are powered by 12 V to 48 V DC. The RC-LCD can be used in projects involving flaps, at windows, in broadly defined agricultural applications and many others.
Panel/wall controller for electric motors 12-48V DC 32 A RC-LCD - Elektrobim
€63.50
€51.63 tax excl.
Waiting time: 1-2 weeks
Only on request
PayPal payment
Manufacturer: Elektrobim

Product description: Panel/wall controller for electric motors 12-48V DC 32 A RC-LCD - Elektrobim

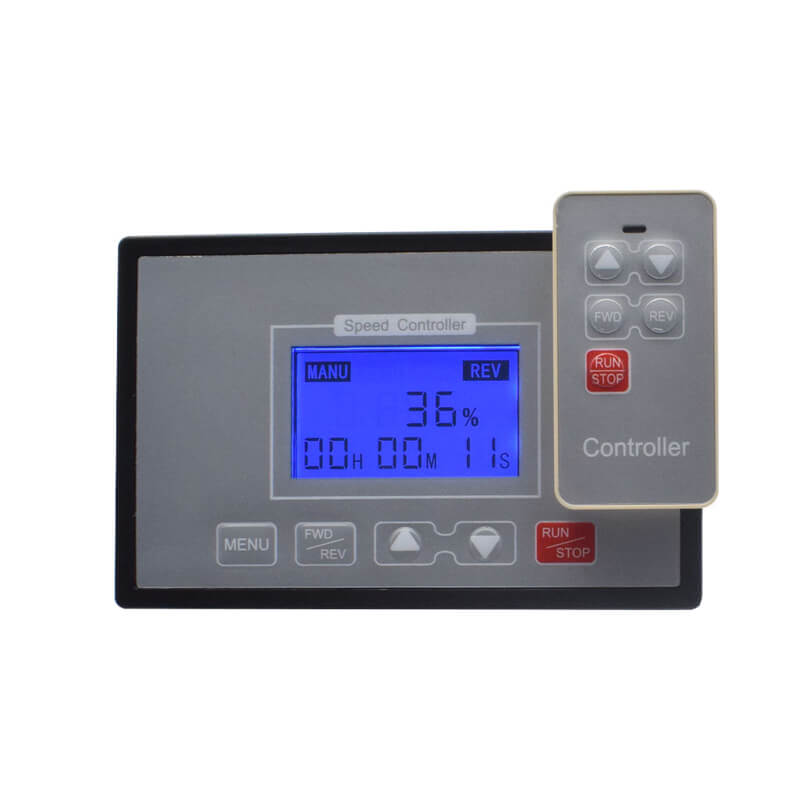

RC-LCD is a panel, wall-mounted controller manufactured by Elektrobim. It is used to control electric actuators, which are powered by 12 V to 48 V DC. The RC-LCD can be used in projects involving dampers, at windows, in broadly defined agricultural applications and many others. It can be controlled manually from the main panel (equipped with an easy to read display) or remotely using the supplied remote control. In addition, the device has been equipped with an automatic operation mode, thanks to which it carries out extension, retraction and pause cycles within a specified time interval of up to 99 hours. Importantly - the RC-LCD from Elektrobim allows you to adjust the speed of the motor and includes a soft start and stop option.

Sterownik panelowy/ścienny do silników elektrycznych.

Panel/wall controller for electric motors.

Features of the controller from Elektrobim

  • Voltage range from 12 V to 48 V DC and the maximum load current for the actuator equal to 32 A
  • Possibility to connect actuators with high current consumption such as AGR21 or LA100
  • Two control options: manual operation via a panel or remote control
  • Automatic operation for up to 99 hours
  • Adjustable electric motor speed and soft start and stopoption
  • Operation can also be configured using external NO contacts - limit switches and momentary pushbuttons

Set contents

  • Controller with display
  • Remote control

Technical specifications of the controller

  • Application: for electric actuators
  • Supply range of the controller: from 12 V to 48 V DC
  • Supply range for connected actuators: 12 V to 48 V DC
  • Maximum load current: 32 A
  • Switching method: bistable ON-OFF-ON
  • Compatible actuators: brush motor actuators with limit switches
  • Remote control: yes
  • Remote control range: up to 20 m
  • Panel equipped with an easy to read display
  • Size of the main panel: 148 x 95 mm
  • Mounting depth: 33 mm
Package width 15 cm
Package height 10 cm
Package depth 4 cm
Package weight 0.3 kg
