Product description: Direction switch and speed controller of electric actuators - STE-02
The high quality STE-02 module allows intuitive control of the operation direction of electric actuators. It is equipped with a 3-position switch, by means of which the polarity of power supply and thus the direction of actuator rotation can be easily changed. Moreover, the controller is equipped with a knob, thanks to which it is possible to adjust the motor rotation speed. STE-02 controller supports actuators supplied with voltage from 12 V to 48 V DC, with power consumption not exceeding 10 A.
Our store offers a wide range of linear actu ators and actuator accessories.

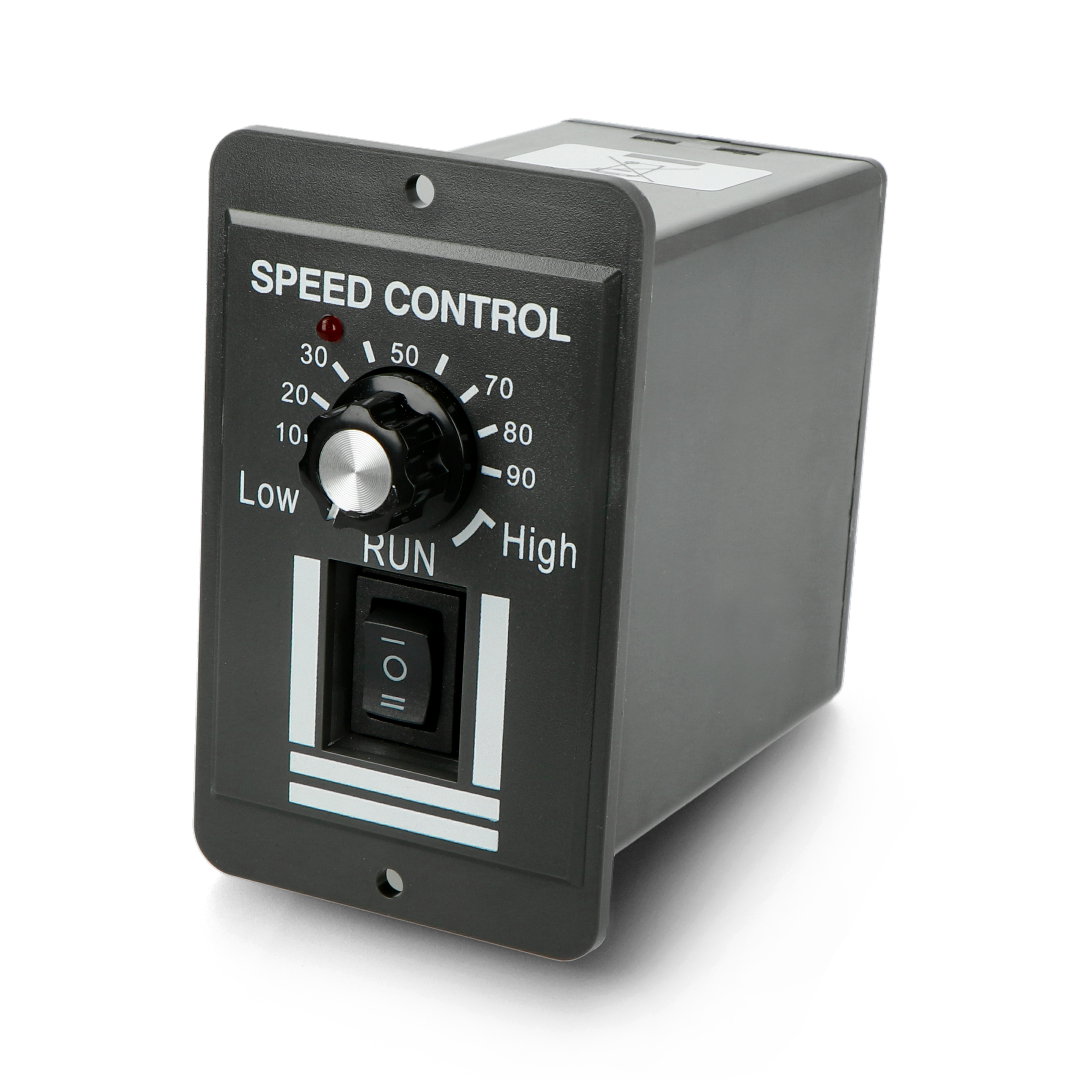

Direction switch and speed controller of STE-02 actuators.

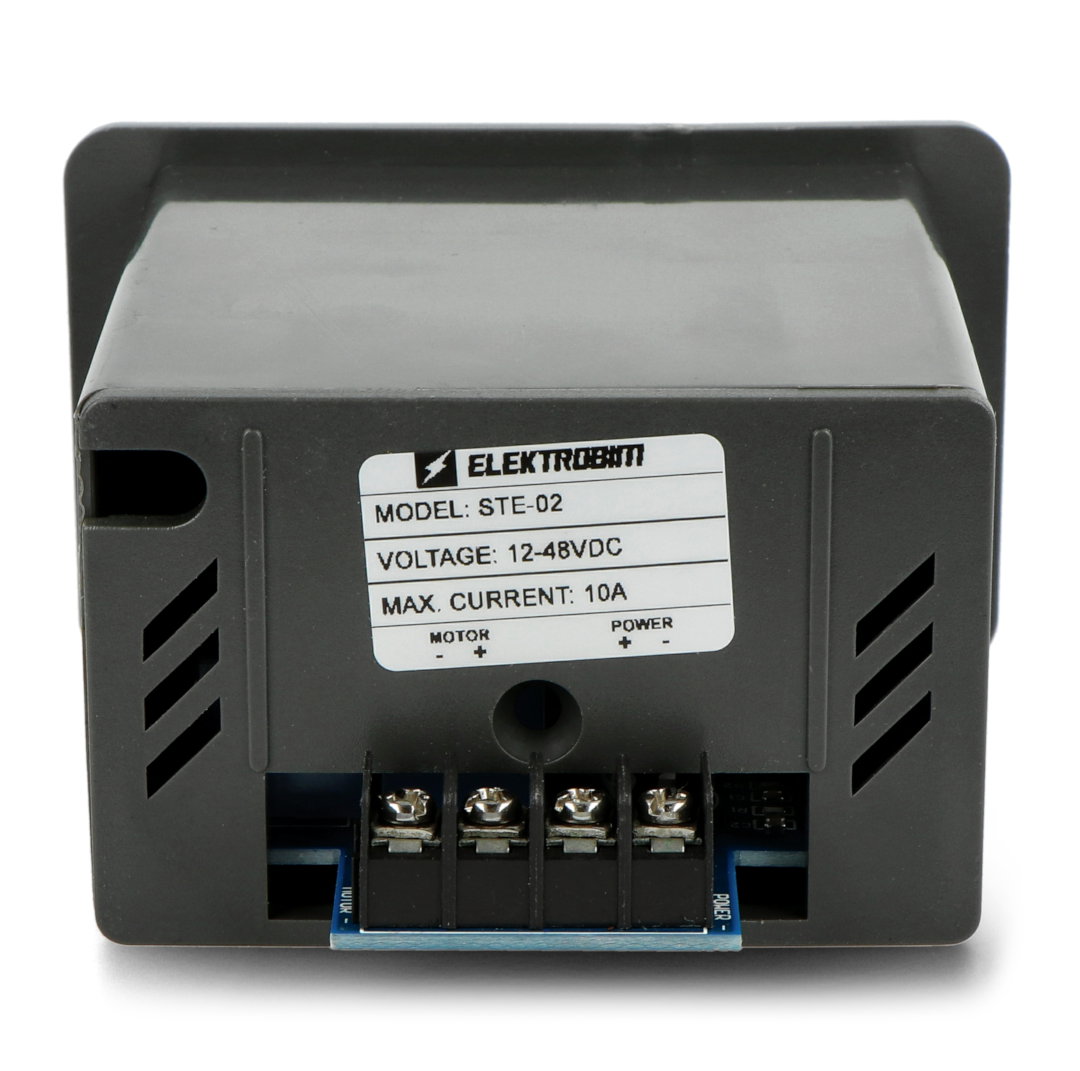

STE-02 controller outputs.Connection of STE-02 controller
The direction switch and speed controller of electric actuators is easy to connect. It is equipped with screw connectors to connect the electric actuator and the power supply. The connectors are located on the rear side of the controller and are additionally described to facilitate recognition of the connectors for connection of the actuator and power supply. The controller supports voltages from 12 V to 48 V DC and a maximum current of 10 A. The device casing has two mounting holes.
| STE-02 controller specification | |
|---|---|
| Supply voltage | 12 V to 48 V DC |
| Load current | max. 10 A |
| Switching method | ON-OFF-ON (bistable) |
| Faceplate dimensions | 99 x 60 mm |
| Dimensions of the rear housing | 81 x 52 x 90 mm |
