Remote controller 12V DC + remote controls 433.92MHz - 2 channels
The radio receiver allows you to control 2 devices operating with a voltage of 250 V AC via NO/NC relay outputs. The module operates at a frequency of 433.92 MHz, the set includes 2 remote controls that allow you to control the receiver within a range of 100 meters . The remote controls may differ in appearance from those shown in the photo, they are sent randomly. The coil is powered by 12 V DC.
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of Elektrobim products. Elektrobim is a Polish company that designs, manufactures and distributes electric drives, linear actuators and industrial automation components. Elektrobim products are known for their build quality and reliability, which earns them the trust of customers across many industries. Botland carries a wide range of original Elektrobim products supporting advanced automation systems.
Product description: Remote controller 12 V DC + remote controls 433.92 MHz - 2 channels
The radio receiver allows you to control 2 devices operating with a voltage of 250 V AC via NO/NC relay outputs. Built-in relays with a power of up to 10 A allow you to control devices with high current consumption such as DC motors , roller blinds, blinds, doors, windows, gates and wickets. The module operates at a frequency of 433.92 MHz . The set includes 2 remote controls that allow you to control the receiver within a range of 100 meters. The remote controls may differ in appearance from those shown in the photo, they are sent randomly. The coil is powered by 12 V DC.

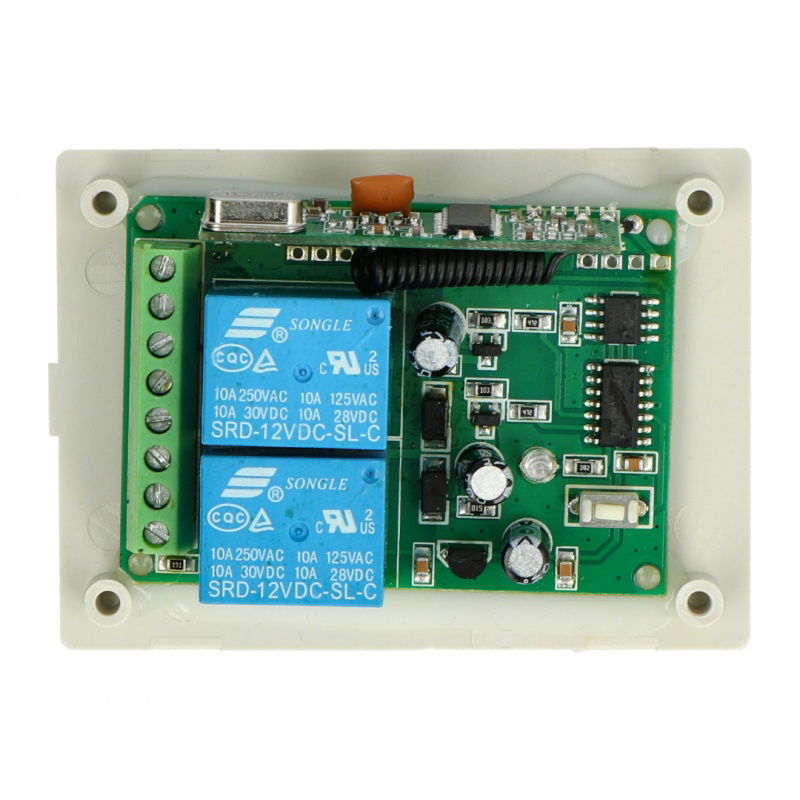

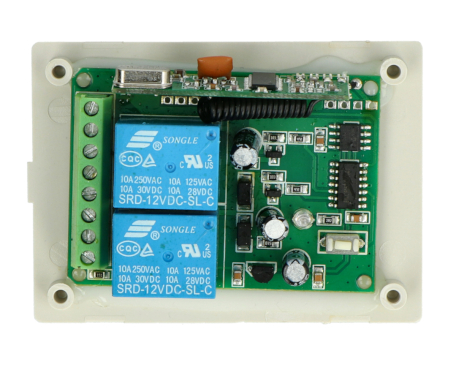

Remote controller pins 12V DC - 433.92MHz - 2 channels
The connectors in the table are described from top to bottom in the order in which they appear on the controller module.
| Name | Description |
|---|---|
NO_1 | Pinout of the normally open contact of the first relay PK1. |
COM_1 | Pinout of the common contact of the first relay PK1. |
NC_1 | Normally closed contact leads of the first relay PK1. |
NO_2 | Normally open contact output of the second relay PK2. |
COM_2 | Common contact pinout of the second relay PK2. |
NC_2 | Normally closed contact leads of the second relay PK2. |
+ | Power connector, supply voltage 12 or 24 V |
- | System mass. |

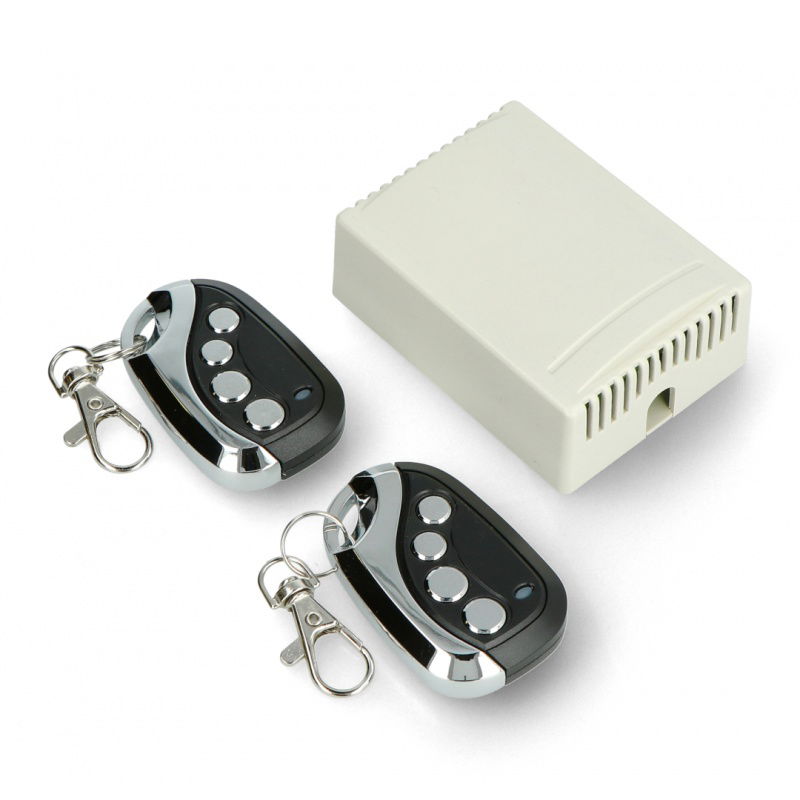

The set includes:
- 2-channel receiver
- Remote control - 2 pieces
Remote controls may differ in appearance from those shown in the photo.
Remote Controller Specification 12V DC - 433.92MHz - 2 Channel
- Supply voltage: 12V DC
- Relay operating voltage: 250 V AC
- Maximum load: 10A
- Memory: up to 50 remotes
- Receiver sensitivity: -100 dBm
- Actual range in open terrain: up to 100 m
- Quartz stabilization
- 2 relay outputs
- 3 operating modes:
- bistable
- monostable
- change of state
- Can be used as an additional receiver for the gate automatic.
- Operating temperature: -20°C to 60°C
- Dimensions: 57.5 x 40.5 x 17 mm
Example of using a 12 V DC - 433.92 MHz - 2-channel remote control
Useful links
| Name | Value |
|---|---|
| Channels | 2 |
| Interface | Radio |
| Smart Home | Relay |
| Communication | RF |
| Width | 5.5 cm |
| Height | 10 cm |
| Depth | 4 cm |
| Weight | 0.105 kg |
