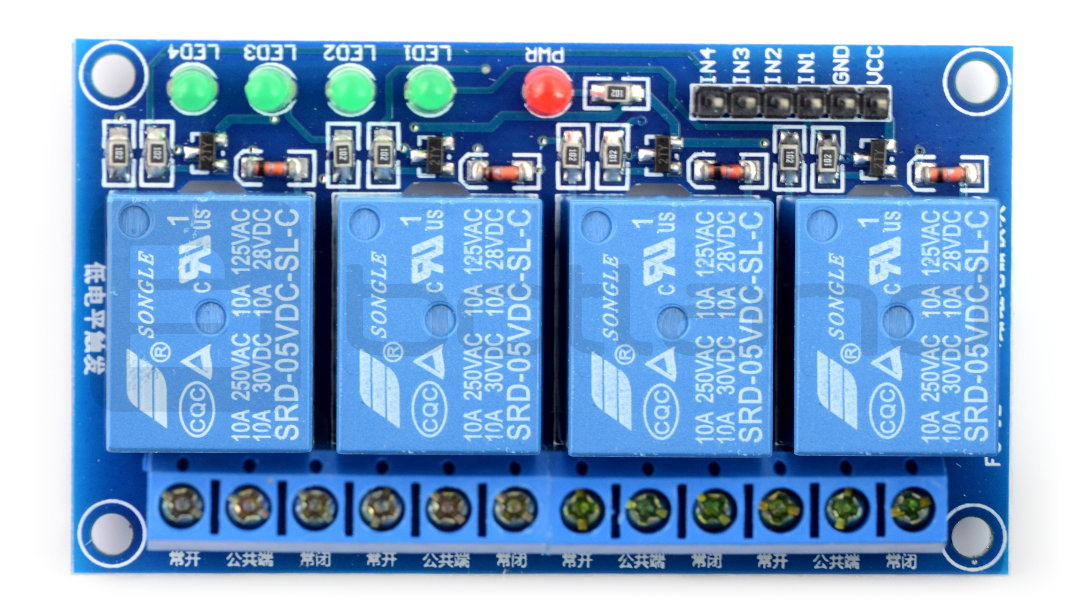

Relay module 4 channels - 10A/250VAC contacts - 5V coil
Quadruple module is equipped with SRD-05 relay with a coil powered with the voltage of 5 V, the transistor amplifier and mounting holes. The system allows you to control actuators using the microcontroller's ports or any development kit.
We could not load the price.
The promotional price does not combine with quantity discounts.
Specification
- The VCC supply voltage: 5 V
- Enabled by the high status: Relay SRD-05VDC-SL-C (documentation)
- Coil voltage: 5 V
- The maximum voltage of contacts: 250 V AC, 110 VDC*
- Maximum current: 10 A
- Transistor amplifier in the system
- 5 LEDs: 4 - signaling the relay activation, 1 - signaling the power connection
- Board sizes: 77 x 54 mm
- Diameter of mounting holes: 3 mm
* Maximum contact voltage depends on the type of load - details inthe documentation, tab. 7. Contact Rating.
Description
The module allows to control the actuators consuming the current up to 10 A using the microcontroller's ports or development set (e.g. Arduino). In the system is a transistor amplifier which allows you to control the relay directly from the microcontroller's port (5 V). The relay activation is signaled by turning on of the corresponding LED.
For proper operation, it is sufficient to connect the power supply of the relay and the digital control signal. Pins are the standard goldpin straps with the pitch of 2.54 mm which allows for the connection using the popular connecting cables.
To connect to your Raspberry Pi, we recommend you to use theversion with optical insulation. |
Examples of application
- Driver of lighting
- The driver of actuators
- Switch for electric devices, including motors
Connection
The module has three input pins VCC, GND, IN1, IN2, IN3, IN4. For the system to work correctly, you must connect the power supply of 5 V to the VCC pin, ground GND and the input signal INx.
Output pins are marked as NO - disconnected by default, NC - by default, it is connected with COM. Indicating the low status at the INx pin, switches the relay contacts and makes the connection between the COM and the NO, disconnecting the COM from the NC.
Useful links
| Name | Value |
|---|---|
| Channels | 4 |
| Interface | Digital I / O |
| Width | 10 cm |
| Height | 5 cm |
| Depth | 2 cm |
| Weight | 0.051 kg |
GLS
Shipping in 24 hours
from €8.07
Raben - pallet delivery
Delivery in 3–5 days, no inside delivery
from €96.75
The full delivery terms are on the page Delivery and payment.
30 days to return, without giving a reason
If the product does not meet your expectations, you have 30 days from receiving the parcel to withdraw from the contract. The product only has to be complete. The right of return belongs to consumers (a purchase unrelated to business activity).
Complaints
If the product turns out to be faulty, you can make a claim under the guarantee or the statutory warranty. We handle claims without delay, at the latest within 14 working days of receiving the report together with the goods.
Question: When a switching signal is given, does this set of x4 and smaller x2 relays hold the changed state of the contacts (is it bistable)? Does it require a continuous holding signal?
Question: Good day does the relay come with an optisolator to protect the arduino / raspberry pi?
