Description
Module from the Grove series, is equipped with a sensor of pressure force FSR402. The sensor communicates with the analog voltage signal. It is able to detect a pressure in the range from 0.2 N to 20 N. It is supplied with the voltage from 3.3 V to 5V. It has an analog output that makes it compatible with most of the commissioning modules, including Raspberry Pi and Arduino.
Connection
The module is equipped with Grove interface that facilitates its connection tothe Arduinoalong withBase Shield v2.0orRaspberry using Hat from GrovePi+.

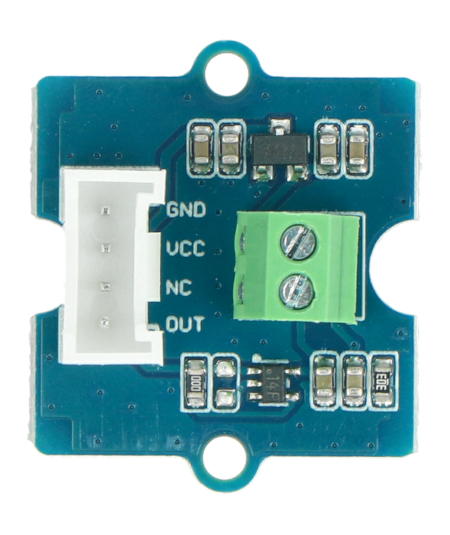

| Pin | Description |
|---|---|
| GND | The ground of the system. |
| VCC | Supply voltage of 3.3 V or 5 V. |
| NC | Not connected. |
| OUT | The output signal. |
|
The product is compatible with Arduino The manufacturer provides auser manualforArduino. |
Specification
- Supply voltage: 3.3 V or 5 V
- Pressure sensor: FSR402
- Analog output: 0 to 650
- Sensitivity range: from 0.2 N to 20 N
- Dimensions: 20 x 20 x 13 mm
- Weight: 9 g
