Product description: Remote controller 12/24V DC + 433.92MHz remote controls - 4 channels

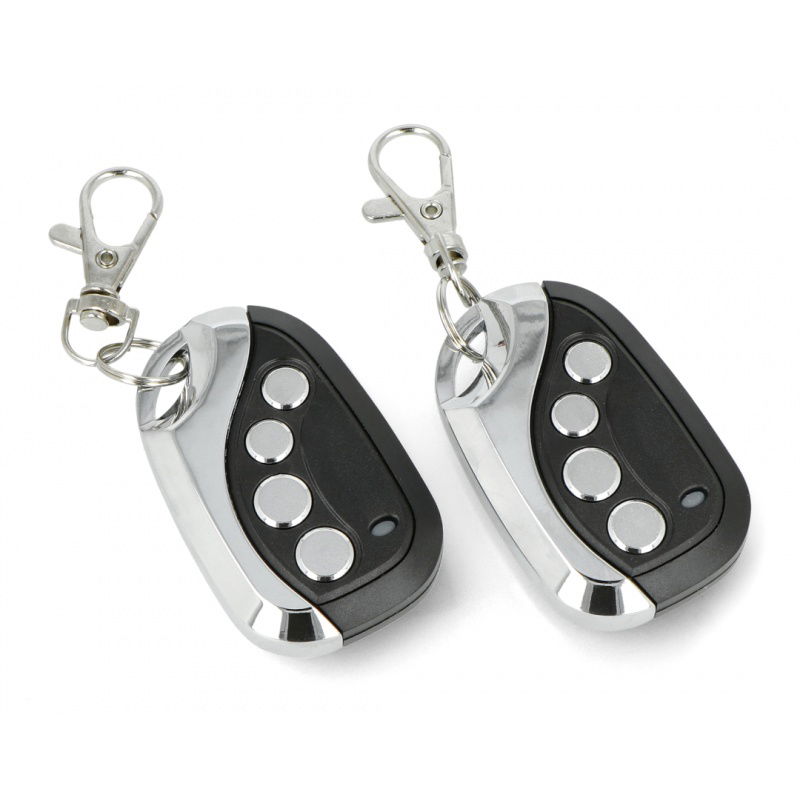

This radio receiver equipped with relays allows you to control four devices operating at 250V AC via NO/NC relay outputs. The receiver communicates at 433.92 MHz . The set includes two remote controls, which allow you to control the module's relay outputs within a 100m range . Remote controls may vary in appearance and are shipped randomly. The relays operate at 12 or 24V DC .
Remote controls may vary in appearance, and suppliers ship different models. Different remote control models function the same.
Remote control pins 12/24 V DC - 433.92 MHz - 4 channel
The connectors in the table are described from top to bottom in the order in which they appear on the controller module. Details can be found in the module's user manual .
| Name | Description |
|---|---|
+ | Power connector, supply voltage 12 or 24 V. |
- | System mass. |
NO_4 | Normally open contact pins of relay K4. |
COM_4 | Common contact pin of relay K4. |
NC_4 | Normally closed contact output of relay K4. |
NO_3 | Normally open contact pins of relay K3. |
COM_3 | Common contact pin of relay K3. |
NC_3 | Normally closed contact output of relay K3. |
NO_2 | Normally open contact pins of relay K2. |
| COM_2 | Common contact pin of relay K2. |
| NC_2 | Normally closed contact output of relay K2. |

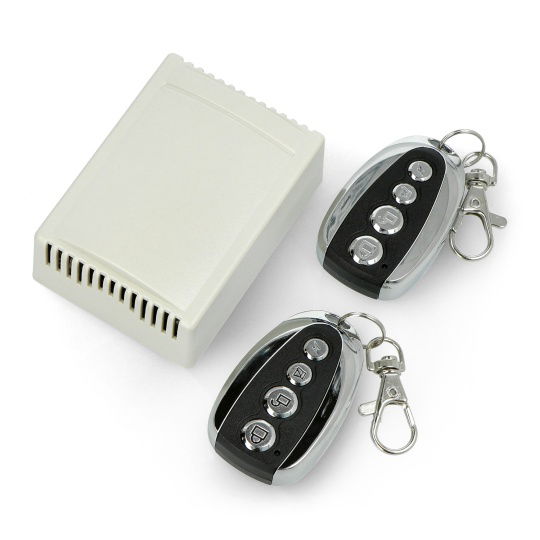

The set includes:
- 4-channel receiver
- Remote control - 2 pieces
Remote Controller Specifications 12/24V DC - 433.92MHz - 4 Channel
- Power supply voltage: 12/24 V DC
- Relay operating voltage: 250 V AC
- Maximum load: 10 A
- Memory: up to 50 remote controls
- Receiver sensitivity: -100 dBm
- Actual range in open terrain: up to 100 m
- Quartz stabilization
- 4 relay outputs
- 3 operating modes:
- bistable
- monostable
- change of state
- Can be used as an additional receiver for the gate automatic.
- Operating temperature: -20°C to 60°C
- Dimensions: 57.5 x 40.5 x 17 mm
Remote controls may vary in appearance and are sent randomly.
Example of using a 12/24V DC - 433.92 MHz - 4-channel remote controller
