Description of product: Grove - relay 4-CH SPDT
High-class 4-channel relay from Grove in version 1.0. It is able to handle amaximum voltage of 250V AC or 110 V DC with a current of 10 A. To work, it requires alow voltage of 5 V. It has4 independent channelscontrolled through the STM32F030F4P6 microcontroller that works withSWD or I2C interface and allows for the control of each relay by using the commands. The module was also equipped witha Grove slot, allowing you to easily connect to the Base Shield on ArduinoorGrove Pi+ on the Raspberry Pi. The board was made of high quality laminate with a higher resistance to the temperature and the used Songle SRD relays are able to performeven 10 million switchingat speeds of up to 30 switches per minute. All this makes the module as a whole, look great. High strength combined with the ease of use and high aesthetics of the board and packaging makes the Grove relay, a high class product.
 |

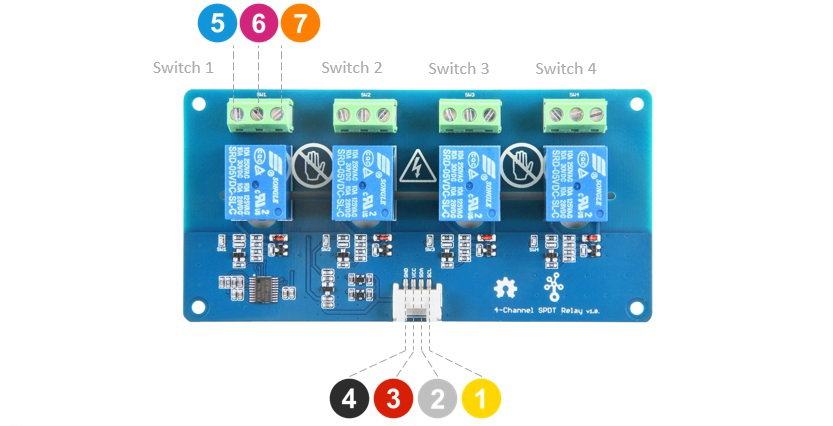

SCL: Input pin of the clock that provides the basis of time |
 |
SDA:Bidirectional pin of input/output for data transfer |
 |
VCC:Voltage of 5V |
 |
GND: Connection of the module to the ground |
 |
NC1:Output 1 is connected by default to the COM1 |
 |
COM1: Controlled by SIG1, connected with NC1 or NO1 |
 |
No. 1:Output 2 of the first relay |
Presentation of the capabilities of the 4-channel Grove relay
Grove series
Grove is a series of modules and sensors that are compatible with Base Shield for Arduino and Grove Pi+ for Raspberry Pi. It makes it easy to connect items using the Grove interface. It also works with SWD and I2C interfaces.
|
To view allthe elements of the series Grovein our offer |
Specifications of the 4-channel Grove relay
- The VCC supply voltage: 5 V
- Power consumption: approximately 0.45 W
- Relays Songle SRD-05VDC-SL-C (documentation)
- Maximum load: 250 V AC / 110 V DC
- Speed: 30 switches / min.
- Operating temperature: -40°C - +85°C
- The dimensions of the board: 120 x 60 x 19 mm
- Weight of the board: 257 g
- Set includes:
- 4-channel Grove relay
- Grove cable
- Acrylic case
- mounting components
