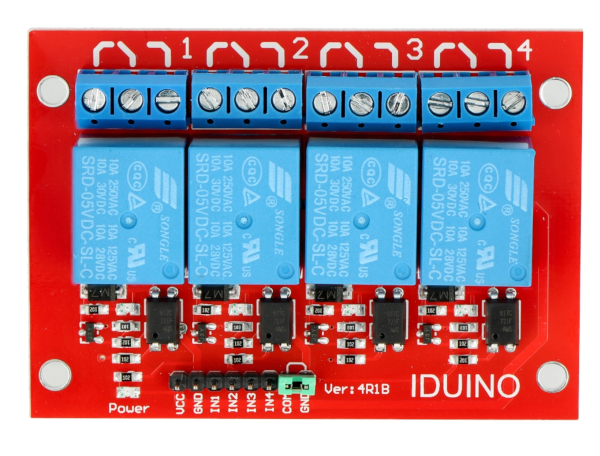

Product description: Iduino relay module 4 channels
Module withfourSRD-05relays with a5 Vcoil andoptical insulation ofthe input as well as mounting holes. The system allows you to control theactuatorsby means of microcontroller ports or any set of start-ups.
Iduino relay module 4 channels - contacts 10 A / 250 VAC - 5 V coil.
Outputs:
- VCC- power supply
- GND- mass
- IN1, IN2, IN3, IN4- relay control inputs
- COM- relay coil power supply, by default connected to GND via jumper
- GND- mass
- KF connectors(ARK) - relay contacts
Application of the relay module
The relay enables to control devices supplied with high voltage of250 Vwith power up to2500 W, it is used to control lighting, executive systems, motors, etc. using any start-up set, e.g.Arduino.
Iduino relay module specification
- Number of channels: 4
- VCC supply voltage: 5 V
- High state controlled relay
- Relay: SRD-05VDC-SL-C(documentation)
- Coil voltage: 5 V
- Maximum contact voltage: 250 VAC
- Maximum current: 10 A
- Plate dimensions: 77 x 55 mm
- Diameter of mounting holes: 3 mm
