Description

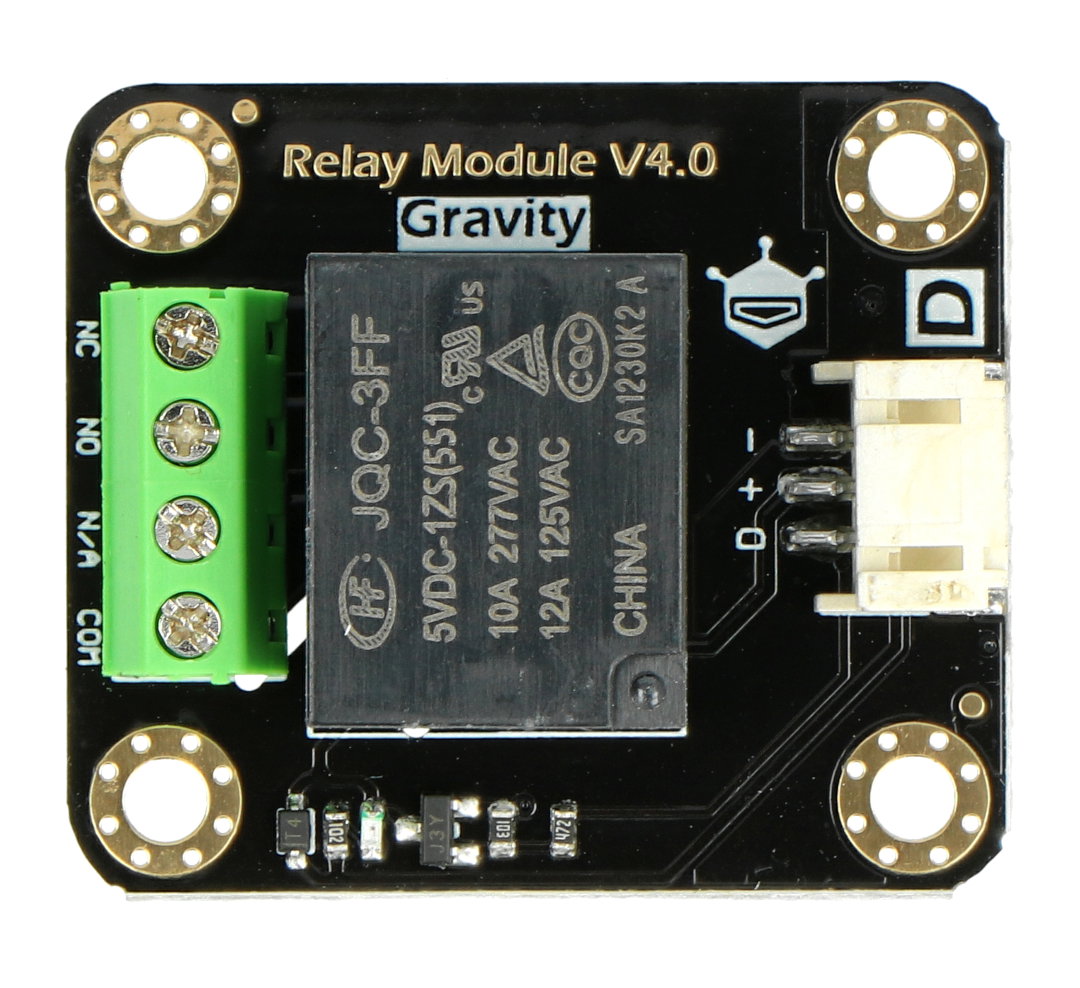

Module with relay that allows for the control of the actuators consuming the current of up to 12 A through the ports of the microcontroller or any development kit, for example,Arduino. The kit includes a cable adapted toDFRobot IO Expansion Shield.
|
The product is compatible with Arduino Sample code and detailed information can be found inthe user guide. |
Connection
The sensor works with any microcontroller equipped with digital inputs, includingArduino. The voltage of the control over relay is 5 V DC.
The board is suitable for connectors of DFRobot IO Expansion Shield for Arduino V7.1.
Specification
- Control voltage: 5 VOLTS DC
- Signal type: digital
- Maximum contacts voltage: 277 V AC / 10 A, 125 V AC / 12 A
- Maximum contact current: 12 A
- Delay time: 10 ms
- The dimensions of the board: 38 x 32 mm

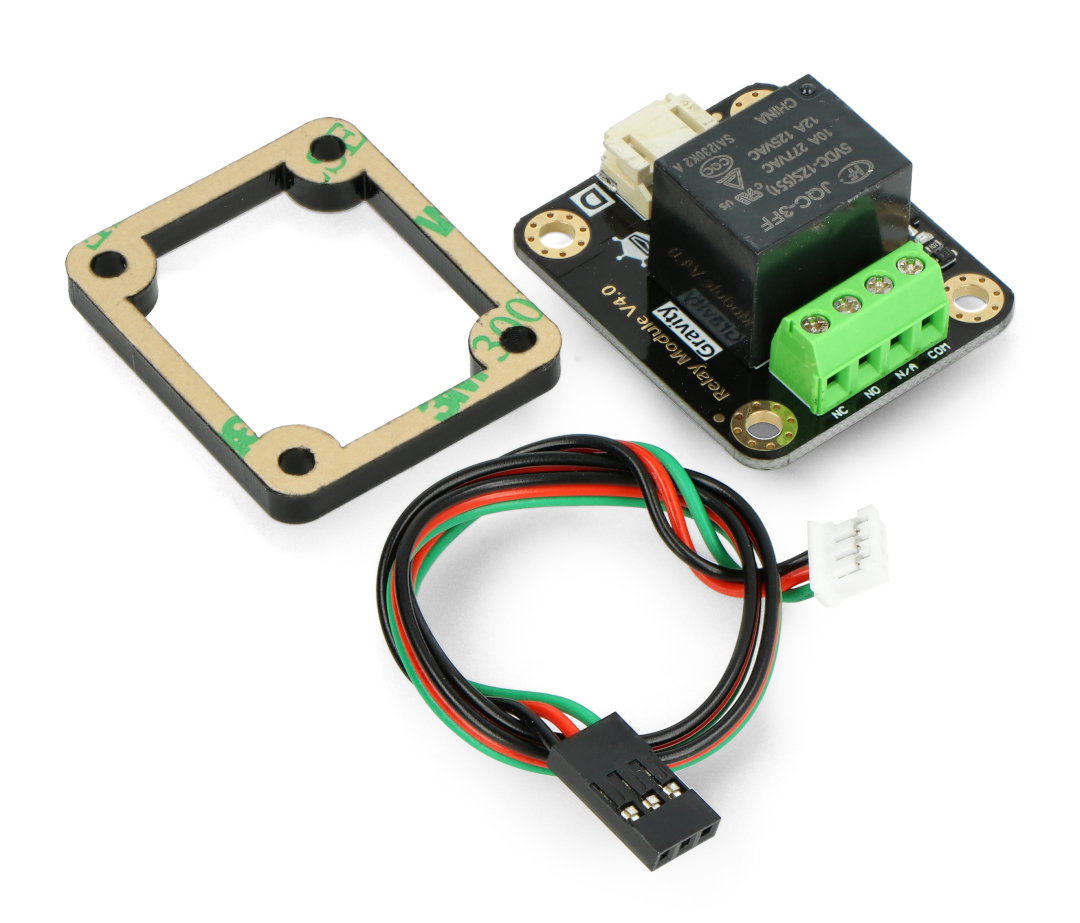

Set includes:
- Module with relay
- Connecting cable
