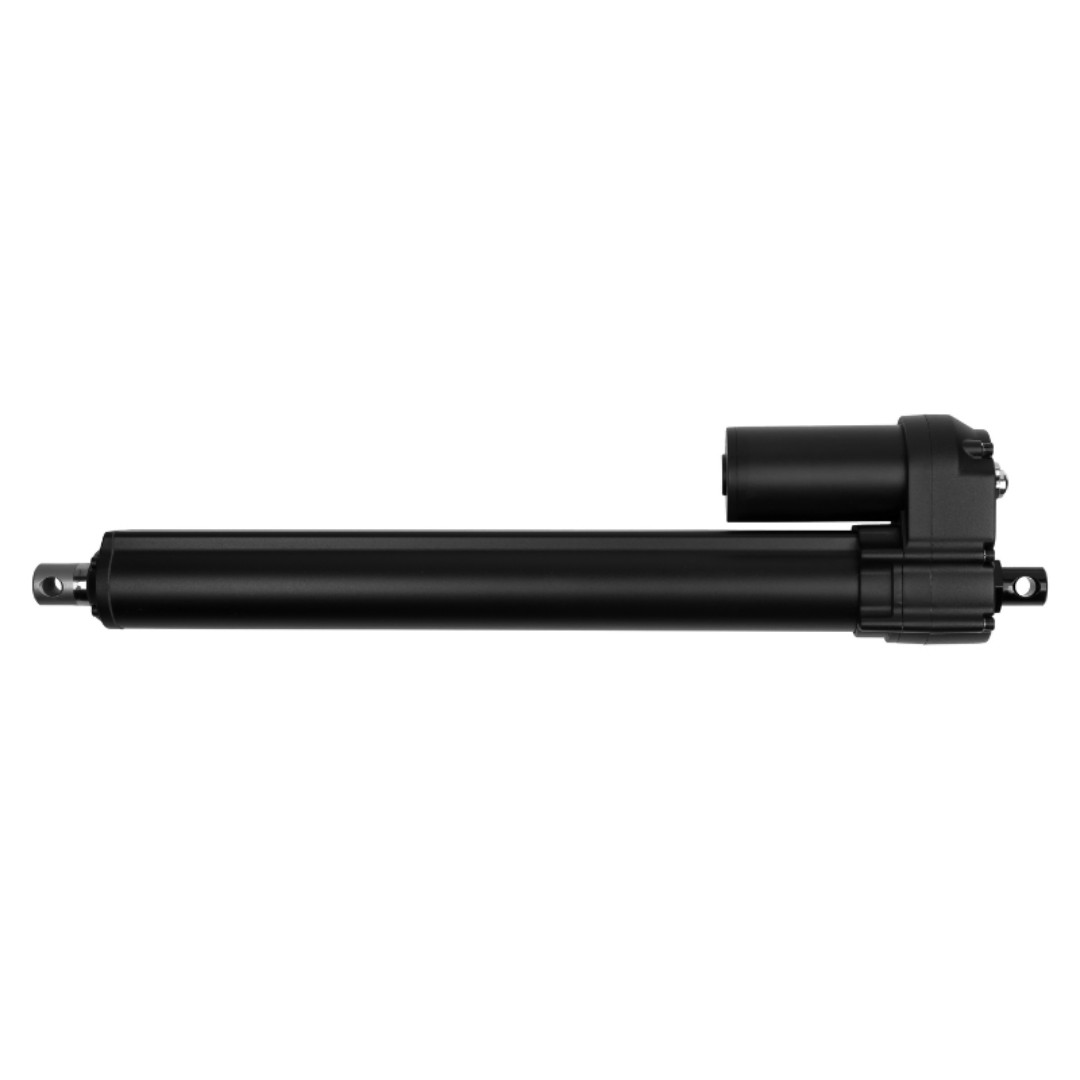

Product description: Electric actuator LA50 2000 N 35 mm/s 24 V - stroke 50 cm
The 24 V linear actuator has been designed for systems that require fast and precise operation. Its maximum stroke is 50 cm and is limited by limit switches (not adjustable). With a stroke speed of 35 mm/s, it is ideal for applications where short response time is key. The load capacity of 2000 N (200 kg) allows for work under moderate loads, while ensuring quiet and smooth movement. The LA50 model is made of metal components , such as metal drive gears and a pull nut, which guarantees high durability. The IP65 protection class allows it to be used outdoors, even in difficult environments.
Electric actuator LA50 2000 N 35 mm/s 24 V - extension 50 cm.
The actuator is powered by 24 V.
Main features of the LA50 actuator
- Maximum load capacity: 2000N (200 kg) - allows lifting and moving heavy elements in industrial and agricultural automation
- Piston rod stroke: 500 mm - ideal for home automation, agricultural machinery, lifts and smart building systems
- Feed speed: 35 mm/s - fast movement of the piston rod ensures dynamic and efficient operation
- Power supply: 24 V DC - safe and energy-saving power supply, compatible with the most popular automation systems
- Metal drive gears and lead nut - solid construction increases durability and reliability
- High IP65 tightness class - protection against dust and water allows work in difficult conditions
- Quiet operation: noise level ≤ 65dB - low noise level ensures comfort of use
- Maximum duty cycle 25% - designed for cyclical operation, does not overheat
- Operating temperature: -40°C to 65°C - resistance to extreme environmental conditions
Connection and assembly
The LA50 actuator requires connection to a controller that will be responsible for controlling its movement. Depending on the application, a simple two-way switch or an advanced controller can be used that allows precise adjustment of operating parameters. The actuator is mounted using articulated brackets that allow the actuator to move freely within the range required by the application. During installation , care should be taken to properly route the cables and appropriate mechanical protection to prevent overloading and damage to the fastenings.
The actuator has an IP65 tightness class, which provides protection against dust and moisture.

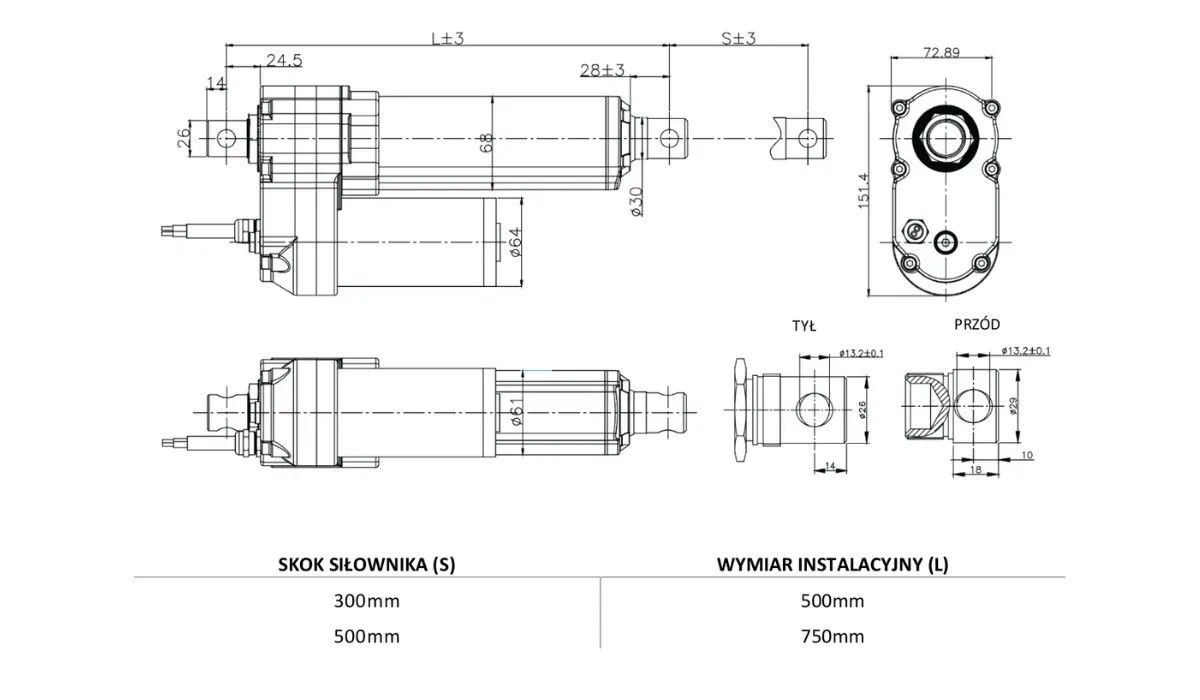

Dimensions of LA50 series actuators.
Practical applications
The LA50 actuator is suitable for applications such as:
- Window and flap automation - intelligent control systems in homes and factories
- Vehicles and utility machines - adjustment of mechanisms in forklifts, ventilation systems
- Food industry and production - control of conveyor belts, packaging mechanisms
- Energy and agriculture - valve regulation, transport systems
| LA50 Linear Actuator Specifications | |
|---|---|
| Supply voltage | 24V DC |
| Speed | 35mm/sec |
| Maximum force | 2000N (200kg) |
| Work cycle | 25% (max. 15 min of continuous operation) |
| Extension length | 500mm |
| Total length when folded | 781mm |
| Fixing | two mounting holes ø 13 mm |
| Volume | ≤ 65dB |
| Operating temperature | from -40°C to 65°C |
| Security | limit switches (non-adjustable) |
| Load current | 8 A |
| Power | 192 W |
| Tightness class | IP65 |
