Product description: LA10 500 N 13 mm/s 12 V electric actuator - 5 cm extension
Linear actuatorwith a maximum load capacity of 50 kg (500 N) and5 cm extension. It is powered by12 V. It has an IP65 rating, which provides protection against dust and moisture. The actuator has two built-inlimit switchesto prevent exceeding the maximum extension.

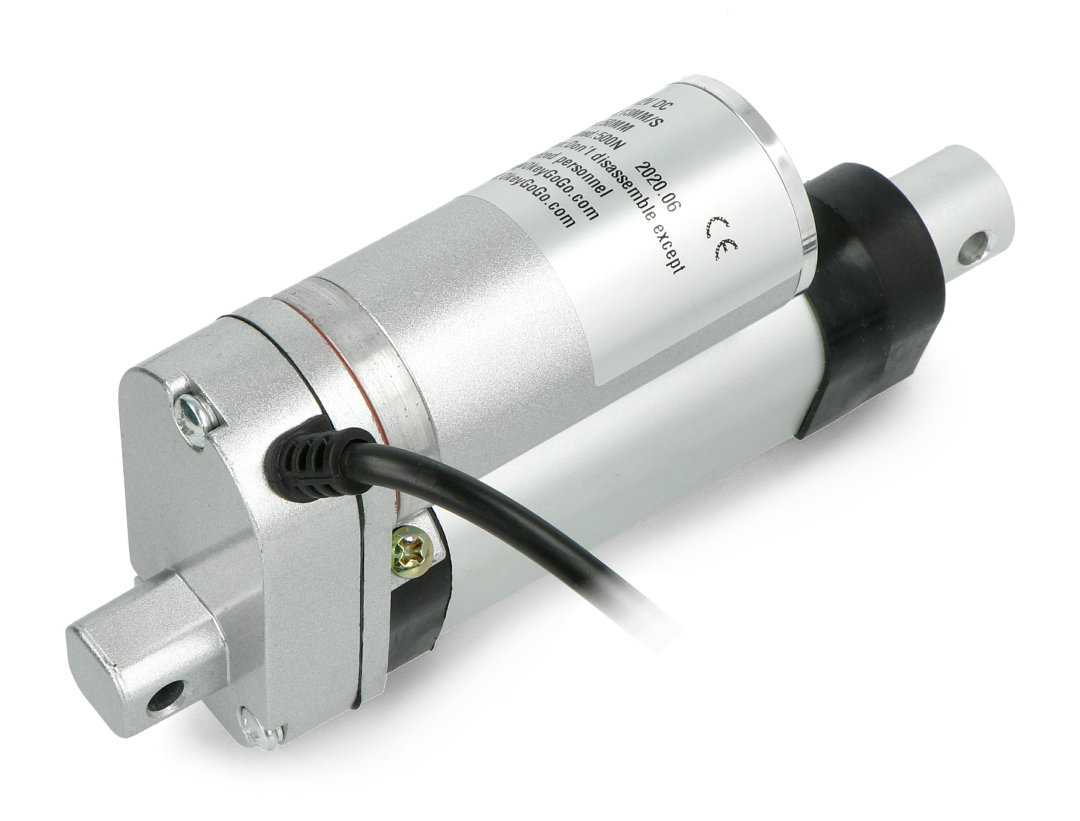

Electric actuator LA10 500N 13 mm/sec 12 V - 5 cm extension.
Application of linear actuators
- In home automation, as an element used to tilt windows, doors
- Industrial and agricultural machinery components
- Photovoltaic installations for tilt adjustment of the solar panel
- Flap and plough adjustment in motor vehicles
- Precise elements of industrial automation
- To support the opening and closing of industrial valves
|
As inDC motors,the direction is changed by reversing the polarity. |
Linear actuator specification LA10 500 N
| Name | Parameter |
|---|---|
| Supply voltage | 12 V DC |
| Speed | 13 mm/s |
| Maximum power | 500 N (50 kg) |
| Duty cycle | 25% |
| Extension length | 50 mm |
| Total length in folded condition (Lmin) | 155 mm |
| Diameter | 20 mm |
| Mounting type | fixture H |
| Operating temperature | from -25°C to 65°C |
| Safeguards | limit switches |
| Leakage class | IP65 |
Dimensions of the LA10 500 N actuator.
