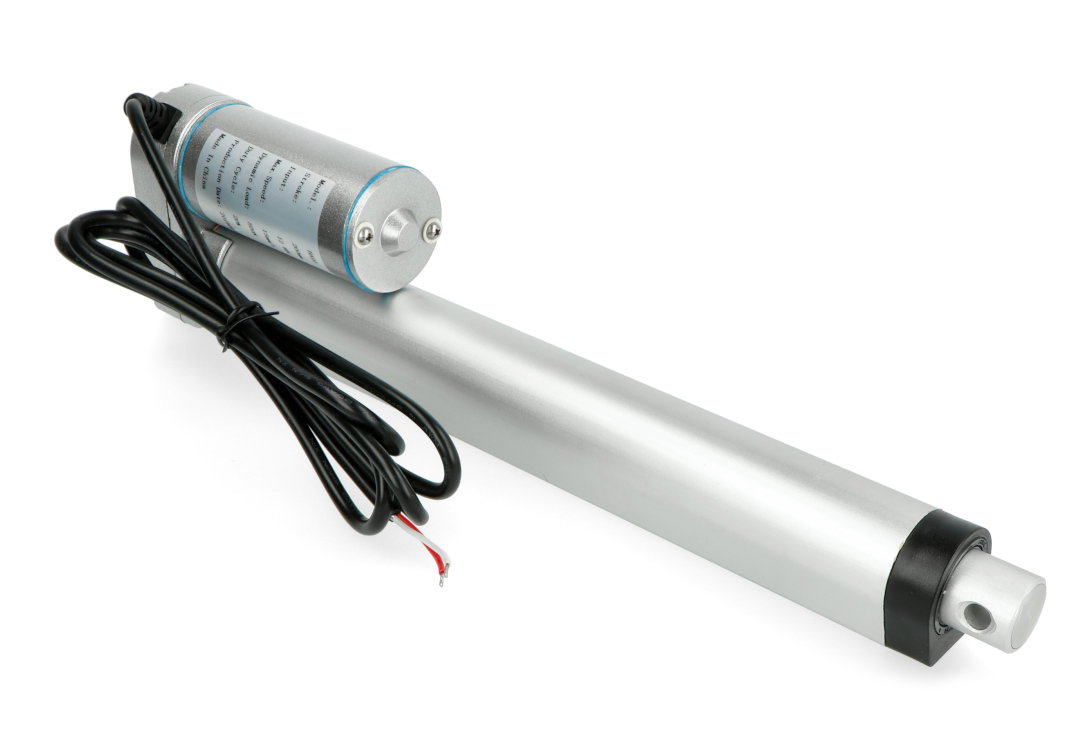

Linear Actuator LAD 500N 15mm/s 12V - 20cm stroke
Electric actuator with 50 kg (500 N) load capacity. It is designed for a 12-volt supply. The device operates at a speed of 15 mm/sec. Thanks to the use of metal gear modes it is characterized by high strength and precision. The actuator has a protection class IP 65. Its stroke length is 20 cm. The maximum current consumption of the actuator is 2A.
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of Elektrobim products. Elektrobim is a Polish company that designs, manufactures and distributes electric drives, linear actuators and industrial automation components. Elektrobim products are known for their build quality and reliability, which earns them the trust of customers across many industries. Botland carries a wide range of original Elektrobim products supporting advanced automation systems.
Product description: LAD 500 N 15 mm/s 12 V electric actuator - 20 cm extension
Electric actuator with50 kg(500 N)load capacity. It is designed for a12-voltsupply. The device operates ata speedof15 mm/sec. Thanks to the use ofmetalgearmodesit is characterized by high strength and precision. The actuator has aprotectionclassIP65. The length of itsextensionis20 cm.Limit switchesprotect against exceeding the extension range.
The actuator is controlled by means of buttons or relays. Thanks to its high tightness class, it can also be used in outdoor conditions. Its installation is facilitated by specially designedrear mounting. As in DCmotors,reversingthe polarity changes the direction of the extension.

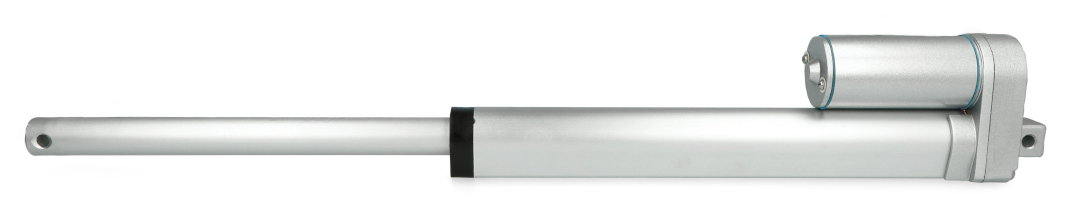

Electric actuator LAD 500 N 15 mm/sec 12 V - extension 20 cm.
Examples of application of the LAD 500 N electric linear actuator
- In industry and agriculture as a machine component
- The actuator can be used as an element in precision automation
- Home automation: opening and closing of doors, windows, gates
- In motor vehicles
- opening and closing the boot lid of off-road vehicles
- plough height adjustment in quads
- Photovoltaic installations
- Supporting the opening and closing of industrial valves
12V actuator specification
| Name | Parameter |
|---|---|
| Supply voltage | 12 V DC |
| Current consumption | up to 2 A |
| Speed | 15 mm/s |
| Maximum power | 500 N (50 kg) |
| Duty cycle | 20% |
| Extension length | 200 mm |
| Total length when folded in L1 | 310 mm |
| Diameter | 20 mm |
| Operating temperature | from -25°C to 65°C |
| Safeguards | Limit switches |
Useful links
| Name | Value |
|---|---|
| Voltage to | 12.0 V |
| Voltage from | 12.0 V |
| Torque | 50 kg*cm |
| Voltage nominal | 12 V |
| Motor - linear speed | 15 mm/s |
| Motor - eject | 20 cm |
| Width | 33.8 cm |
| Height | 5.5 cm |
| Depth | 9.3 cm |
| Weight | 1 kg |
