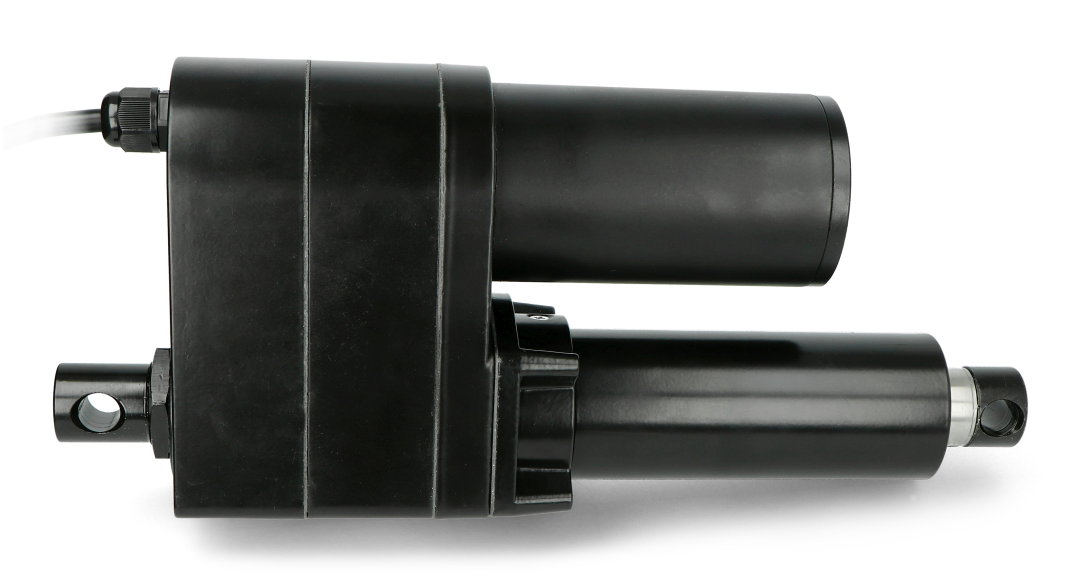

Linear Actuator LA50 7000N 5mm/s 12V - stroke 5cm

Index: WLS-17101 EAN: 5904422345303

Linear actuator supplied with 12 V. The maximum extension of the device is 5 cm, the protection against exceeding it is provided by two limit switches. The permissible load capacity of the unit is 700 kg (7000 N). The actuator has a protection class IP65, so it can be installed in humid areas.

Linear Actuator LA50 7000N 5mm/s 12V - stroke 5cm
€172.50
€140.24 tax excl.
Available
Shipping in 24 hours
PayPal payment
LA50 electric actuator - extension:
Manufacturer: Wallstech

Product description: LA50 7000 N 5 mm/s 12 V electric actuator - 5 cm extension

Linear actuatorsupplied with12 V.The maximum extension of the device is 5 cm, the protection against exceeding it is provided by twolimit switches. The permissible load capacity of the unit is 700kg (7000 N).The actuator has a protection class IP65, so it can be installed in humid areas.

Siłownik elektryczny LA50 7000N 5mm/s 12V - wysuw 5cm

LA50 7000 N 5 mm/s 12 V electric actuator - 5 cm extension.

Application of linear actuators

  • Agricultural and industrial machinery components
  • Closing and opening of industrial valves
  • Movable parts of motor vehicles (flaps and plows)
  • Industrial automation (as window and door tilt elements)
  • Adjustment of the position of photovoltaic panels

As withDC motors,the direction is changed by reversing the polarity.

LA50 linear actuator specifications

Name Parameter
Supply voltage 12 V DC
Speed 5 mm/s
Maximum power 7000 N (700 kg)
Duty cycle 25%
Extension length 50 mm
Total length when folded in 300 mm
Mounting type fixture H
Operating temperature from -25°C to 65°C
Safeguards limit switches
Leakage class IP65

Wymiary siłownika LA10

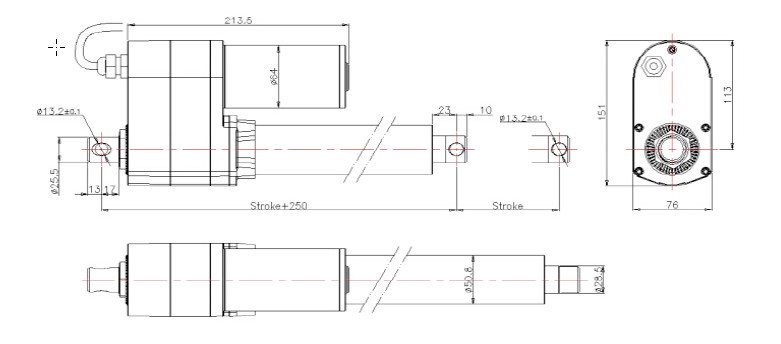

Dimensions of the LA50 actuator.

Voltage to 12.0 V
Voltage from 12.0 V
Torque 700 kg*cm
Voltage nominal 12 V
Motor - eject 5 cm
Package width 20 cm
Package height 12.5 cm
Package depth 43 cm
Package weight 4.374 kg
