Linear Actuator LD1 188N 5mm/s 12V - 3cm stroke
A small electric actuator. Powered by 12 V. Operates at 5 mm/sec, allowing lift up to 18.8 kg (188 N). It has a protection class of IP54. The actuator tube is made of aluminium. Clamping brackets are included.
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of Elektrobim products. Elektrobim is a Polish company that designs, manufactures and distributes electric drives, linear actuators and industrial automation components. Elektrobim products are known for their build quality and reliability, which earns them the trust of customers across many industries. Botland carries a wide range of original Elektrobim products supporting advanced automation systems.
Product description: electric actuator LD1 188 N 5 mm/sec 12 V - 3 cm extension
A small electric actuator. Powered by 12 V. Operates at 5 mm/sec, allowing lift up to 18.8 kg (188 N). It has a protection class of IP54. The actuator tube is made of aluminium. Clamping brackets are included.
Other linear actuators are also available.

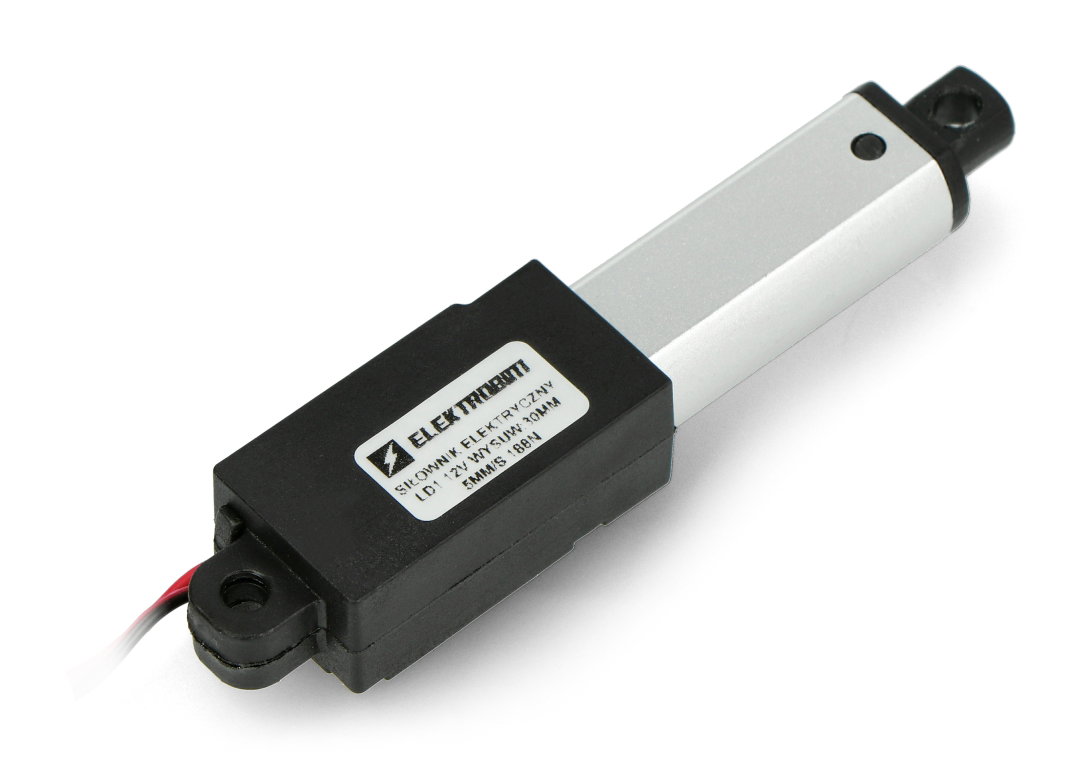

Electric actuator LD1 188 N 5 mm/sec 12 V.

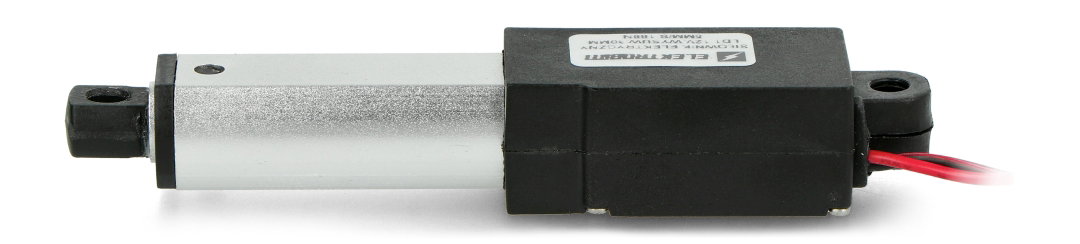

Electric actuator LD1 188 N 5 mm/s 12 V - 3 cm extension.
Application of LD1 actuator
- Medical and rehabilitation equipment
- In robotics, among other things, to control a robot's arm
- In motor vehicles, the construction of central locks and small flaps
- As elements of locks and locks
- In modelling: aircraft models and models
- In industrial mechanics
- In home automation
Specification of the 12 V linear actuator LD1 188 N 5 mm/sec.
| Name | Parameter |
|---|---|
| Supply voltage | 12 V DC |
| Speed | 5 mm/s |
| Maximum power | 188 N (18.8 kg) |
| Duty cycle | 10% |
| Material of the actuator tube | Aluminium |
| Extension length | 30 mm |
| Overall length in assembled conditionL(min) | 93 mm |
| Leakage class | IP54 |
| Operating temperature | From -25°C to 65°C |
| Sound level during operation | Up to 55 dB |
Attention! The actuator has no limit switches. It shall be incorporated in a control system with autonomous external disconnection ends or the control system shall be equipped with an adjustable overload switch. |
Useful links
| Name | Value |
|---|---|
| Voltage to | 12.0 V |
| Voltage from | 12.0 V |
| Torque | 18.7 kg*cm |
| Voltage nominal | 12 V |
| Width | 15.3 cm |
| Height | 3 cm |
| Depth | 3 cm |
| Weight | 0.05 kg |
