Product description: electric actuator LA10 500N 13mm/sec 12V - 10cm extension
Electriclinearactuatorwith500 N(50 kg)lifting capacity.Powered by 12 V. The actuator'sextensionis 10 cm.It operates at 13 mm/sec. The device has aprotectionclassIP65. Thanks to built-inlimit switches LA10, it is protected against exceeding the maximum extension range.
|
As withDC motors,the direction is changed by reversing the polarity. |

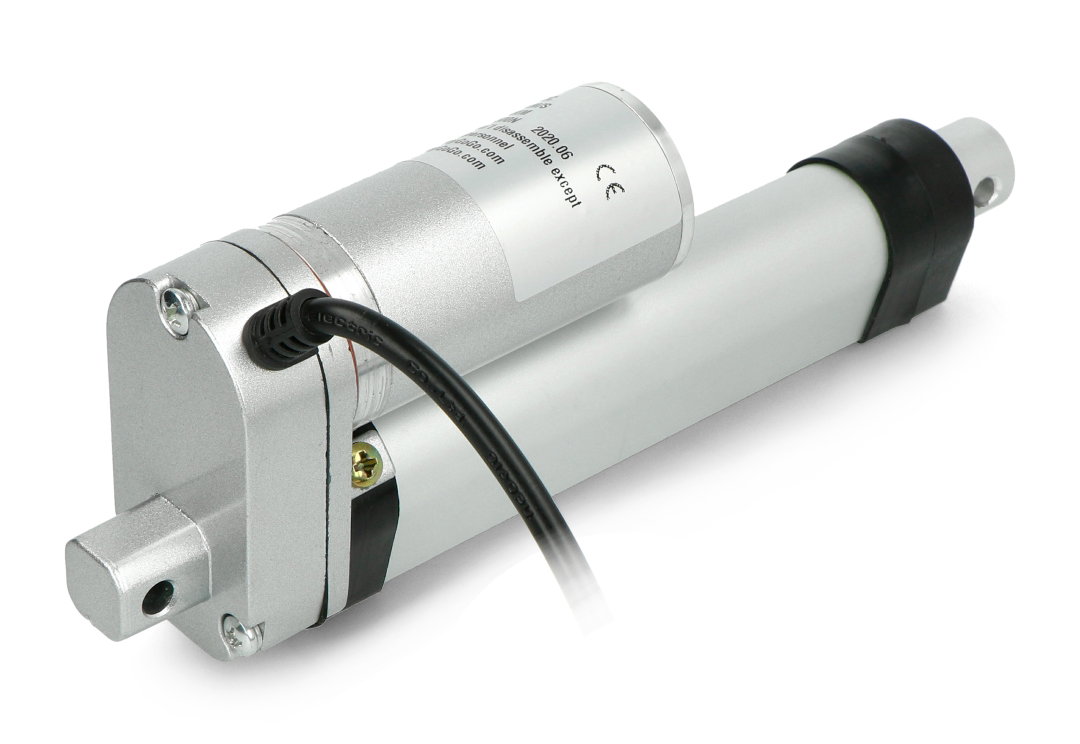

LA10 500 N 13 mm/sec 12 V electric actuator - 10 cm extension.
Example application of the LA10 500N linear actuator
- Industrial and agricultural machinery components
- In home automation, as an element to regulate tilting of doors, windows, gates
- Position control of solar panels in photovoltaic installations
- Precision automation components
- In the automotive industry for height adjustment of, among others, the plough in quads

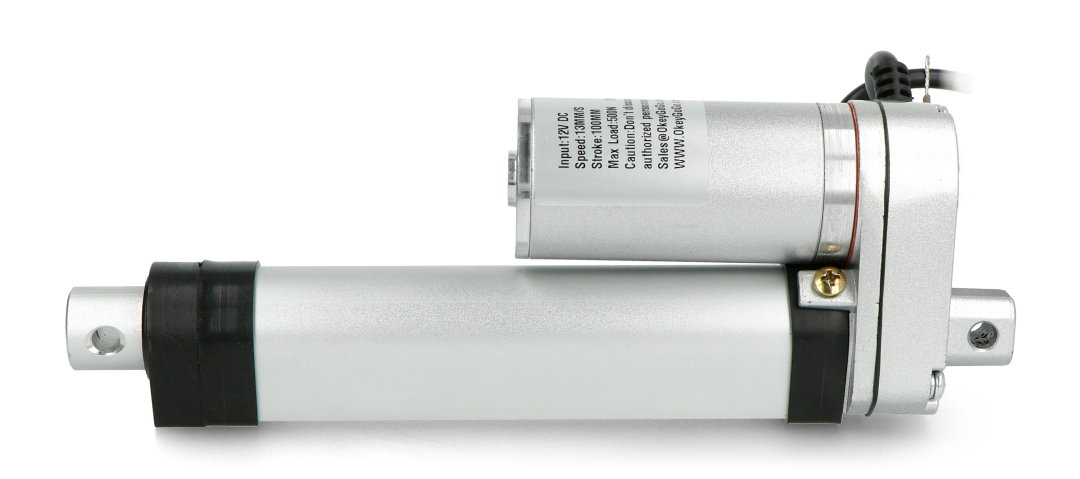

Electric actuator LA10 500 N 13 mm/sec 12 V. Other types oflinearactuators are also available.
LA10 12 V electric actuator specification
| Name | Parameter |
|---|---|
| Supply voltage | 12 V DC |
| Speed | 13 mm/s |
| Maximum power | 500 N (50 kg) |
| Duty cycle | 25% |
| Extension length S | 100 mm |
| Overall length in assembled state Lmin | 209 mm |
| Diameter | 20 mm |
| Safeguards | Limit switches |

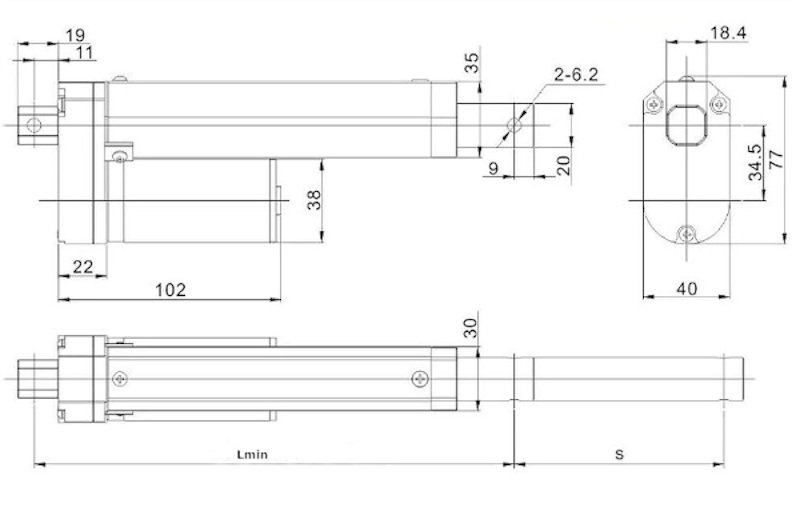

Dimensions of LA10 actuator - 10 cm extension.
