Product description: electric actuator LD1 6.4 N 150 mm/s 12 V - 10 cm extension
Electric actuator with6.4 N(0.64 kg) lifting capacity, operating at150 mm/sec.The unit is powered by12 V. It has aprotectionclassIP54. Thanks to the use of metal gear modes, the actuator is characterized by high precision and long service life. The actuatorsare equipped with limit switches.
Electric actuator LD1 6,4 N 150 mm/sec 12 V. Otherlinearactuators are also available.
Application of the LD1 electric linear actuator
- In motor vehicles, when installing central locks and small flaps
- Aircraft modeling
- In automation, when assembling moving parts of robots
- Lock slider element
- Industrial and precision mechanics
- As part of a smart home, for opening small windows
- Rehabilitation equipment
Electric actuator LD1 6.4 N 150 mm/s 12 V - 10 cm extension.
Specifications 12 V LD1 electric actuator 6,4 N 150 mm/sec.
| Name | Parameter |
|---|---|
| Supply voltage | 12 V DC |
| Speed | 150 mm/s |
| Maximum power | 6.4 N (0.64 kg) |
| Duty cycle | 10% |
| Material of the actuator tube | Aluminium |
| Extension length | 100 mm |
| Overall length in assembled condition L(min) | 163 mm |
| Leakage class | IP54 |
| Operating temperature | From -25°C to 65°C |
| Sound level during operation | Up to 55 dB |

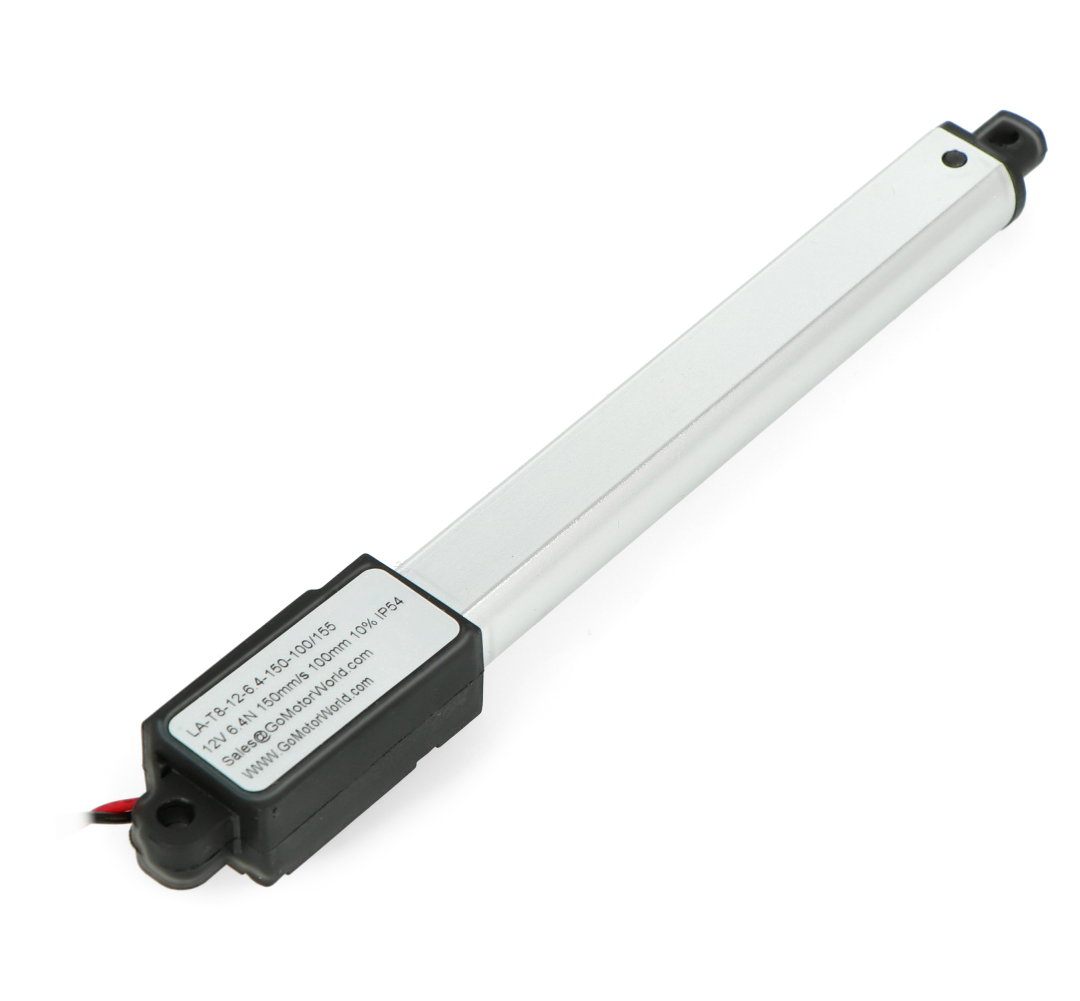

Electric actuator LD1.
