Product description: Electric actuator LA10 500 N 13 mm/s 12 V - stroke 15 cm
This 12V linear actuator has a maximum stroke of 15 cm . The device has a maximum load capacity of 50 kg (500 N) . The actuator has a robust metal housing that provides protection against water and dust. Two limit switches prevent the actuator from exceeding its stroke limit.

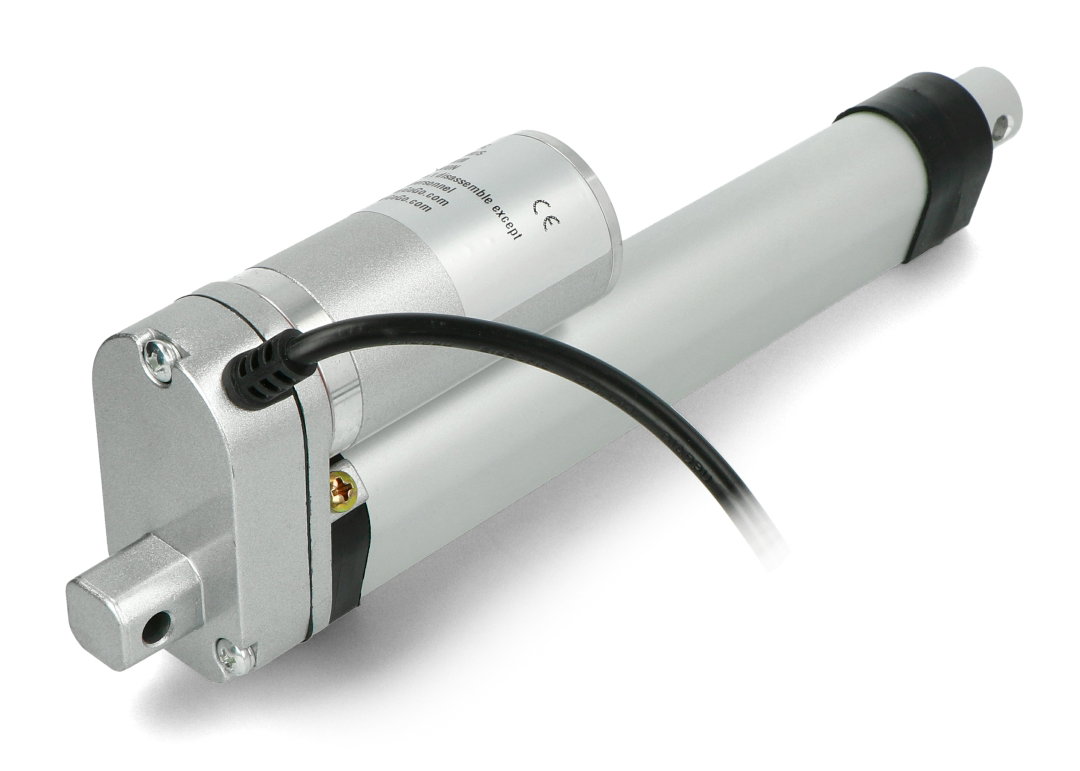

Electric actuator LA10 500 N 13 mm/s 12 V - extension 15 cm .

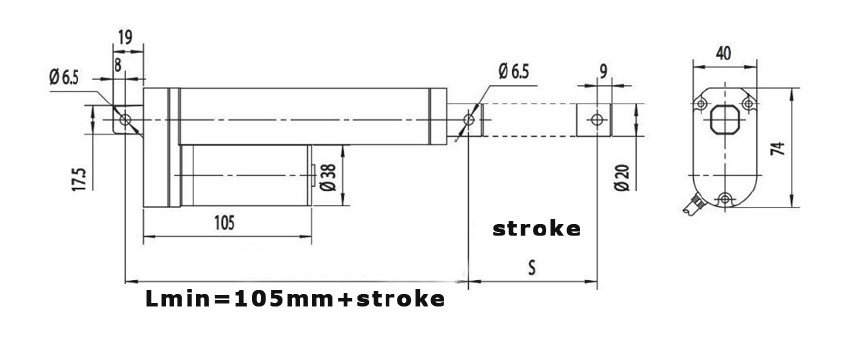

Dimensions of the LA10 500 N actuator .
Application of linear actuators
Structural elements of agricultural and industrial machines
- Home automation
- Adjusting flaps and plows on off-road vehicles and quads
- Industrial valve closing elements
- Photovoltaics - adjusting the tilt of the solar panel
As in DC motors, the change of direction is achieved by reversing the polarity . |
Specifications of the LA10 500 N linear actuator
| Name | Parameter |
|---|---|
| Supply voltage | 12V DC |
| Speed | 13 mm/s |
| Power consumption | 4 A |
| Maximum strength | 500 N (50 kg) |
| Work cycle | 25% |
| Extension length | 150 mm |
| Total length when folded Lmin | 260 mm |
| Diameter | 20 mm |
| Mounting type | H-mount |
| Operating temperature | from -25°C to 65°C |
| Security | limit switches |
| Tightness class | IP65 |
