Product description: Electric bed actuator BED-1 2x 4500 N 24 V 5.6 mm/s - stroke 87 mm / 69 mm
The BED-1 electric actuator by Elektrobim is a modern solution for automatic adjustment of rehabilitation, hospital and home beds . Equipped with a double 24 V DC motor , it has a lifting capacity of 2x 4500 N and allows independent control of the headrest (87 mm stroke) and footrest (69 mm stroke). The movement speed of 5.6 mm / s ensures smooth adjustment, and the torque of 0.3 Nm guarantees stable operation. The actuator has an emergency power supply function - in the event of a power outage, it is possible to fold the frame using two 9 V batteries. It is controlled by a wired remote control with three sections : adjustment of the headrest, footrest or both at the same time. The mounting spacing of 581 mm ensures compatibility with most frames. The actuator meets safety standards, has an IP22 degree of protection and a duty cycle of 10%. Thanks to the high quality of workmanship and stable construction, BED-1 will work perfectly in both medical facilities and home conditions.

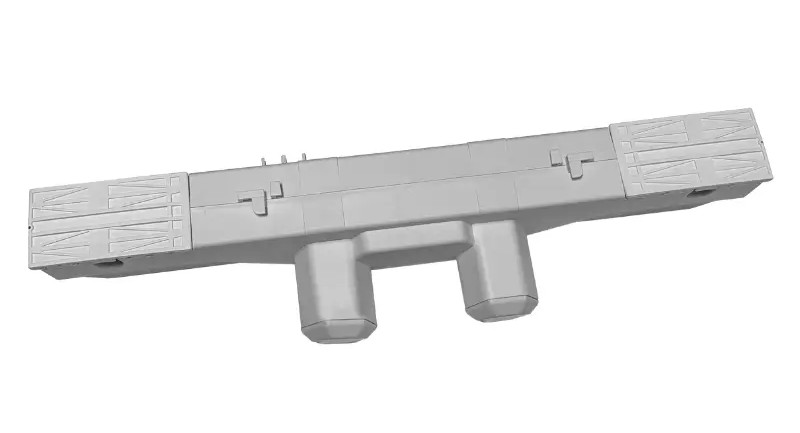

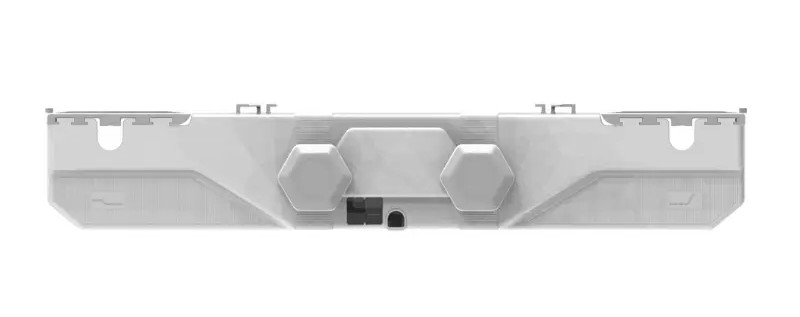

Electric bed actuator BED-1 2x 4500 N 24 V 5.6 mm/s - stroke 87 mm / 69 mm.

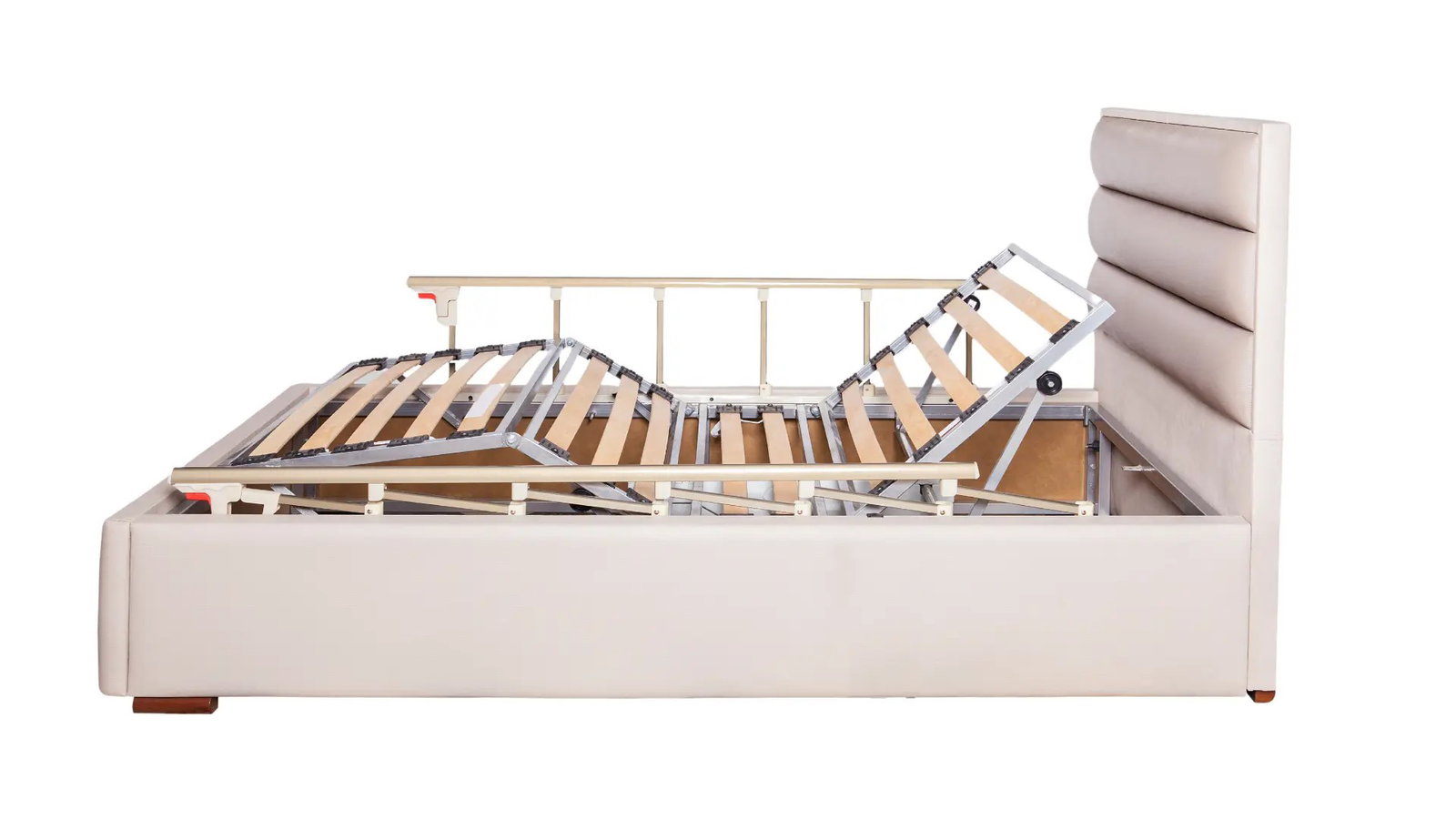

The dual motor allows you to adjust the height of the headrest and footrest.
Main features of the actuator
- Dual 24V DC motor - allows simultaneous or independent adjustment of the headrest and footrest
- Lifting capacity 2× 4500 N - high lifting force ensures stability and smooth operation
- Quiet and stable operation - noise level below 55 dB
- Movement speed 5.6 mm/s - optimal speed of bed position adjustment
- Emergency power supply 2x 9 V - the bed can be folded in the event of a power failure
- Wired remote control - intuitive control of three bed sections
- Easy installation - compatible with standard frames (mounting spacing 581 mm)
- Thermal protection - built-in 30V 6A thermistor protects against overload
Connection and control
The BED-1 actuator requires installation on functional bed frames, adapted to electric drives . The actuator should not be installed on frames that are damaged, uneven or move with excessive resistance. After mounting the actuator, the factory power cable should be connected to a stable 230 V AC power source. The actuator is controlled by a wired remote control , which offers:
- Top row of buttons - raising and lowering the headrest
- Middle row of buttons - footrest height adjustment
- Bottom row of buttons - control both sections simultaneously
The pilot cable should be attached to the hooks on the actuator housing, to prevent accidental pulling out of the plug.

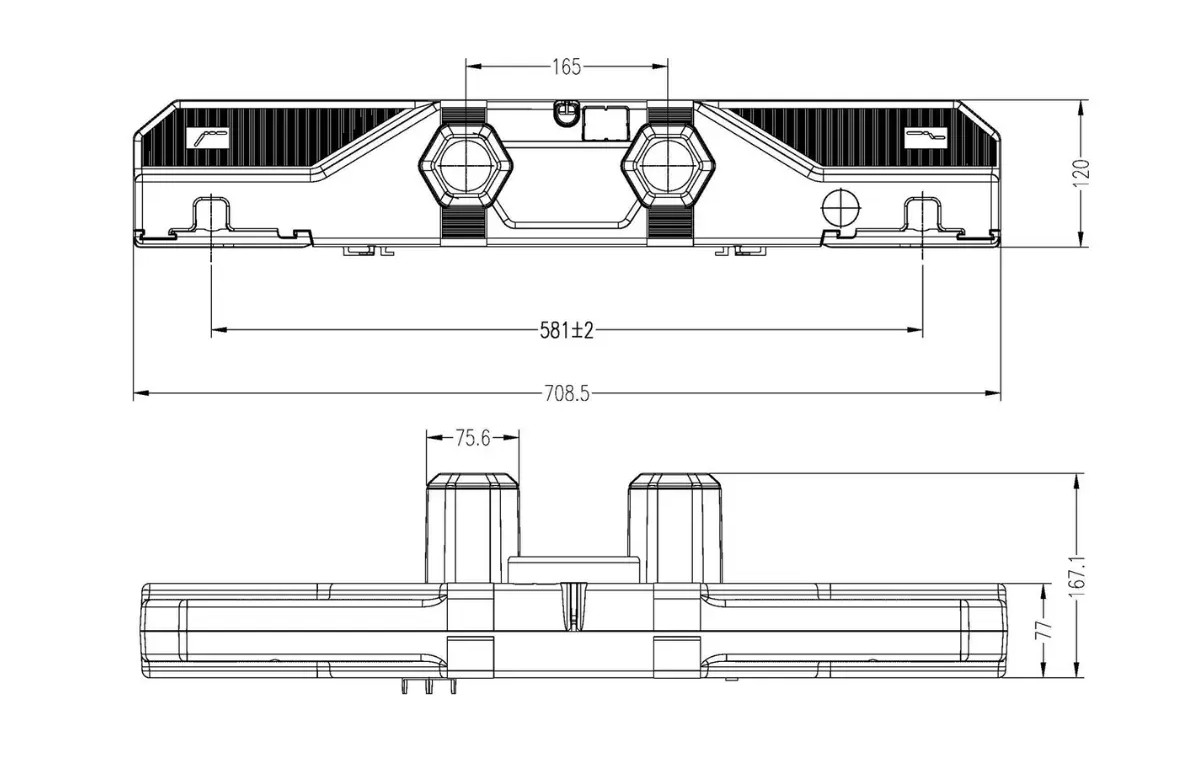

Actuator dimensions.
Technical specification of the actuator
- Supply voltage: 230 V AC, 50 Hz
- Motor: 24V DC
- Maximum load capacity: 2x 4500 N (2x 450 kg)
- Nominal current: ≤ 3 A
- Noise level: ≤ 55 db
- Torque: 0.3 Nm (≈ 3.06 kg*cm)
- No-load speed: 5.6 mm/s
- Duty cycle: 10% (1 min of work per 9 min break)
- Emergency power supply: 2x 9V battery (only for folding the frame)
- Actuator stroke: headrest: 87 mm / footrest: 69 mm
- Power cord length: 4 m
- Thermal protection: 30V 6A thermistor
- Degree of protection: IP22
- Operating temperature: -5°C to 45°C
- Mounting spacing: 581 mm
