Linear Actuator LA10P 500N 13mm/s 12V with potentiometer - stroke 10cm

Index: WLS-15399 EAN: 5904422343330

12 V electric actuator with potentiometer. Extension is 10 cm and maximum load capacity 500 N. The actuator operates at 13 mm/sec. It has a protection class IP65.

Linear Actuator LA10P 500N 13mm/s 12V with potentiometer - stroke 10cm
€94.90
€77.15 tax excl.
Available
Shipping in 24 hours
PayPal payment
LA10P electric actuator - extension:
Manufacturer: Wallstech

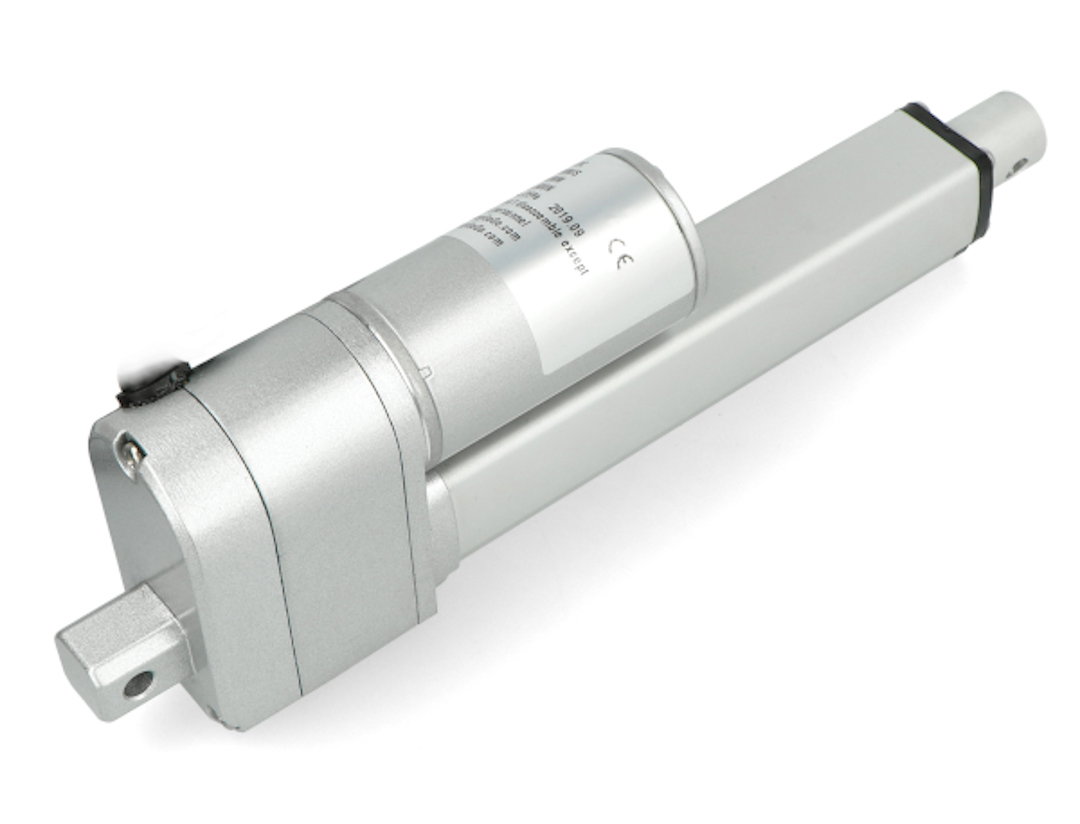

Product description: electric actuator with potentiometer LA10P 500 N 13 mm/sec 12 V - 10 cm extension

Powered by 12 V electric actuator witha potentiometer,which enables position reading in the form of analogue voltage. The device has a 10 cm extension and a maximum load capacityof 500 N.The actuator operates at13 mm/sec. The actuator operates at 13 mm/sec. It has IP65 protection class. LA10P is protected against exceeding the maximum extension rangewith limit switches.

As inDC motors, the direction is changed by reversing the polarity.

Siłownik elektryczny LA10 1000 N 10 mm/s 12 V - wysuw 10 cm

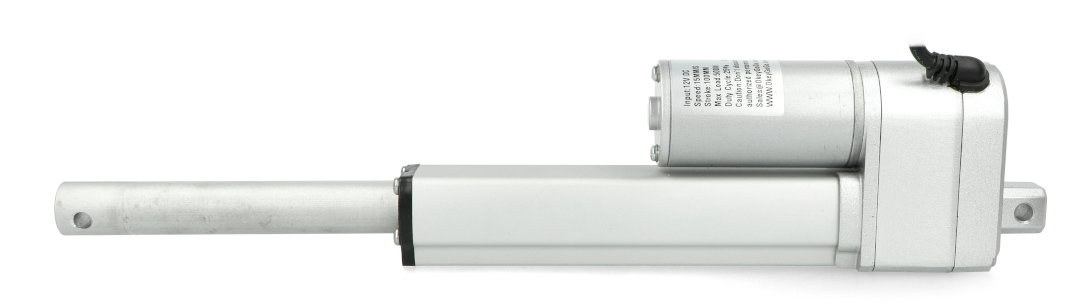

Electric actuator LA10P 500 N 13 mm/sec 12 V - 10 cm extension.

Application of the LA10P 500 N linear actuator

  • Industrial automation elements
  • Motor vehicles, e.g. as a hatch height adjustment
  • Home automation, as window and door tilt adjuster
  • Photovoltaic installations
  • Agricultural and industrial machinery components

Siłownik elektryczny LA10 1000 N 10 mm/s 12 V

Electric actuator LA10P 500 N 13 mm/sec 12 V. Other types oflinearactuators are also available.

LA10P 12 V electric actuator specifications

Name Parameter
Supply voltage 12 V DC
Speed 13 mm/s
Maximum power 500 N (50 kg)
Duty cycle 25%
Extension length S 100 mm
Overall length in assembled state Lmin 246 mm
Diameter 20 mm
Safeguards Limit switches

Wymiary siłownika LA10P z potencjometrem

Dimensions of LA10P actuator - 10 cm extension.

Scheme of potentiometer outputs

The potentiometer used in the LA10P hasthree outputs, which must be connected according to the following diagram.

The outputs of the potentiometer in the LA10P actuator.

Voltage to 12.0 V
Voltage from 12.0 V
Torque 50 kg*cm
Voltage nominal 12 V
Motor - eject 10 cm
Package width 34.5 cm
Package height 9.2 cm
Package depth 5.3 cm
Package weight 1.009 kg
