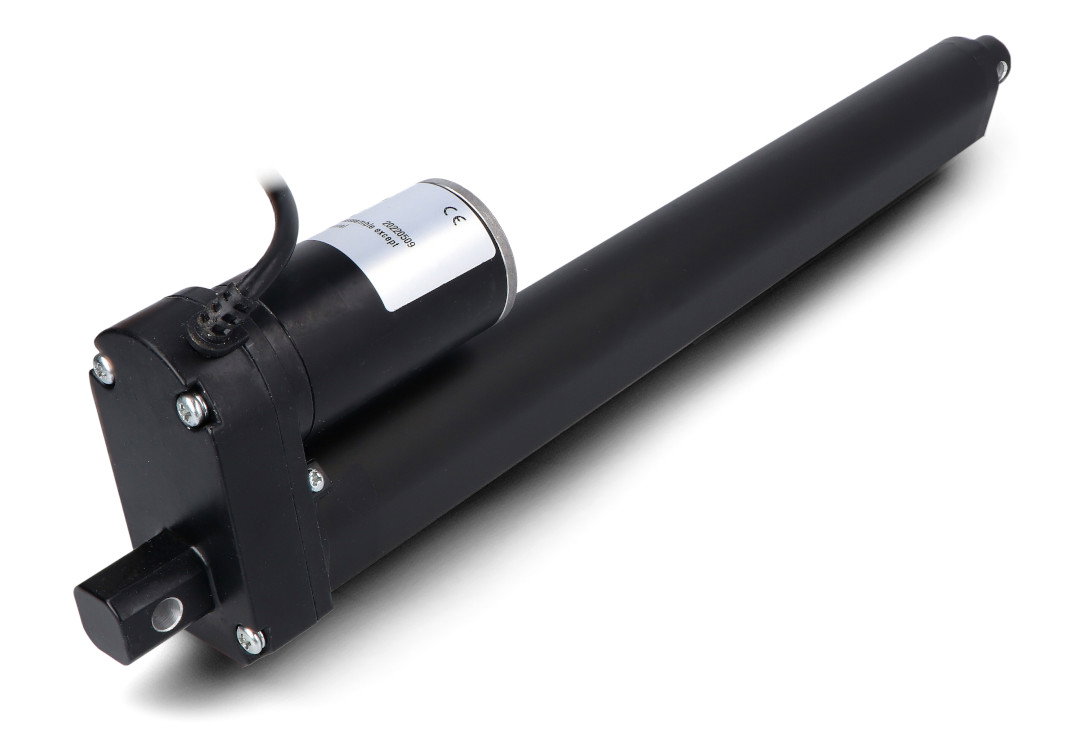

Linear Actuator LA-T5 100N 110m/s 12 V - stroke 30cm
Linear actuator. The product has a protection class IP65, so it can be installed in places with high humidity and dust. The maximum extension of the actuator is 30 cm. It is protected by two limit switches. The permissible load capacity is 10 kg (100 N). The device is powered by 12 V.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: LA-T5 electric actuator 100 N 110 m/s 12 V - 30 cm extension
Linear actuator. The product has a protection class IP65, so it can be installed in places with high humidity and dust. The maximum extension of the actuator is 30 cm. It is protected by twolimit switches. The permissible load capacity is10 kg (100 N). The device is powered by12 V.
Electric actuator LA-T5P 100 N 110 m/s 12 V - extension 30 cm
Example application of linear actuators
- Movable parts in motor vehicles (ploughs, flaps)
- Adjustment of the tilt angle of the solar panels
- Agricultural and industrial machinery
- Industrial automation components
- Application in home automation: elements for automation, e.g. tilting doors and windows
As inDC motors,the direction is changed by reversing the polarity. |
LA-T5P linear actuator specifications
| Name | Parameter |
|---|---|
| Supply voltage | 12 V DC |
| Speed | 110 mm/s |
| Maximum power | 100 N (10 kg) |
| Duty cycle | 25% |
| Extension length | 300 mm |
| Total length when folded in | 455 mm |
| Operating temperature | from -25°C to 65°C |
| Safeguards | Limit switches |
| Leakage class | IP65 |
Useful links
| Name | Value |
|---|---|
| Voltage to | 12.0 V |
| Voltage from | 12.0 V |
| Torque | 10,0 kg*cm |
| Voltage nominal | 12 V |
| Motor - eject | 30 cm |
| Width | 12 cm |
| Height | 7 cm |
| Depth | 50 cm |
| Weight | 1.838 kg |
