Product description: Electric actuator LA T5 3500 N 3 m/s 12 in - 5 cm slide out

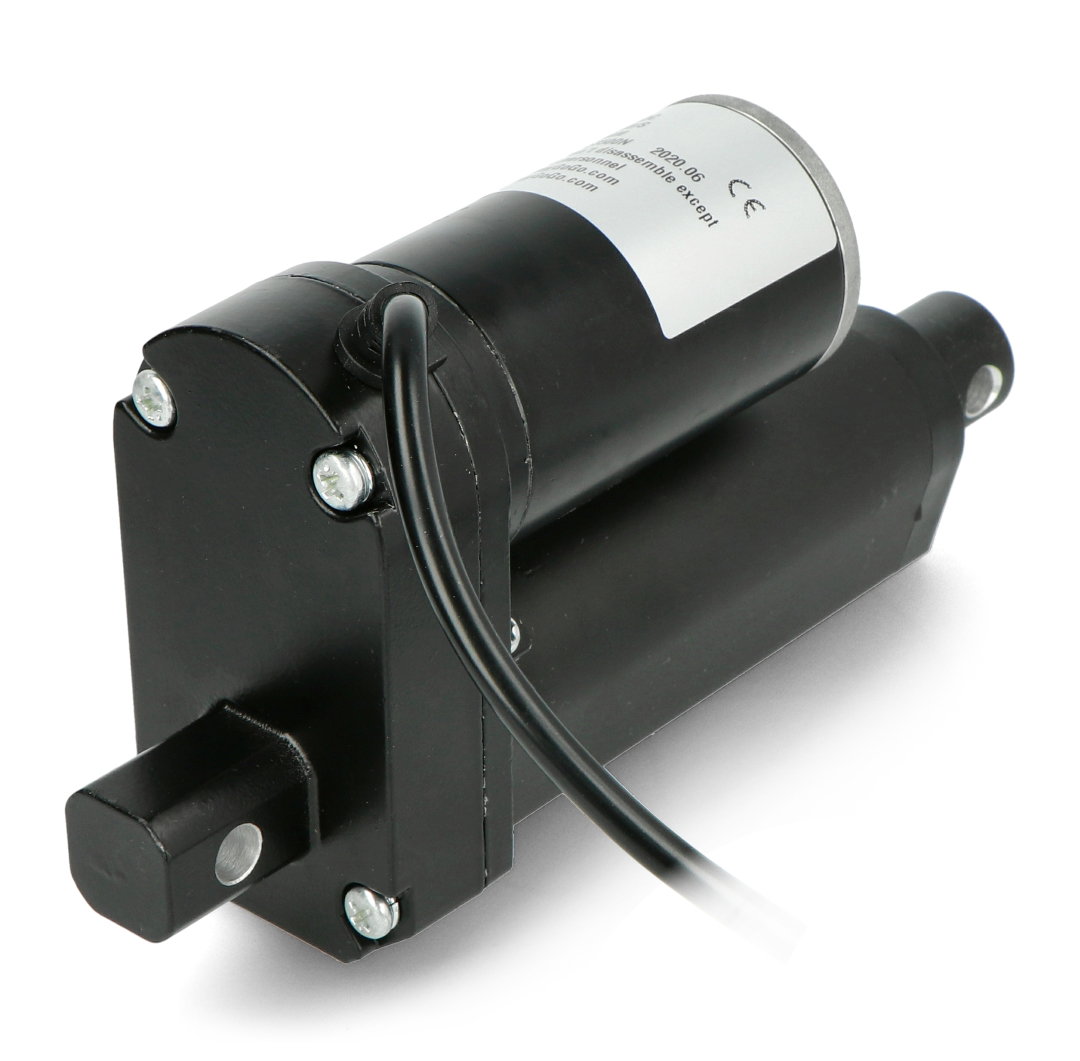

Linear actuator powered with the voltage of 12 V with a maximum load capacity of 350 kgs (3500 N). The maximum slide out of the device is 50 mm. Actuator has a metal housing and IP65 protection class. Two limit switches are the protection from the maximum slide out.
Electric actuator LA-T5 3500 N 3 m/s 12 in - 5 cm slide out.
The use of linear actuators
- Elements of industrial equipment
- Components of agricultural machinery
- Tilt regulation of solar panels in photovoltaics
- Mechanical vehicles
- Industrial automation
- The control of the closing and the opening of industrial valves
|
Similarly as inthe DC motors,the direction change is due to the change in polarity. |
Specification of linear actuator LA-T5 3500 N
| Name | Parameter |
|---|---|
| Voltage | 12 V DC |
| Speed | 3 mm/sec |
| Max power | 3500 N (350 kg) |
| Work cycle | 25% |
| The length of the slide out | 50 mm |
| Overall length when folded | 120 mm |
| Operating temperature | -25°C to 65°C |
| Securities | Limit switches |
The dimensions of the linear actuator LA-T5.
