Product description: LA50P 7000 N 5 mm/sec 12 V electric actuator with potentiometer - 5 cm extension
12 Vlinear actuatorwith built-inpotentiometer.The unit has a 50 mm extension and a maximum load of 700kg (7000 N).The LA50P has an IP65 rating, which means it can be used in wet conditions. Twolimit switchesprovide protection against exceeding the maximum extension range.

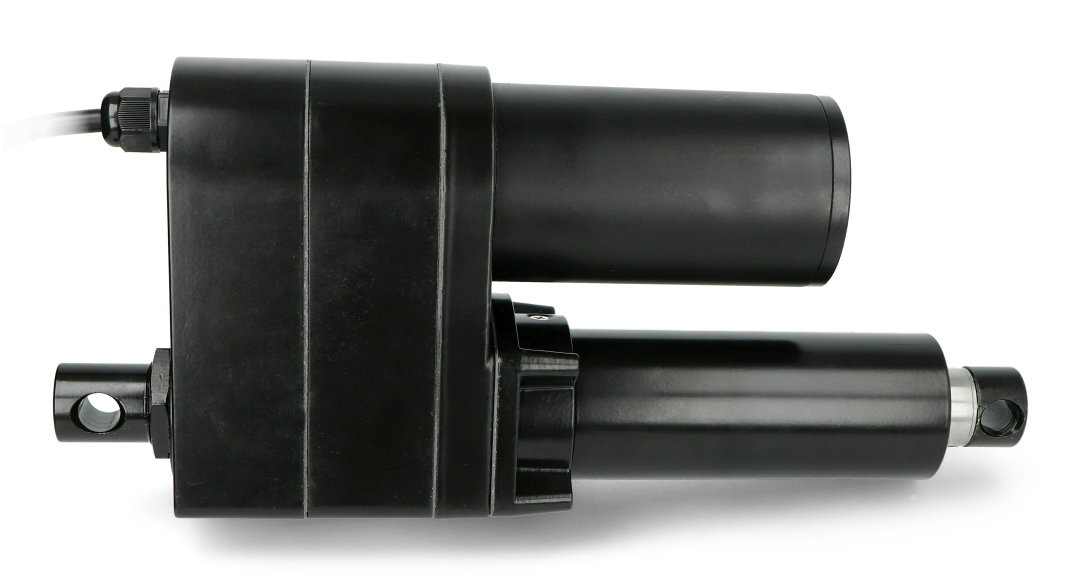

LA50P 7000 N 5 mm/s 12 V electric actuator - 5 cm extension.
Application of linear actuators
- Lift of flaps in motor vehicles
- Components of industrial and agricultural machinery
- Domestic and industrial automation components
- Opening and closing of valves
- Photovoltaic components
|
As inDC motors,the direction is changed by reversing the polarity. |
Linear actuator specification LA50P
| Name | Parameter |
|---|---|
| Supply voltage | 12 V DC |
| Speed | 5 mm/s |
| Maximum power | 7000 N (700 kg) |
| Duty cycle | 25% |
| Extension length | 50 mm |
| Total length when folded in | 300 mm |
| Diameter | 20 mm |
| Mounting type | fixture H |
| Operating temperature | from -25°C to 65°C |
| Safeguards | limit switches |
| Leakage class | IP65 |
Dimensions of the LA50P.
